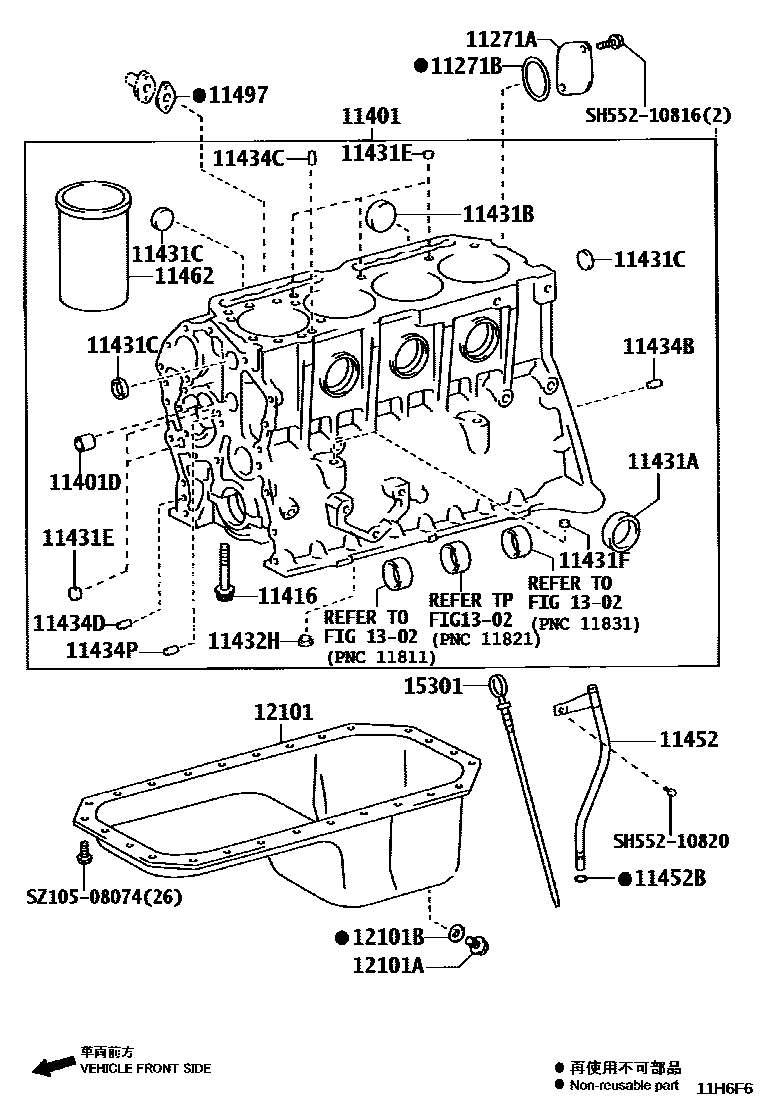

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11271ACOVER, CYLINDER BLOCK, REAR

mainS114991050iN04C..XZU710,720,730..EUR201107-202005

mainS174582830iN04C..XZU710,720..MTM..GCC201107-201505

11271BRING, O(FOR CYLINDER BLOCK REAR PLATE)

mainSN73210693iN04C..XZU710201107-201201

subSN741-10693

mainSN74110693iN04C..XZU710..CBU201201-202005

11401BLOCK SUB-ASSY, CYLINDER

main11410-78460iN04C..XZU710,720..MTM..GCC201901-201905

sub11410-78461

sub11701-78170

sub15703-78060

main11410-78461iN04C..XZU710,720..GEN201905-202309

sub11410-78462

main11410-78462iN04C..XZU710,720..GEN202310

main11410-E0411iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-201811

sub11410-E0412

main11410-E0412iW04D..WU710..65T;W04D..WU710..RHD..75T201812-201901

sub11410-E0413

sub11115-78100

main11410-E0413iW04D..WU710..65T;W04D..WU710..RHD..75T201901-201905

sub11410-E0414

sub11701-78170

sub15703-78060

main11410-E0414iW04D..WU710..65T;W04D..WU710..RHD..75T201905-201907

sub11410-E0G60

main11410-E0423iW04D..WU710,720..LHD..(75T,85T)201107-201811

sub11410-E0424

main11410-E0424iW04D..WU710,720..LHD..(75T,85T)201812-201901

sub11410-E0425

sub11115-78100

main11410-E0425iW04D..WU710,720..LHD..(75T,85T)201901-201905

sub11410-E0426

sub11701-78170

sub15703-78060

main11410-E0426iW04D..WU710,720..LHD..(75T,85T)201905-202002

main11410-E0D71iN04C..XZU710..CBU201107-201811

sub11410-E0D72

main11410-E0D72iN04C..XZU710,720..MTM..GCC201812-201901

sub11410-78460

sub11115-78100

main11410-E0G60iW04D..WU710..65T;W04D..WU710..RHD..75T201908-202005

main11410-E0J40iW04D..WU710,720..LHD..(75T,85T)202003-202005

11401DBUSH(FOR OIL PUMP COVER)

main15117-E0030iW04D..WU700,710,720201107-202005

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

mainS115211410iW04D..WU700,710,720201107-202005

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

mainSN41105016iN04C..XZU710,720..MTM..GCC201107-202005

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

mainSN41104016iN04C..XZU710..CBU201107-202310

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

mainSN41103616iN04C..XZU710..CBU201107-202005

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

mainSN41101712iW04D..WU710,720201107-202005

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

mainSZ33114001iN04C..XZU710,720..MTM..GCC201107-202005

11432HPLUG, W/HEAD TAPER SCREW, NO.5

mainSN41102416iN04C..XZU710,720..GEN201812-202005

NO.2:REFER ILLUST.

mainSN49102109iW04D..WU700,710,720201107-202005

mainSN49102109iN04C..XZU710..CBU201107-201812

NO.1 & NO.2:REF ILL.

mainSN49102109iN04C..XZU710,720..MTM..GCC201812-202005

NO.1:REFER ILLUST.

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

mainSM21201224iN04C..XZU710,720..GEN201107-202005

L=24,OD=12

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

mainSZ25008007iN04C..XZU710..CBU201107-202005

L=16,OD=8

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

mainSZ25008008iW04D..WU700,710,720201107-202005

L=24,OD=8

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

mainSM21200510iN04C..XZU710..CBU201107-202005

L=10,OD=5

11452GUIDE, OIL LEVEL GAGE

main11409-E0061iW04D..WU710,720..LHD..(75T,85T)201107-202005

mainS121023920iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

mainSZ30110025iW04D..WU700,710,720201107-202005

11462LINER, CYLINDER

main11462-78030iN04C..XZU710,720..MTM..GCC201901-202005

MARK A

main11462-E0170iN04C..XZU710,720..MTM..GCC201705-202005

MARK A

main11463-78030iW04D..WU710..65T;W04D..WU710..RHD..75T201901-202005

MARK B

main11463-E0140iW04D..WU710,720201705-202005

MARK B

main11464-78030iW04D..WU710,720..LHD..(75T,85T)201901-202005

MARK C

main11464-E0140iW04D..WU710..65T;W04D..WU710..RHD..75T201705-202005

MARK C

mainS114671762iW04D..WU700,710,720201107-201704

MARK A

sub11462-E0170

mainS114671772iW04D..WU700,710,720201107-201704

MARK B

sub11463-E0140

mainS114671792iN04C..XZU710,720..MTM..GCC201107-201704

MARK C

sub11464-E0140

11497GASKET, CYLINDER BLOCK OIL HOLE

mainS241351161iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

12101PAN SUB-ASSY, OIL

main12101-E0450iN04C..XZU710,720..GEN201107-202005

main12111-E0630iW04D..WU700,710,720201204-202005

mainS121112730iW04D..WU700,710,720201107-201204

sub12111-E0630

12101APLUG(FOR OIL PAN DRAIN)

mainSZ34118014iN04C..XZU710..CBU201107-202005

12101BGASKET(FOR OIL PAN DRAIN PLUG)

mainSZ43018009iN04C..XZU710..CBU201107-202005

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-78251iN04C..XZU710..GCC..IV3201108-201509

sub15301-78252

main15301-78252iN04C..XZU710..DCB201510

main15301-78351iN04C..XZU710,720..GEN201911

main15301-E0140iN04C..XZU710,720..SCB..MTM..GCC201107-201505

main15301-E0320iW04D..WU710,720..LHD..(75T,85T)201107-202005

main15301-E0A70iN04C..XZU710,720,730..EUR201306-201512

mainS153013262iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SZ10508074

mainSZ105-08074

27 parts on this diagram · 4 diagrams in section
