HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

1603

8712

87245AHOSE, HEATER WATER, INLET A

main87245-37A10iXZU415,425,435200608-200708

sub87245-37A11

main87245-3V180iBU410,420200411-200701

main99556-30500iXZU412,422..5F..TD;WU410,XZU404,414,424,434..ARL,GCC,GEN200212-200802

*H,L=320

main99556-30500iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

*H,L=450

87245BHOSE, HEATER WATER, INLET B

main87245-37A10iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

sub87245-37A11

main87245-37A20iXZU415,425,435200608-200609

main87245-37C60iWU412,42#;WU410..65T;WU410..75T..GEN200610-201106

main87245-3V150iWU410,420,XZU420,430..SA200212-200802

main99556-30500iXZU415,425,435200610-200708

*H,L=450

main99556-31000iXZU412,422..6F200112-200802

*H,L=860

87246AHOSE, HEATER WATER, OUTLET A

main87245-3V150iXZU412,422..DSL200212-200802

main87246-37480iXZU415,425,435200608-200609

main99556-30500iXZU415,425,435200610-201208

L=500

main99556-31000iXZU414,424,434..EUR200112-200802

*H,L=860

87246BHOSE, HEATER WATER, OUTLET B

main87245-3V190iBU410,420200411-200701

main87246-37030iXZU412,422..DSL200302-200802

main87246-37280iWU410,420..SA200212-200802

main87246-37441iXZU412,422..5F..TD;XZU404,414,424,434..ARL,GEN200212-200802

main87246-37470iXZU415,425,435200608-200609

main87246-37660iWU41#,422..GCC,GEN200610-200612

L=440

sub87246-37661

main87246-37661iWU412,42#;WU410..65T;WU410..75T..GEN200701-201106

main87246-37680iXZU415,425,435200610-201208

main99556-30500iXZU404,414,424,434200110-200212

*H,L=330

87248APIPE, HEATER WATER INLET, A

main87245-3V200iBU410,420200411-200701

main87248-37300iWU410,420,XZU420,430..SA200212-200802

main87248-37420iXZU412,422..6F200112-200802

main87248-37540iXZU413,423200608-201006

sub87248-37B90

main87248-37580iWU410..GCC,GEN200610-200705

sub87248-37581

main87248-37581iWU420;WU410..65T;WU410..75T..GEN200706-201106

main87248-37B90iXZU413,423200906-201005

sub87248-37B91

main87248-37B91iWU412,422,XZU41#,42#,439201006-201007

sub87248-37B92

main87248-37B92iWU412,422,XZU41#,42#,439201008-201208

87249APIPE, HEATER WATER OUTLET, A

main87245-3V200iBU410,420200411-200701

main87248-37310iWU410..GCC,GEN200212-200802

main87248-37430iXZU412,422..6F200112-200802

main87248-37550iXZU415,425,435200608-200609

main87248-37820iXZU415,425,435200610-201208

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-37020iXZU414,424,434..EUR200110-200802

main87263-37110iWU420;WU410..65T;WU410..75T..GEN200610-201106

8271237250CLAMP, WIRING HARNESS

main82712-37250

8712437090CLAMP, HEATER

main87124-37090

8712437100CLAMP, HEATER

main87124-37100

8712437480CLAMP, HEATER

main87124-37480

9011908802

main90119-08802

9046721010

main90467-21010

91511G0814

main91511-G0814

9165160816

main91651-60816

9415080800

main94150-80800

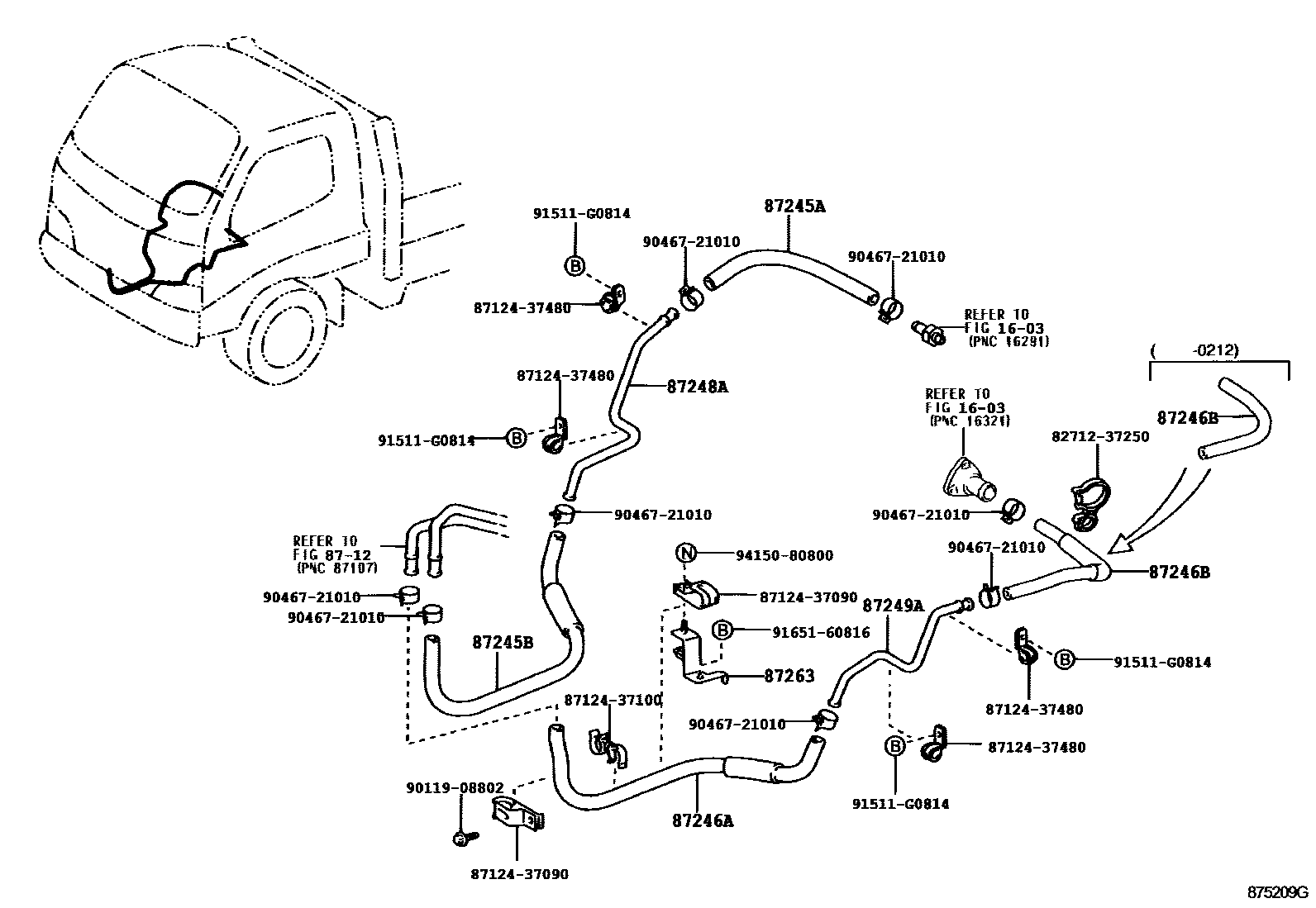

18 parts on this diagram · 9 diagrams in section
