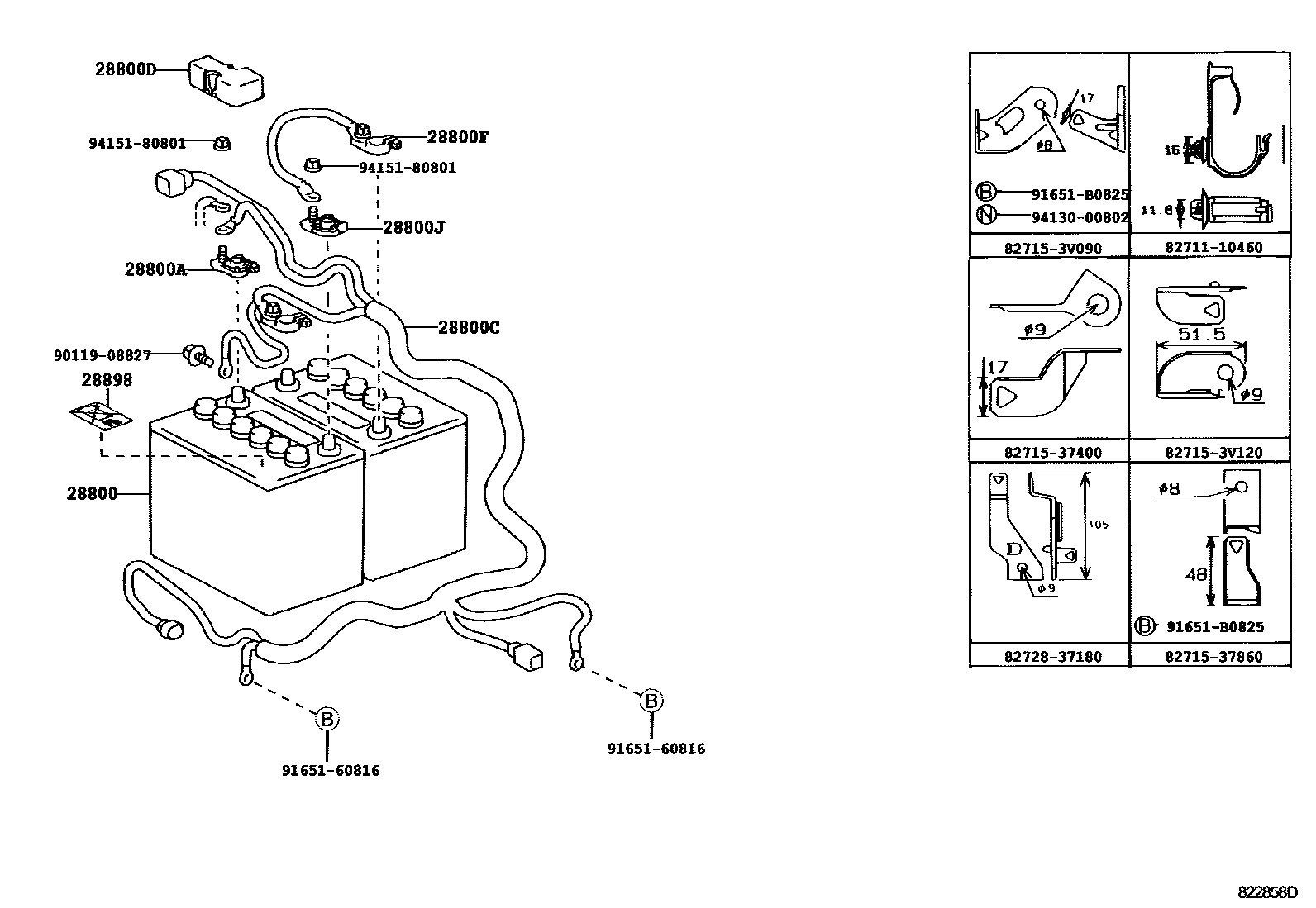

BATTERY & BATTERY CABLE
28800BATTERY
main28800-42041iS05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201201
55D23L
sub28800-31260
main28800-42042iS05C..XZU412,422..6F;J05C,N04C,W04D..WU410,420,XZU415,420,425,430,435..EUR,SA200110-200706
55D23L
sub28800-42041
main28800-64181iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,419,423,427,429,433,439200110-201201
95D31L
sub28800-78120
28800ATERMINAL, BATTERY POSITIVE
main90982-05056iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208
28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
main82821-37071iS05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208
28800FCABLE, BATTERY TO BATTERY
main82123-37170iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208
28800JTERMINAL, BATTERY NEGATIVE
main90982-05040iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208
28898PLATE, BATTERY
8271110460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10460
8271537400BRACKET,WIRING HARNESS CLAMP
main82715-37400
8271537860BRACKET,WIRING HARNESS CLAMP
main82715-37860
827153V090BRACKET,WIRING HARNESS CLAMP
main82715-3V090
827153V120BRACKET,WIRING HARNESS CLAMP
main82715-3V120
8272837180
main82728-37180
9011908827
main90119-08827
9165160816
main91651-60816
91651B0825
main91651-B0825
9413000802
main94130-00802
9415180801
main94151-80801
18 parts on this diagram · 4 diagrams in section
