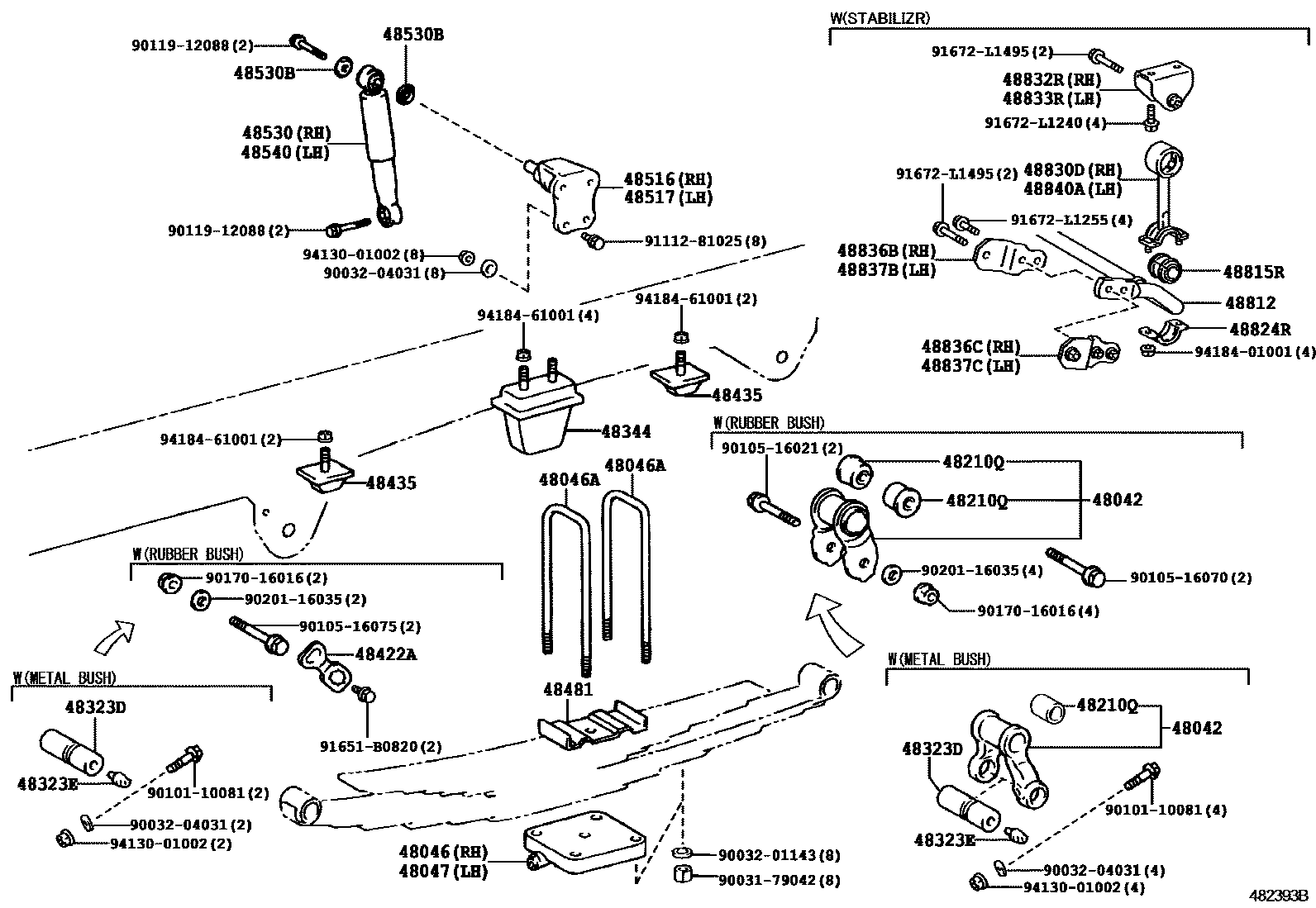

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1MAIN 2+HELPER 2-LEAF 48210-3V0003 1MAIN 2+HELPER 2-LEAF 48210-3V0004 1MAIN 2+HELPER 3-LEAF 48210-3V0007 1MAIN 2+HELPER 3-LEAF 48210-3V0008 1MAIN 2+HELPER 3-LEAF 48210-370009 1TYPE A:MAIN 5+HELPER 5-LEAF 0012 1TYPE B:MAIN 6+HELPER 5-LEAF 0015 1TYPE C:MAIN 6+HELPER 6-LEAF 0018 1MAIN 4+HELPER 4-LEAF 48210-37

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020iXZU404,414..55T..ARL200212-200610

main48042-37050iXZU415,425,435200110-201108

sub48042-37052

main48042-37051iXZU419,429,439201109-201208

sub48042-37052

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48473-37110iXZU404,414,424..RHD..55T..GEN200110-201009

sub48473-37111

main48473-37111iWU41#,422,XZU41#,42#,439..55T,65T,75T201010-201208

48046ABOLT, U(FOR REAR SPRING)

main90031-17016iXZU414..65T200212-200610

L=320

main90031-17019iXZU424..85T..GEN;XZU412,422,434..85T;XZU414,424..(75T,85T)..ARL200110-201208

L=380

main90031-17026iXZU404,414,424..RHD..55T..GEN200212-200610

L=350

main90031-17028iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427..55T,65T,75T200302-201106

L=400

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48473-37110iXZU404,414..ARL;XZU414..75T..GEN;XZU424..RHD..75T200110-201009

sub48473-37111

main48473-37111iWU41#,422,XZU41#,42#,439..55T,65T,75T201010-201208

48210SPRING ASSY, REAR RH

main48210-37B60iWU41#,420,XZU413..55T,65T200610-201106

MAIN 4+HELPER 4-LEAF

main48210-37F70iXZU419,429,439200908-201208

MAIN 2+HELPER 3-LEAF,W(STABILIZER)

sub48210-37F71

main48210-3V130iXZU414..65T200212-200610

MAIN 2+HELPER 2-LEAF

sub48210-3V131

main48210-3V450iXZU414,424,434..EUR200110-201208

MAIN 2+HELPER 3-LEAF

sub48210-3V451

main48210-3V470iXZU404,414,424..RHD..55T..GEN200212-200610

MAIN 2+HELPER 2-LEAF

sub48210-3V471

main48210-3V560iXZU424,434..85T..ARL200212-200610

MAIN 2+HELPER 3-LEAF

sub48210-3V561

main48210-3V610iXZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN)200212-200901

MAIN 5+HELPER 5-LEAF

main48210-3V620iXZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN)200212-201106

MAIN 6+HELPER 5-LEAF

main48210-3V630iXZU414,424..RHD..75T..GEN200212-201106

MAIN 6+HELPER 6-LEAF

48210QBUSH(FOR REAR SPRING SHACKLE)

main90033-84013iXZU404,414,424..RHD..55T..GEN200110-201208

main90389-16026iXZU404,414..55T..ARL200212-200610

48323DPIN, REAR SPRING BRACKET

main48323-37040iXZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)200110-201208

48323ENIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)

main90034-08006iXZU414,424,434..EUR200110-201208

48344STOPPER, BUMPER, REAR

main48344-37140iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433200302-201106

main48344-37270iXZU404,414..(55T,65T)..ARL200212-200610

main48344-37280iXZU414,424,434..(75T,85T)..ARL200110-201208

48422ASUPPORT, REAR SPRING PIN

main48422-37010iXZU404,414,424..RHD..55T..GEN200212-200610

48435ATTACHMENT, HELPER SPRING BRACKET, NO.1

main48435-37020iXZU414,424,434..EUR200110-201208

48481SEAT, REAR SPRING, UPPER

main48481-37090iXZU414,424,434..EUR200110-201208

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-37050iXZU424..75T,85T;XZU414..75T..GEN;XZU414..LHD..GEN;XZU404,414..ARL,EUR;BU410,420,WU410,420,XZU412,420,422,43#200110-200501

sub48505-37051

main48505-37051iXZU414,424,434..EUR200502-201108

sub48505-37052

main48505-37052iXZU419,429,439201109-201208

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-37050iXZU424..75T,85T;XZU414..75T..GEN;XZU414..LHD..GEN;XZU404,414..ARL,EUR;BU410,420,WU410,420,XZU412,420,422,43#200110-200501

sub48505-37051

main48505-37051iXZU414,424,434..EUR200502-201108

sub48505-37052

main48505-37052iXZU419,429,439201109-201208

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-37080iXZU404,414,424..RHD..55T..GEN200212-200603

MARK 48531-37080

sub48531-37270

main48531-37090iXZU414,424..RHD..75T..GEN200111-200603

MARK 48531-37090

sub48531-37280

main48531-37141iBU410,420200212-200901

MARK 48531-37141

main48531-37200iXZU412,422..6F;WU410,420,XZU420,430..SA200604-201106

MARK 48531-37200

sub48531-37201

main48531-37270iXZU404,414..(55T,65T)..ARL200604-200610

MARK 48531-37270

sub48531-37271

main48531-37280iXZU414,424,434..EUR200604-201208

MARK 48531-37280

sub48531-37281

main48531-80685iXZU404,414,424..55T200110-200111

MARK 48531-37080

sub48531-37080

main48531-80686iXZU414,424,434..75T200110-200111

MARK 48531-37090

sub48531-37090

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-37080iXZU404,414..(55T,65T)..ARL200212-200603

MARK 48531-37080

sub48531-37270

main48531-37090iXZU414,424,434..6F..(75T,85T)200111-200603

MARK 48531-37090

sub48531-37280

main48531-37141iXZU404,414,424..RHD..GEN200212-200901

MARK 48531-37141

main48531-37200iXZU412,422..6F;WU410,420,XZU420,430..SA200604-201106

MARK 48531-37200

sub48531-37201

main48531-37270iXZU404,414..(55T,65T)..ARL200604-200610

MARK 48531-37270

sub48531-37271

main48531-37280iXZU414,424,434..EUR200604-201208

MARK 48531-37280

sub48531-37281

main48531-80685iXZU404,414,424..55T200110-200111

MARK 48531-37080

sub48531-37080

main48531-80686iXZU414,424,434..75T200110-200111

MARK 48531-37090

sub48531-37090

48812BAR, STABILIZER, REAR

main48812-37060iXZU419,429,439200908-201208

sub48812-37061

48815RBUSH, STABILIZER(FOR REAR)

main48815-37090iXZU419,429,439200908-201208

48824RBRACKET, STABILIZER(FOR REAR)

main48824-37060iXZU419,429,439200908-201208

sub48824-37061

48830DLINK ASSY, REAR STABILIZER, RH

main48830-37030iXZU419,429,439200908-201208

sub48830-37031

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-37030iXZU419,429,439200908-201002

sub48832-37040

main48832-37040iXZU419,429,439201003-201208

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-37030iXZU419,429,439200908-201002

sub48832-37040

main48832-37040iXZU419,429,439201003-201208

48836BBRACKET, REAR STABILIZER END, INNER RH

main48836-37060iXZU419,429,439200908-201208

48836CBRACKET, REAR STABILIZER END, OUTER RH

main48809-37060iXZU419,429,439200908-201208

48837BBRACKET, REAR STABILIZER END, INNER LH

main48836-37060iXZU419,429,439200908-201208

48837CBRACKET, REAR STABILIZER END, OUTER LH

main48809-37060iXZU419,429,439200908-201208

48840ALINK ASSY, REAR STABILIZER, LH

main48830-37030iXZU419,429,439200908-201208

sub48830-37031

9003179042

main90031-79042

9003201143

main90032-01143

9003204031

main90032-04031

9010110081

main90101-10081

9010516021

main90105-16021

9010516070

main90105-16070

9010516075

main90105-16075

9011912088

main90119-12088

9017016016

main90170-16016

9020116035

main90201-16035

9111281025

main91112-81025

91651B0820

main91651-B0820

91672L1240

main91672-L1240

91672L1255

main91672-L1255

91672L1495

main91672-L1495

9413001002

main94130-01002

9418401001

main94184-01001

9418461001

main94184-61001
