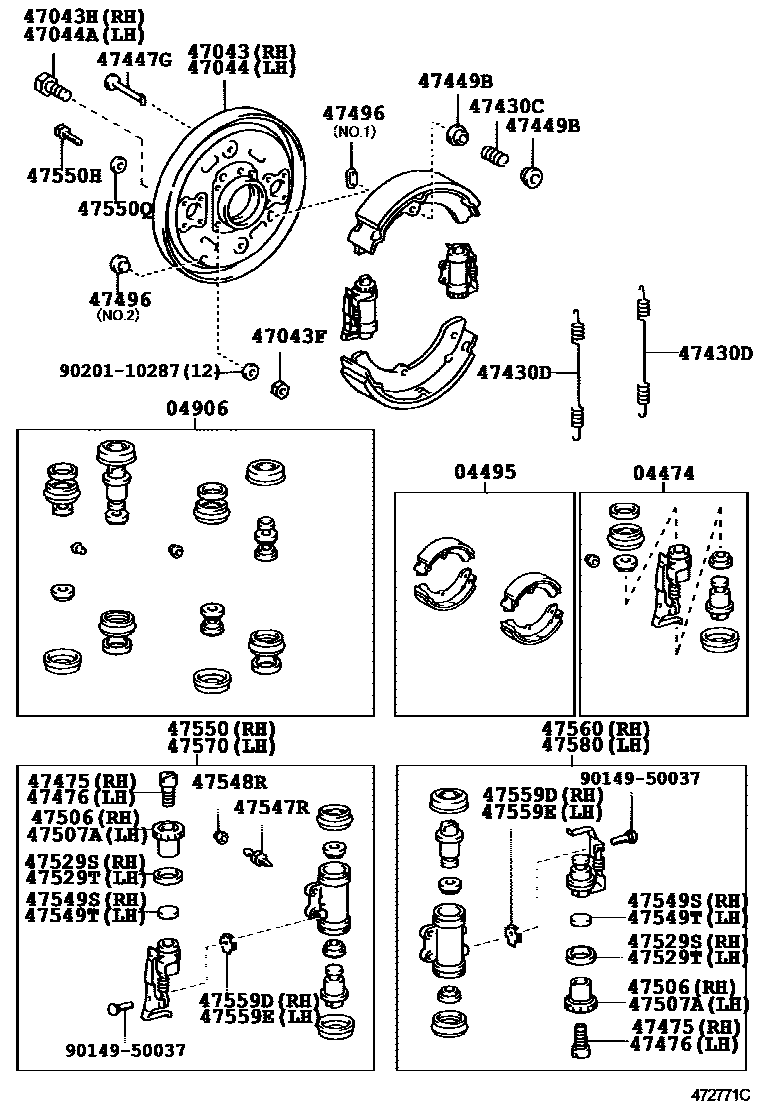

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0004 1MANUAL ADJUSTER 0006 1 0009 1AUTO ADJUSTER 0011 1W/O(ABS)

04474CYLINDER KIT, REAR WHEEL

main04468-37180×4iBU410,420..75T;XZU412,422,424..5F..85T200212-200701

LH

sub04468-37171

main04468-37200×2iXZU414..65T,75T;XZU424..RHD..(75T,85T);WU410,420,XZU420,430,434..ARL,SA200212-200802

LH

sub04468-37380

main04474-36020×4iXZU412..55T;XZU414..LHD..GEN200212-200610

RH

main04474-36030×4iXZU412..55T;XZU414..LHD..GEN200212-200610

LH

main04474-36040×2iXZU404,414,424..55T200110-200212

RH

main04474-36041×2iWU410..GCC;XZU413..55T201002-201106

RH

main04474-36050×2iXZU404,414,424..55T200110-200212

LH

main04474-36051×2iWU410..GCC;XZU413..55T201002-201106

LH

main04474-37150×2iXZU414,424..75T..GEN200110-200212

RH

sub04474-37151

main04474-37160×2iXZU414,424..75T..GEN200110-200212

LH

sub04474-37161

main04474-37170iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

RH

sub04474-37171

main04474-37180×2iBU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN)200212-200802

LH

sub04468-37171

main04474-37330×4iBU410,420..75T;XZU412,422,424..5F..85T200212-200701

RH

sub04474-37171

main04474-37350×2iXZU414..65T,75T;XZU424..RHD..(75T,85T);WU410,420,XZU420,430,434..ARL,SA200212-200802

RH

sub04474-37520

04495SHOE KIT, REAR BRAKE

main04494-36290iXZU412..55T;XZU414..LHD..GEN200110-200610

MARK NBK LN519

main04495-37021iXZU414,424..75T..GEN200110-200212

MARK NBK D2160

main04495-37032iBU410,420200212-200701

MARK NBK D2177

sub04495-37034

main04495-37040iWU410..GCC;XZU413..55T201002-201106

MARK NBK D9227

main04495-37060iWU410,XZU420,430..(75T,85T)..SA200406-200802

MARK NBK D2177

main04495-37160iXZU414..65T,75T;XZU424..RHD..(75T,85T);WU410,420,XZU420,43#..ARL,SA200212-200406

MARK AK LA514

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36170iWU410..GCC;XZU413..55T200610-201106

main04906-36180iXZU404,414,424..55T200110-200212

sub04906-36181

main04906-36250×4iXZU412..55T;XZU414..LHD..GEN200212-200610

main04906-37080iXZU414,424..75T..GEN200110-200212

MANUAL ADJUSTER

sub04906-37081

main04906-37090iBU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN)200212-200802

sub04906-37091

main04906-37101iWU410,420,XZU423,433..SA200802-200812

sub04906-37102

main04906-37210iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

sub04906-37212

main04906-37220×4iBU410,420..75T;XZU412,422,424..5F..85T200212-200701

sub04906-37222

main04906-37240×4iWU410,420,XZU420,430..SA200801-200807

sub04906-37241

main04906-37250iXZU404,414,424..RHD..55T200212-200610

sub04906-36181

main04906-37420×4iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36160iWU410..GCC;XZU413..55T200610-201106

main47043-37060iXZU404,414,424..RHD..55T200110-200610

main47043-37091iWU410,420,XZU423,433..SA200802-200812

main47043-37101iBU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)200212-200610

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002×12iWU410..GCC;XZU413..55T200610-201106

main94130-01441×4iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T200610-201106

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-14032×4iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

main90114-10063×6iWU410..GCC;XZU413..55T200610-201106

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36160iXZU412..55T;XZU414..LHD..GEN200212-200610

main47044-37060iXZU404,414,424..RHD..55T200110-200610

main47044-37091iWU410,420,XZU423,433..SA200802-200812

main47044-37101iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-14032×4iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T200610-201106

main90114-10063×6iXZU404,414,424..55T200110-200212

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iXZU404,412,414,424..55T200110-200610

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12085×4iWU410,XZU420,430..(75T,85T)..SA200212-200802

main90507-29006×4iWU410..GCC;XZU413..55T200610-201106

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010×4iXZU404,412,414,424..55T200110-200610

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iXZU404,412,414,424..55T200110-200610

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36060×2iWU410..GCC;XZU413..55T200610-201106

main47553-36070×2iXZU404,414,424..55T200110-200212

main47553-37050×2iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47553-37070×2iBU410,420..65T200212-200701

main47553-37110×2iXZU414,424,434..EUR200305-200608

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36060×2iWU410..GCC;XZU413..55T200610-201106

main47554-36070×2iXZU404,414,424..55T200110-200212

main47554-37030×2iXZU412,422..6F200212-200802

main47554-37050×2iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

main47554-37110×2iWU410,420,XZU423,433..SA200802-200812

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iXZU404,414,424..55T200110-200212

NO.1

main47491-36020×8iWU410..GCC;XZU413..55T200610-201106

NO.1

main47491-37090×8iXZU414,424,434..RHD..(65T,75T,85T)200110-200610

NO.1

main47492-28010×4iXZU404,412,414,424..55T200110-200610

NO.2

main47496-37020×2iWU410,420,XZU423,433..SA200802-200812

NO.2

47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47506-36020×2iXZU404,414..55T..ARL200212-200610

main47506-37110×2iWU410,XZU420,430..(75T,85T)..SA200212-200802

47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47507-36020×2iXZU404,414,424..55T200110-200212

main47507-37110×2iXZU414,424,434..RHD..(65T,75T,85T)200212-200610

47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH

main47529-36010×2iXZU404,414,424..55T200110-200212

47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH

main47529-36010×2iXZU404,414,424..55T200110-200212

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020×2iWU410..GCC;XZU413..55T200610-201106

main47547-37130×2iXZU414,424..RHD..75T..GEN200110-200610

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iBU410,420200110-200701

47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH

main47549-37091×2iXZU404,414..55T..ARL200110-200610

main47549-37110×2iXZU414,424,434..RHD..(65T,75T,85T)200212-200610

47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH

main47549-37091×2iXZU404,414,424..55T200110-200212

main47549-37110×2iXZU414,424,434..EUR200305-200608

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37111iXZU404,414,424..55T200110-200209

main47550-37112iXZU404,414,424..RHD..55T200209-200610

sub47550-37113

main47550-37120iXZU412..55T;XZU414..LHD..GEN200212-200610

sub47550-37121

main47550-37130iXZU414,424..75T..GEN200110-200212

sub47550-37131

main47550-37140iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201002

main47550-37141iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47550-37142

main47550-37150iWU420;WU410..65T..SA200212-200801

sub47550-37151

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-10127×16iXZU404,412,414,424..55T200110-200610

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-10287×16iXZU404,412,414,424..55T200110-200610

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-36010×2iXZU404,414,424..55T200110-200212

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-36010×2iXZU404,414,424..55T200110-200212

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36200iXZU412..55T;XZU414..LHD..GEN200212-200610

sub47560-36201

main47560-37040iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201002

main47560-37041iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47560-37042

main47560-37081iXZU404,414,424..55T200110-200209

main47560-37082iXZU404,414,424..RHD..55T200209-200610

sub47560-37083

main47560-37100iXZU414,424,434..EUR200110-200305

sub47560-37101

main47560-37180iWU410,420,XZU423,433..SA200802-200812

sub47560-37181

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37071iXZU404,414,424..55T200110-200209

main47570-37072iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

sub47570-37073

main47570-37080iXZU412..55T;XZU414..LHD..GEN200212-200610

sub47570-37081

main47570-37090iXZU414,424..75T..GEN200110-200212

sub47570-37091

main47570-37100iXZU412,422..6F200212-200802

main47570-37101iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47570-37102

main47570-37110iXZU414,424,434..RHD..(65T,75T,85T)200212-200610

sub47570-37111

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36200iXZU412..55T;XZU414..LHD..GEN200212-200610

sub47580-36201

main47580-37030iXZU412,422..6F200212-200802

main47580-37031iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47580-37032

main47580-37071iXZU404,414,424..55T200110-200209

main47580-37072iXZU404,414,424..RHD..55T200209-200610

sub47580-37073

main47580-37090iXZU414,424,434..EUR200110-200305

sub47580-37091

main47580-37170iWU410,XZU420,430..(75T,85T)..SA200212-200802

sub47580-37171

9014950037

main90149-50037

9020110287

main90201-10287

33 parts on this diagram · 6 diagrams in section
