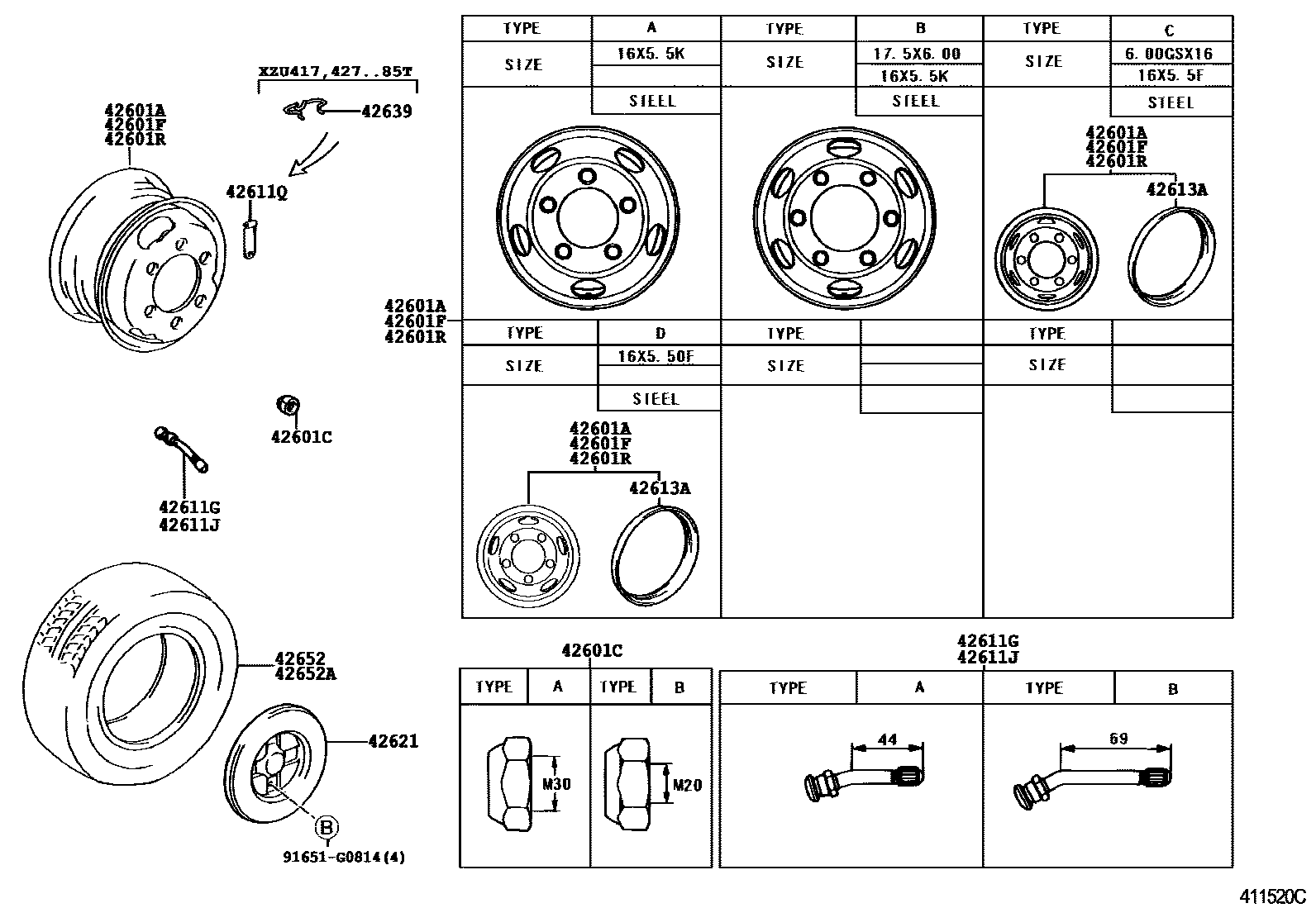

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42601-37240iXZU404,414,424..55T200110-200610

16X5.5K, #,TYPE A:REFER ILLUST.

main42601-37250iXZU404,414,424..RHD..55T..GEN200209-200610

16X5.5K, #,TYPE A:REFER ILLUST.

main42601-37320iXZU415,419,425,429,435,439200110-201002

17.5X6.00, #,TYPE B:REFER ILLUST.

sub42601-37730

main42601-37330iXZU414,424..RHD..(65T,75T)200110-200610

16X5.5K, #,TYPE B:REFER ILLUST.

main42601-37730iXZU41#,42#,439..6F201002-201208

17.5X6.00, #,TYPE B:REFER ILLUST.

sub42611-37020

sub90942-05046

main42610-36272iBU410,420..75T200212-201106

6.00GSX16, #,TYPE C:REFER ILLUST.

main42610-37091iWU410..GCC;XZU413..55T200212-201106

16X5.50F, #,TYPE D:REFER ILLUST.

main42610-37101iBU410,420..65T200411-200901

16X5.50F, #,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main42633-37020iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

TYPE A:REFER TO ILLUSTRATION,RH

main42633-55030iXZU404,412,414,424..55T200110-200609

TYPE A:REFER TO ILLUSTRATION,RH

main42634-37020iXZU415,425,435200610-201208

TYPE A:REFER TO ILLUSTRATION,LH

main42634-55030iXZU414,424,434..(65T,75T,85T)..(ARL,GEN);BU410,420,WU410,420,XZU412,415,420,422,425,430,435..65T,75T,85T200110-200609

TYPE A:REFER TO ILLUSTRATION,LH

main43522-37010iBU410,420200610-201208

TYPE B:REFER TO ILLUSTRATION,RH

main43522-37020iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

TYPE B:REFER TO ILLUSTRATION,LH

main90942-01107iXZU404,412,414,424..55T200110-200609

TYPE B:REFER TO ILLUSTRATION,RH

main90942-01108iXZU404,412,414,424..55T200110-200609

TYPE B:REFER TO ILLUSTRATION,LH

42601FWHEEL, DISC (FOR FRONT)

main42601-37240iXZU404,414,424..55T200110-200610

16X5.5K, #,TYPE A:REFER ILLUST.

main42601-37250iXZU404,414,424..RHD..55T..GEN200209-200610

16X5.5K, #,TYPE A:REFER ILLUST.

main42601-37320iXZU414,424,434..EUR200110-201002

17.5X6.00, #,TYPE B:REFER ILLUST.

sub42601-37730

main42601-37330iBU410,420..75T200110-200610

16X5.5K, #,TYPE B:REFER ILLUST.

main42601-37730iWU412,422..GCC201002-201208

17.5X6.00, #,TYPE B:REFER ILLUST.

sub42611-37020

sub90942-05046

main42610-36272iWU410,420..65T..SA200311-201106

6.00GSX16, #,TYPE C:REFER ILLUST.

main42610-37091iXZU412..55T;XZU414..LHD..GEN200212-201106

16X5.50F, #,TYPE D:REFER ILLUST.

main42610-37101iBU410,420..65T200308-200901

16X5.50F, #,TYPE C:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main42601-37240iXZU404,414,424..55T200110-200610

16X5.5K, #,TYPE A:REFER ILLUST.

main42601-37250iXZU404,414,424..RHD..55T..GEN200209-200610

16X5.5K, #,TYPE A:REFER ILLUST.

main42601-37320iXZU414,424,434..EUR200110-201002

17.5X6.00, #,TYPE B:REFER ILLUST.

sub42601-37730

main42601-37330iBU410,420..75T200110-200610

16X5.5K, #,TYPE B:REFER ILLUST.

main42601-37730iWU412,422..GCC201002-201208

17.5X6.00, #,TYPE B:REFER ILLUST.

sub42611-37020

sub90942-05046

main42610-36272iWU410,420,XZU420,430..SA200212-201106

6.00GSX16, #,TYPE C:REFER ILLUST.

main42610-37091iWU410..GCC;XZU413..55T200212-201106

16X5.50F, #,TYPE D:REFER ILLUST.

main42610-37101iXZU417,427..65T200308-200901

16X5.50F, #,TYPE C:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05026iBU410,420..75T200110-200610

TYPE A:REFER ILLUST.

main90942-05026iXZU404,414,424..55T200110-200209

main90942-05030iXZU415,425,435200110-201208

TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05026iXZU404,414,424..RHD..55T..GEN200110-200610

TYPE A:REFER ILLUST.

main90942-05026iXZU404,414,424..55T200110-200209

main90942-05030iXZU413,423..6F..GEN200110-201208

TYPE B:REFER ILLUST.

42611QCLIP (FOR TUBE)

main90468-10014iXZU413..55T;WU410,XZU417,427..65T..(GCC,TAIW)200212-201106

42613ARING, DISC WHEEL SIDE

main42613-37020iWU410,420,XZU420,430..SA200212-201106

main42613-37030iBU410,420..65T200212-201106

42621CAP, WHEEL

main42621-37020iXZU415,425,435200110-201208

42639STOPPER, TIRE VALVE

main42639-37010iXZU417,427..85T200701-200901

42652TIRE

main42605-36230iXZU414..LHD..GEN200212-201106

7.00-16-10,LUG

main42605-36280iWU41#..65T..GEN..IV3200212-201106

7.50-16-10,RIB

main42605-36290iWU41#,422,XZU413,423..5F..75T..GEN..IV3200212-201106

7.50-16-12,RIB

main42605-36460iXZU417,427..65T200411-200901

7.00R16-12,*Y/H

main42605-36540iXZU417,427..65T200411-200901

7.00R16-10,RIB

main42605-36580iXZU414..LHD..GEN200212-201106

7.00R16-10,LUG

main42605-37170iWU410..GCC200610-200707

7.00-16-10,RIB

main42605-37220iWU410..GCC200212-200610

7.50-16-10,RIB

main42605-37230iXZU412,422..75T..GCC200212-200812

7.50-16-12,RIB

main42605-37240iWU412,422..75T..GCC200212-200812

7.50-16-12,LUG

main42605-37300iWU410..GCC;XZU413..55T200707-201012

7.00R16-10,RIB,*D/L

sub42605-37301

main42605-37301iWU410..GCC;XZU413..55T201101-201106

7.00R16-10,RIB,*D/L

main42605-37310iWU41#,422,XZU413..75T..GEN..IV3200610-200707

7.50-16-14,RIB

main42605-37320iWU410..GCC200610-201106

7.00R16-12,LUG

sub42605-37321

main42605-37330iWU410..GCC200610-201012

7.00R16-10,LUG

sub42605-37331

main42605-37331iWU410..GCC201101-201106

7.00R16-10,LUG

main42605-37360iXZU412,422..85T..DSL200212-201106

7.50R16-14,RIB,*D/L

main42605-37380iWU41#..65T..GEN200212-200707

7.50-16-10

main42605-37390iWU41#..65T..GEN200212-201106

7.50R16-10,LUG

sub42605-37391

main42605-37400iXZU422..RHD200212-201106

7.50R16-12,LUG

sub42605-37401

main42605-37420iXZU422..LHD..GEN..IV3..DSL;WU410,XZU412..5F..75T..GEN..IV3200212-200707

7.50-16-14,LUG

main42605-37430iWU410..GCC200212-200610

7.50-16-10

main42605-37470iWU410..GCC;XZU413..55T200212-201106

7.00R16-10,RIB

sub42605-37471

main42605-37470iWU410..GCC;XZU413..55T200610-201106

7.00R16-10,RIB,FRONT

sub42605-37471

main42605-37510iWU41#..65T..GEN200212-201106

7.50R16-10,RIB

sub42605-37511

main42605-37530iWU41#,422,XZU413,423..5F..75T..GEN200610-201106

7.50R16-12,RIB

sub42605-37531

main42605-37540iXZU422..LHD..GEN..IV3..DSL;WU410,XZU412..5F..75T..GEN..IV3200212-201106

7.50R16-14,RIB,*B/S

main42605-37570iXZU412..6F200401-201106

7.50R16-14,RIB

main42605-37570iXZU412..5F..75T..TD200212-200610

7.50R16-14,RIB,VENEZUELA SPEC

main42605-37580iXZU433200304-200812

7.50R16-14,RIB

main42605-37590iXZU412,422..5F..75T..TD200212-200610

7.50R16-12,RIB,VENEZUELA SPEC

main42605-37590iXZU413,423..6F..GEN200802-201106

7.50R16-12,RIB

main42605-37600iWU420,XZU423..75T..SA200802-200812

7.50R16-12,RIB

main42605-37610iXZU413,423..6F..GEN200802-201106

7.50R16-12,LUG

main42605-37620iWU410,420,XZU420..75T..SA200304-200812

7.50R16-12,LUG

main42605-37630iWU410..LHD..GEN..IV3200212-200610

7.50R16-10,RIB,VENEZUELA SPEC

main42605-37640iWU410,420..65T..SA200311-200812

7.50R16-10,RIB

main42605-37650iWU410..LHD..GEN..IV3200212-200610

7.50R16-10,LUG,VENEZUERA SPEC

main42605-37660iWU410,420..65T..SA200311-200812

7.50R16-10,LUG

main42605-37670iXZU413..6F200212-201106

7.50-16-14,RIB

main42605-37680iXZU433200311-200812

7.50-16-14,RIB

main42605-37690iXZU413..6F200802-201106

7.50-16-14,LUG

main42605-37690iXZU412..6F;XZU412,422..85T..TD200212-200802

7.50-16-14,LUG,VENEZUELA SPEC

main42605-37700iXZU430200311-200812

7.50-16-14,LUG

main42605-37710iXZU412,422..75T..TD200212-200802

7.50-16-12,RIB,VENEZUELA SPEC

main42605-37710iXZU413,423..6F..GEN200802-201106

7.50-16-12,RIB

main42605-37720iWU410,420,XZU420..75T..SA200311-200812

7.50-16-12,RIB

main42605-37730iXZU412,422..75T..TD200212-200802

7.50-16-12,LUG,VENEZUELA SPEC

main42605-37730iXZU413,423..6F..GEN200802-201106

7.50-16-12,LUG

main42605-37740iWU420,XZU423..75T..SA200311-200812

7.50-16-12,LUG

main42605-37750iWU410..LHD..GEN..IV3200212-200610

7.50-16-10,RIB,VENEZUELA SPEC

main42605-37760iWU410,420..65T..SA200311-200812

7.50-16-10,RIB

main42605-37770iWU410..LHD..GEN..IV3200212-200610

7.50-16-10,LUG

main42605-37780iWU410,420..65T..SA200311-200812

7.50-16-10,LUG

main42605-37870iWU422..85T;WU412..GCC..IV3;WU412..85T..CBU200212-200707

7.50-16-14,RIB

main42605-37880iWU41#,422,XZU413..5F..75T..GEN..IV3200306-201106

7.50R16-14,RIBLUG

main42605-37890iXZU412..6F200401-201106

7.50R16-14,LUG

main42605-37890iXZU412..5F..75T..TD200306-200610

7.50R16-14,LUG,VENEZUELA SPEC

main42605-37A00iXZU422..LHD..GEN..IV3..DSL;WU410,XZU412..5F..75T..GEN..IV3200307-201106

7.50R16-14,BLOCK

main42652-37101iBU410,420..75T200209-200610

205/85R16,*Y/H,YOKOHAMA

main42652-37171iXZU404,414..55T..ARL200110-200610

195/85R16

main42652-37551iBU410,420..75T200209-200610

205/85R16,*D/L,GOOD YEAR

main42652-37590iXZU424,434..85T..ARL200212-200610

225/80R17.5

main42652-37610iXZU414..65T200212-200610

205/85R16

main98066-75166iXZU424..LHD..75T..GEN;WU410,XZU412,422..5F..75T..GEN200212-200707

7.50-16-12,LUG

main98961-70165iXZU412..55T;XZU414..LHD..GEN200212-200707

7.00-16-10,RIB

42652ATIRE (FOR SPARE)

main42605-36230iXZU414..LHD..GEN200212-201106

7.00-16-10,LUG

main42605-36280iWU410,XZU412..65T..GEN200212-201106

7.50-16-10,RIB

main42605-36290iWU41#,422,XZU413,423..5F..75T..GEN..IV3200212-201106

7.50-16-12,RIB

main42605-36460iBU410,420..65T200411-200901

7.00R16-12,*Y/H

main42605-36540iBU410,420..65T200411-200901

7.00R16-10,RIB

main42605-36580iXZU413..55T200212-201106

7.00R16-10,LUG

main42605-37170iWU410..GCC200610-200707

7.00-16-10,RIB

main42605-37220iWU410..GCC200212-200610

7.50-16-10,RIB

main42605-37230iWU412,422..75T..GCC200212-200812

7.50-16-12,RIB

main42605-37240iXZU412,422..75T..GCC200212-200812

7.50-16-12,LUG

main42605-37300iWU410..GCC;XZU413..55T200707-201012

7.00R16-10,RIB,*D/L

sub42605-37301

main42605-37301iWU410..GCC;XZU413..55T201101-201106

7.00R16-10,RIB,*D/L

main42605-37310iWU41#,422,XZU413..75T..GEN..IV3200610-200707

7.50-16-14,RIB

main42605-37320iWU410..GCC200610-201106

7.00R16-12,LUG

sub42605-37321

main42605-37330iWU410..GCC200610-201012

7.00R16-10,LUG

sub42605-37331

main42605-37331iWU410..GCC201101-201106

7.00R16-10,LUG

main42605-37360iXZU412..75T..GCC..IV3200212-201106

7.50R16-14,RIB,*D/L

main42605-37380iWU410..65T..GEN200212-200707

7.50-16-10

main42605-37390iWU410..65T..(GCC,GEN)200212-201106

7.50R16-10,LUG

sub42605-37391

main42605-37400iXZU424..LHD..75T..GEN;WU410,XZU412,422..5F..75T..(GCC,GEN)200212-201106

7.50R16-12,LUG

sub42605-37401

main42605-37420iXZU412,422,424..85T..GEN200212-200707

7.50-16-14,LUG

main42605-37430iWU410..GCC200212-200610

7.50-16-10

main42605-37470iWU410..GCC;XZU413..55T200212-201106

7.00R16-10,RIB

sub42605-37471

main42605-37510iWU41#..65T..GEN200212-201106

7.50R16-10,RIB

sub42605-37511

main42605-37530iXZU424..LHD..75T..GEN;XZU412,422..5F..75T..GEN;BU410,420,WU410..75T..(GEN,TAIW)200212-201106

7.50R16-12,RIB

sub42605-37531

main42605-37540iWU41#,422,XZU413..5F..75T..GEN..IV3200212-201106

7.50R16-14,RIB,*B/S

main42605-37570iXZU412..5F..75T..TD200212-200610

7.50R16-14,RIB,VENEZUELA SPEC

main42605-37570iXZU412..6F200401-201106

7.50R16-14,RIB

main42605-37580iXZU433200304-200812

7.50R16-14,RIB

main42605-37590iXZU413,423..6F..GEN200401-201106

7.50R16-12,RIB

main42605-37590iXZU412,422..5F..75T..TD200212-200610

7.50R16-12,RIB,VENEZUELA SPEC

main42605-37600iWU420,XZU423..75T..SA200304-200812

7.50R16-12,RIB

main42605-37610iXZU413,423..6F..GEN200401-201106

7.50R16-12,LUG

main42605-37610iXZU412,422..5F..75T..TD200212-200610

7.50R16-12,LUG,VENEZUELA SPEC

main42605-37620iWU420,XZU423..75T..SA200304-200812

7.50R16-12,LUG

main42605-37630iWU410..LHD..GEN..IV3200212-200610

7.50R16-10,RIB,VENEZUELA SPEC

main42605-37640iWU410,420..65T..SA200304-200812

7.50R16-10,RIB

main42605-37650iWU410..LHD..GEN..IV3200212-200610

7.50R16-10,LUG,VENEZUERA SPEC

main42605-37660iWU410,420..65T..SA200311-200812

7.50R16-10,LUG

main42605-37670iXZU412..6F;XZU412,422..85T..TD200212-201106

7.50-16-14,RIB

main42605-37680iXZU433200311-200812

7.50-16-14,RIB

main42605-37690iXZU412..6F;XZU412,422..85T..TD200212-200802

7.50-16-14,LUG,VENEZUELA SPEC

main42605-37690iXZU413..6F200802-201106

7.50-16-14,LUG

main42605-37700iXZU430200311-200812

7.50-16-14,LUG

main42605-37710iXZU412,422..75T..TD200212-200802

7.50-16-12,RIB,VENEZUELA SPEC

main42605-37710iXZU413,423..6F..GEN200802-201106

7.50-16-12,RIB

main42605-37720iWU410,420,XZU420..75T..SA200311-200812

7.50-16-12,RIB

main42605-37730iXZU413,423..6F..GEN200802-201106

7.50-16-12,LUG

main42605-37730iXZU412,422..75T..TD200212-200802

7.50-16-12,LUG,VENEZUELA SPEC

main42605-37740iWU420,XZU423..75T..SA200311-200812

7.50-16-12,LUG

main42605-37750iWU410..LHD..GEN..IV3200212-200610

7.50-16-10,RIB,VENEZUELA SPEC

main42605-37760iWU410,420..65T..SA200311-200812

7.50-16-10,RIB

main42605-37770iWU410..LHD..GEN..IV3200212-200610

7.50-16-10,LUG

main42605-37780iWU410,420..65T..SA200311-200812

7.50-16-10,LUG

main42605-37870iXZU412..75T..GCC..IV3200212-200707

7.50-16-14,RIB

main42605-37880iWU41#,422,XZU413..5F..75T..GEN..IV3200306-201106

7.50R16-14,RIBLUG

main42605-37890iXZU413..6F200401-201106

7.50R16-14,LUG

main42605-37890iXZU412..5F..75T..TD200306-200610

7.50R16-14,LUG,VENEZUELA SPEC

main42652-37101iBU410,420..75T200209-200610

205/85R16,*Y/H,YOKOHAMA

main42652-37171iXZU404,414,424..55T200110-200610

195/85R16

main42652-37551iBU410,420..75T200209-200610

205/85R16,*D/L,GOOD YEAR

main42652-37590iXZU424,434..85T..ARL200212-200610

225/80R17.5

main42652-37610iXZU414..65T200212-200610

205/85R16

main98066-75166iXZU424..LHD..75T..GEN;WU410,XZU412,422..5F..75T..GEN200212-200707

7.50-16-12,LUG

main98961-70165iXZU413..55T200212-200707

7.00-16-10,RIB

91651G0814

main91651-G0814

13 parts on this diagram · 2 diagrams in section
