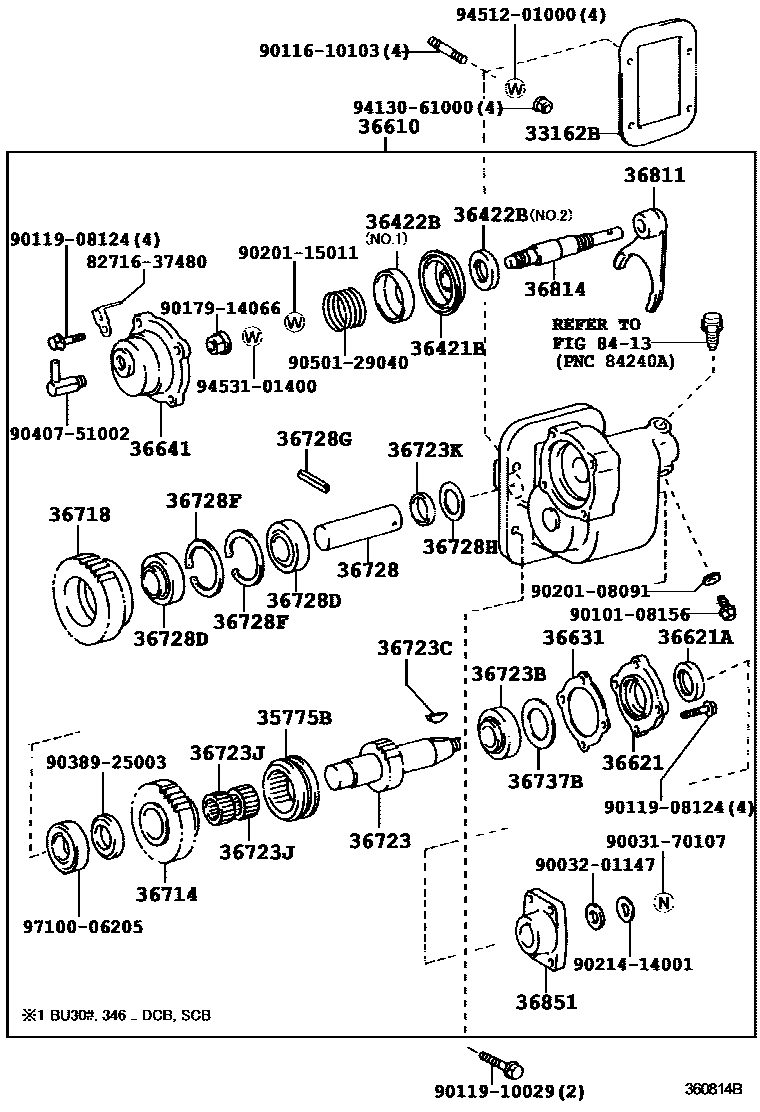

POWER TAKE-OFF CASE & GEAR

0001 1VACUUM TYPE 15KG 0003 1VACUUM TYPE 25KG 0004 1VACUUM TYPE 25KG 0005 1VACUUM TYPE 25KG 0006 1VACUUM TYPE 25KG 0007 1VACUUM TYPE 0009 1MANUAL LEVER TYPE 25KG 0010 1MANUAL LEVER TYPE 25KG 0011 1VACUUM TYPE 15 KG 0012 1VACUUM TYPE 25 KG 0013 1VACUUM TYPE 15 KG, 25 KG 0014 1VACUUM TYPE 25 KG 0015 1MANUAL LEVER TYPE 25 KG 0016 1ELECTRIC TYPE 20KG

33162BGASKET, POWER TAKE-OFF COVER

main33162-37030iXZU414,424..6F..ARL;WU410,XZU434..ARL,GCC,GEN200110-201106

35775BSLEEVE, OUTPUT SHAFT

main35775-37010iWU410..GCC,GEN200110-201106

main35775-37030iBU410,420200502-201106

sub35775-37031

main35775-93100iWU410200212-200301

mainSU00200751iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

subSU002-01095

36421BDIAPHRAGM (FOR POWER TAKE-OFF)

main36421-37010iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F200709-201106

main36421-93100iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200708

sub36421-37010

36422BPLATE, DIAPHRAGM (FOR POWER TAKE-OFF)

main36422-93100iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

NO.1

main36422-93101iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

NO.2

36610POWER TAKE-OFF ASSY

main36610-37090iXZU414,424..LHD..GEN200212-200610

MANUAL LEVER TYPE 25KG

main36610-37100iXZU404,414,424..GEN200110-200610

VACUUM TYPE 25KG

main36610-37110iBU410,420200212-200701

main36610-37150iWU410..GCC,GEN200212-200702

VACUUM TYPE 15KG

sub36610-37151

main36610-37151iWU410,420..SA200703-201106

VACUUM TYPE 15KG

main36610-37190iXZU412,422..5F;XZU404,414..55T..ARL200212-200610

VACUUM TYPE 25KG

sub36610-37191

main36610-37200iXZU412,422..5F200212-200610

MANUAL LEVER TYPE 25KG

main36610-37220iXZU412,420,422,430..6F200304-200702

VACUUM TYPE 25KG

sub36610-37221

main36610-37221iXZU412,420,422,430200703-200802

VACUUM TYPE 25KG

main36610-37230iXZU412,422..6F200401-200802

MANUAL LEVER TYPE 25KG

main36610-37280iWU412,422,XZU413,423..5F200610-201007

VACUUM TYPE 25KG

sub36610-37281

main36610-37281iWU412,422,XZU413,423..5F201008-201106

VACUUM TYPE 25KG

sub36610-37282

main36610-37290iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

ELECTRIC TYPE, 20KG

sub36610-37291

main36610-37330iWU412,422,XZU413,423..5F200610-201007

MANUAL LEVER TYPE 25KG

sub36610-37331

main36610-37331iWU412,422,XZU413,423..5F201008-201106

MANUAL LEVER TYPE 25KG

sub36610-37332

36621RETAINER, POWER TAKE-OFF BEARING

main36621-37071iWU412,422,XZU413,423..5F200610-201106

main36621-93200iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

mainSU00200788iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

subSU002-00894

36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)

main90311-25110iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

mainSU00200752iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36631GASKET, POWER TAKE-OFF BEARING RETAINER

main36632-37030iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200301-201106

main36632-93101iWU410,XZU404,41#,42#,434..ARL,GCC,GEN200110-200301

36641CAP, POWER TAKE-OFF SHIFT SHAFT

main36641-93100iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

36714GEAR, POWER TAKE-OFF OUTPUT

main36714-37090iXZU404,41#,422,424..5F200110-200502

sub36714-37091

sub35775-37030

main36714-37091iXZU404,412,414,422,424..5F200502-200610

main36714-37100iBU410,420,XZU41#,42#,43#..6F..(ARL,GEN,SA,TAIW)200212-200502

sub36714-37101

sub35775-37030

main36714-37101iXZU414,424,434..6F..ARL200502-200802

main36714-37171iWU412,422,XZU413,423..5F200610-201106

main36714-93108iWU410,420..SA200212-201106

mainSU00200759iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-200809

mainSU00201030iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200809-201106

36718GEAR, POWER TAKE-OFF IDLER

main36718-37040iXZU404,414,424..GEN200110-200610

main36718-37050iXZU414,424,434..6F..ARL200212-200701

main36718-37090iXZU412,422..5F;XZU404,414..55T..ARL200212-200610

main36718-37100iXZU412,420,422,430..6F200304-200802

main36718-37110iWU412,422,XZU413,423..5F200610-201106

main36718-93112iWU420;WU410..65T;WU410..75T..GEN200212-201106

mainSU00200762iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1

main36723-37030iXZU404,412,414,422,424..5F200110-200610

main36723-37040iXZU412,420,422,430..6F200212-200802

main36723-37100iWU412,422,XZU413,423..5F200610-201007

sub36723-37101

main36723-37101iWU412,422,XZU413,423..5F201008-201106

main36723-93107iWU420;WU410..65T;WU410..75T..GEN200212-201106

mainSU00200831iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36723BBEARING (FOR OUTPUT SHAFT REAR)

main90366-22001iWU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN)200110-201106

T=16.25

main90366-25011iBU410,420200212-200802

T=14

36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90280-07011iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90364-28020iBU410,420200110-201106

mainSU00200740iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36723KCOLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)

main90387-25009iWU410,420..SA200212-201106

main90560-25002iBU410,420200212-200802

mainSU00200834iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36728SHAFT, POWER TAKE-OFF IDLER

main36728-37020iWU412,422,XZU413,423..5F200110-201106

main36728-93107iBU410,420200212-201106

mainSU00200850iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36728DBEARING (FOR POWER TAKE-OFF IDLER SHAFT)

main90366-22001iWU410..GCC,GEN200212-201106

main90366-25006iXZU412,420,422,430..6F200212-200802

main90366-25011iXZU414,424..LHD..GEN200212-201106

main90366-25011iXZU404,412,422..5F;XZU414,424..RHD..5F200110-200610

VACUUM TYPE 25KG

mainSU00200743iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36728FRING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)

main90035-21016iXZU412,420,422,430..6F200212-200802

main90521-56108iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F200110-201106

36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)

main90254-04002iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

mainSU00200725iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)

main90564-25001iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

T=0.05

main90564-25002iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F200110-201106

T=0.1

main90564-25003iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F200110-201106

T=0.2

main90564-25004iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

T=0.5

mainSU00200838iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

T=1.50

mainSU00200839iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

T=1.60

mainSU00200840iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

T=1.65

mainSU00200841iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

T=1.70

mainSU00200842iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

T=1.80

mainSU00200843iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

T=1.85

36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)

main90564-42001iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

T=0.02-0.08

main90564-42002iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

T=0.07-0.13

main90564-42003iBU410,420200110-201106

T=0.17-0.23

main90564-42004iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

T=0.47-0.53

36811FORK, POWR TAKE-OFF SHIFT, NO.1

main36811-93104iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201106

36814SHAFT, POWR TAKE-OFF FORK, NO.1

main36814-37030iXZU404,412,422..5F;XZU414,424,434..ARL,GEN200110-201106

VACUUM TYPE 25KG

main36814-37030iXZU412,422..6F200401-200802

main36814-37060iXZU412,422..5F;XZU414,424..LHD..GEN200212-201106

MANUAL LEVER TYPE 25KG

main36814-93104iWU420;WU410..65T;WU410..75T..GEN200212-201106

36851RETAINER, POWER TAKE-OFF JOINT

main36851-37010iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

main36851-37030iWU412,422,XZU413,423..5F200610-201106

mainSU00200798iWU412,422,XZU417,423,427,433..6F..(GCC,SA,TAIW)200610-201106

subSU002-00898

8413

8271637480BRACKET, WIRING HARNESS CLAMP, LH

main82716-37480

9003170107

main90031-70107

9003201147

main90032-01147

9010108156

main90101-08156

9011610103

main90116-10103

9011908124

main90119-08124

9011910029

main90119-10029

9017914066

main90179-14066

9020108091

main90201-08091

9020115011

main90201-15011

9021414001

main90214-14001

9038925003

main90389-25003

9040751002

main90407-51002

9050129040

main90501-29040

9413061000

main94130-61000

9451201000

main94512-01000

9453101400

main94531-01400

9710006205

main97100-06205

44 parts on this diagram · 14 diagrams in section
