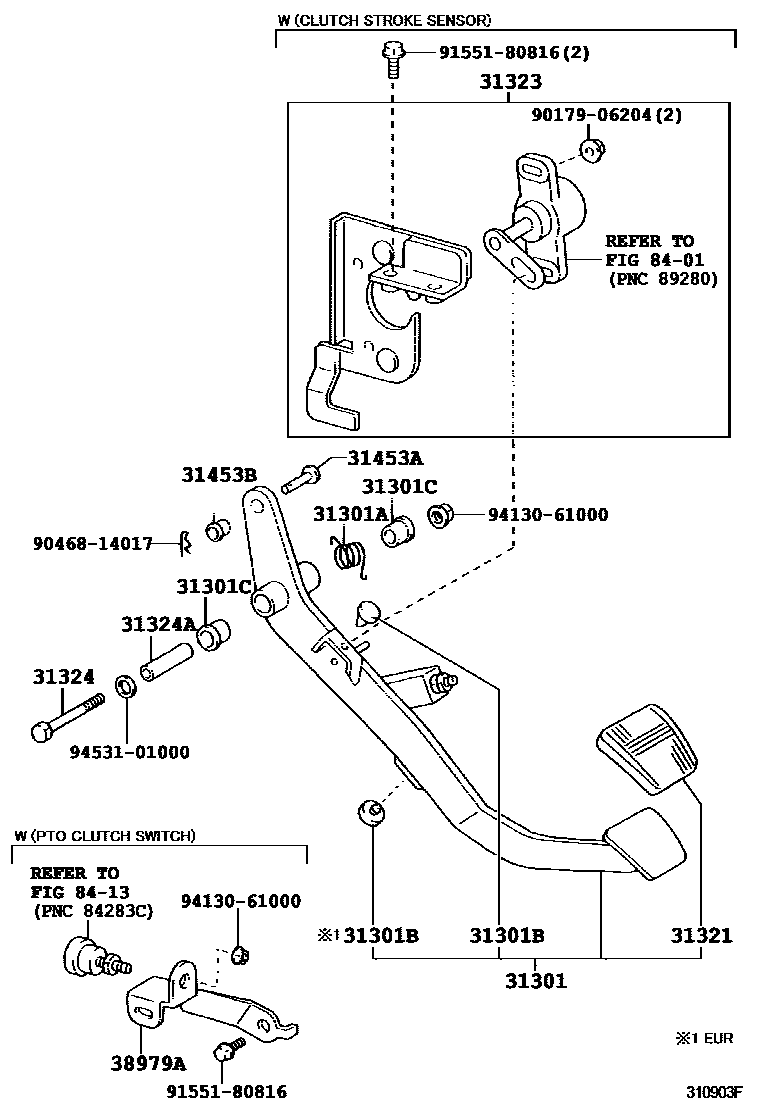

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0004 1TURN OVER 0006 1 0008 1TURN OVER 0009 1 0011 1 0013 1 0014 1 0015 1 0016 1 0017 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37161iXZU404,414,424..RHD..GEN200110-200610

W(PTO CLUTCH SWITCH)

main31301-37161iXZU404,414,424,434..ARL200212-200610

W(PTO)

main31301-37170iXZU404,414,424,434..RHD200110-200610

main31301-37220iXZU412,422..6F200212-201106

main31301-37240iWU410,420,XZU420,430..SA200212-201106

main31301-37260iXZU414,424,434..EUR200110-200905

main31301-37290iXZU417,427200411-200901

W(PTO)

main31301-37310iXZU419,429,439200908-201208

31301ASPRING(FOR CLUTCH PEDAL)

main90507-18032iXZU412,422..6F;WU410,420,XZU420,430..SA200302-201106

main90959-03344iXZU414,424..RHD;XZU414,424..EUR;BU410,420,XZU404,434200110-200505

sub90959-03394

main90959-03394iXZU414,424,434..EUR200506-201208

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iXZU414,424,434..EUR200110-201208

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iXZU414,424,434..EUR200110-201208

31321PAD, CLUTCH PEDAL

main31321-14020iXZU414,424,434..EUR200110-201208

31323BRACKET, CLUTCH PEDAL

main31302-37011iXZU404,414,424..RHD..GEN200212-201208

31324SHAFT, CLUTCH PEDAL

main91112-61070iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iXZU414,424,434..EUR200110-201208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iXZU415,425,435200110-201208

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iXZU414,424,434..EUR200110-201208

38979ABRACKET, POWER TAKE-OFF CLUTCH SWITCH

main38979-37011iXZU404,414,424,434..RHD200212-200610

main38979-37031iXZU417,427200411-200901

main38979-37110iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200212-201106

NO.1

main38979-37120iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200212-201106

NO.2

8401

8413

9017906204

main90179-06204

9046814017

main90468-14017

9155180816

main91551-80816

9413061000

main94130-61000

9453101000

main94531-01000

18 parts on this diagram · 11 diagrams in section
