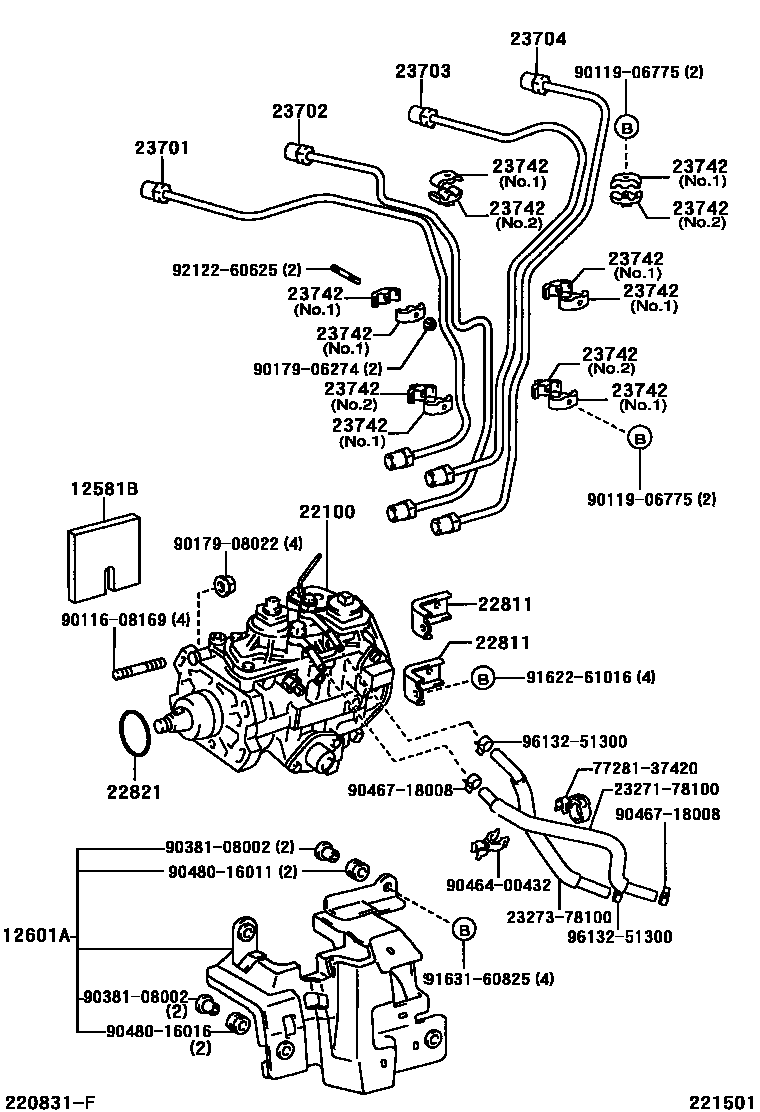

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

12581BINSULATOR, CYLINDER BLOCK, NO.1

main12581-58051i15BFTE..BU410,420200411-200701

12601AINSULATOR, CYLINDER BLOCK

main12601-58011i15BFTE..BU410,420200411-200701

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78290iS05C..XZU412,422..DSL200212-200610

subS2201-08860

main22010-78310iW04D..WU410..75T..SA200308-200812

main22010-78320iJ05C..XZU420,430200410-200802

subS2201-09210

main22010-78330iW04D..WU410..GCC,GEN200212-201106

sub22010-E0510

main22010-78340iS05C..XZU412..RHD..TD200212-200610

subS2201-09080

main22010-78350iS05C..XZU412,422..6F200212-200802

subS2201-09090

main22010-78360iS05C..XZU412..LHD..(55T,65T)200212-200610

ECUADOR SPEC

subS2201-09100

main22010-78370iW04D..WU410..GEN200212-201106

W(HIGH ALTITUDE COMPENSATOR)

sub22010-E0170

main22010-78380iS05C..XZU412,422..GEN..DSL200212-200610

W(HIGH ALTITUDE COMPENSATOR)

subS2201-09070

main22010-78390iJ05C..XZU420,430200304-200410

main22010-78451iW04D..WU412,422200610-201106

sub22010-E0061

main22010-78471iW04D..WU412,422..GEN200610-201106

W(HIGH ALTITUDE COMPENSATOR)

sub22010-E0081

main22100-5C591i15BFTE..BU410,420200411-200701

main22100-78090iS05C..XZU404,414,424,434200110-200211

sub22100-78091

main22100-78091iS05C..XZU404,414,424,434200211-200512

sub22100-78092

main22100-78092iS05C..XZU414,424,434..EUR200512-200610

sub22100-E0070

main22100-78183iN04C..XZU415,425,435200608-200708

sub22100-78184

main22100-78230iN04C..XZU413,417,423,427200610-200708

sub22100-78231

main22100-78231iN04C..XZU413,415,417,423,425,427,435200708-200709

sub22100-78232

main22100-78232iN04C..XZU413,415,417,423,425,427,433,435200709-200803

sub22100-78233

main22100-78233iN04C..XZU41#,42#,43#200803-200805

sub22100-78234

main22100-78234iN04C..XZU41#,42#,43#200805-200905

sub22100-78235

main22100-78235iN04C..XZU41#,42#,439200905-200909

sub22100-78236

main22100-78236iN04C..XZU41#,42#,439200909-200912

sub22100-78237

main22100-78237iN04C..XZU41#,42#,439200912-201208

sub22100-E0067

22811STAY, INJECTION PUMP, NO.1

main22801-78060iS05C..XZU412,422..5F200212-200802

NO.2

subS1140-91520

main22811-58060i15BFTE..BU410,420200411-200701

main22811-78010iW04D..WU410..75T..SA200212-201106

subS2234-32060

main22811-78060iS05C..XZU404,414,424,434..ARL,GEN200110-200610

subS1149-12260

main22811-78070iJ05C..XZU420,430200304-200802

subS1149-12340

main22811-78080iS05C..XZU412,422..5F200212-200802

NO.1

subS1149-12330

main82702-37350iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200608-200708

sub82702-E0P50

22821GASKET, INJECTION PUMP

main90301-49003i15BFTE..BU410,420200411-200701

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-58050i15BFTE..BU410,420200411-200701

main23701-78020iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200212-201106

subS2371-11950

main23701-78030iJ05C..XZU420,430200304-200410

subS2370-12041

main23701-78050iS05C..XZU414,424,434..EUR200110-200610

subS2371-12570

main23701-78060iS05C..XZU412,422..DSL200212-200610

subS2370-12210

main23701-78070iS05C..XZU412,422..6F200212-200802

subS2370-12260

main23701-78090iN04C..XZU415,425,435200608-200708

subS2371-12650

main23701-78110iJ05C..XZU420,430200410-200802

main23701-78120iW04D..WU412,422200610-201106

sub23701-E0020

main23701-78131iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201101

sub23701-E0012

main23701-E0012iN04C..XZU41#,42#,439201101

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-58050i15BFTE..BU410,420200411-200701

main23702-78020iW04D..WU410..75T..SA200212-201106

subS2371-21940

main23702-78030iJ05C..XZU420,430200304-200410

subS2370-21981

main23702-78050iS05C..XZU404,414,424,434..ARL,GEN200110-200610

subS2371-22550

main23702-78060iS05C..XZU412,422..DSL200212-200610

subS2370-22140

main23702-78070iS05C..XZU412,422..5F..TD200212-200802

subS2370-22190

main23702-78090iN04C..XZU415,425,435200608-200708

subS2371-22620

main23702-78110iJ05C..XZU420,430200410-200802

main23702-78120iW04D..WU412,422200610-201106

sub23702-E0020

main23702-78131iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201101

sub23702-E0012

main23702-E0012iN04C..XZU41#,42#,439201101

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-58050i15BFTE..BU410,420200411-200701

main23703-78020iW04D..WU410..75T..SA200212-201106

subS2371-31900

main23703-78030iJ05C..XZU420,430200304-200410

subS2370-32020

main23703-78050iS05C..XZU412,422..DSL200212-200610

subS2370-32170

main23703-78060iS05C..XZU412,422..6F200212-200802

subS2370-32220

main23703-78070iW04D..WU412,422200610-201106

sub23703-E0020

main23703-78090iN04C..XZU415,425,435200608-200708

subS2371-32550

main23703-78110iJ05C..XZU420,430200410-200802

main23703-78121iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201101

sub23703-E0012

main23703-E0012iN04C..XZU41#,42#,439201101

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-58050i15BFTE..BU410,420200411-200701

main23704-78020iW04D..WU410..GCC,GEN200212-201106

subS2371-41920

main23704-78030iJ05C..XZU420,430200304-200410

subS2370-42021

main23704-78050iS05C..XZU412,422..DSL200212-200610

subS2370-42170

main23704-78060iS05C..XZU412,422..6F200212-200802

subS2370-42220

main23704-78080iN04C..XZU415,425,435200608-200708

subS2371-42570

main23704-78100iJ05C..XZU420,430200410-200802

main23704-78110iW04D..WU412,422200610-201106

sub23704-E0020

main23704-78121iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201101

sub23704-E0012

main23704-E0012iN04C..XZU41#,42#,439201101

23742CLAMP, INJECTION PIPE, NO.2

main23741-58020i15BFTE..BU410,420200411-200701

NO.1

main23742-58030i15BFTE..BU410,420200411-200701

NO.2

main23742-66020iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200212-200802

main90034-61058iW04D..WU412,422200610-201106

subS7990-42680

main90034-68026iN04C..XZU415,425,435200608-200708

main90929-01057iW04D..WU410..75T..SA200212-201106

subS7990-41940

2327178100VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-78100

2327378100VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3

main23273-78100

7728137420BRACKET, FUEL MAIN TUBE, NO.1

main77281-37420

9011608169

main90116-08169

9011906775

main90119-06775

9017906274

main90179-06274

9017908022

main90179-08022

9038108002

main90381-08002

9046400432

main90464-00432

9046718008

main90467-18008

9048016011

main90480-16011

9048016016

main90480-16016

9162261016

main91622-61016

9163160825

main91631-60825

9212260625

main92122-60625

9613251300

main96132-51300

26 parts on this diagram · 12 diagrams in section
