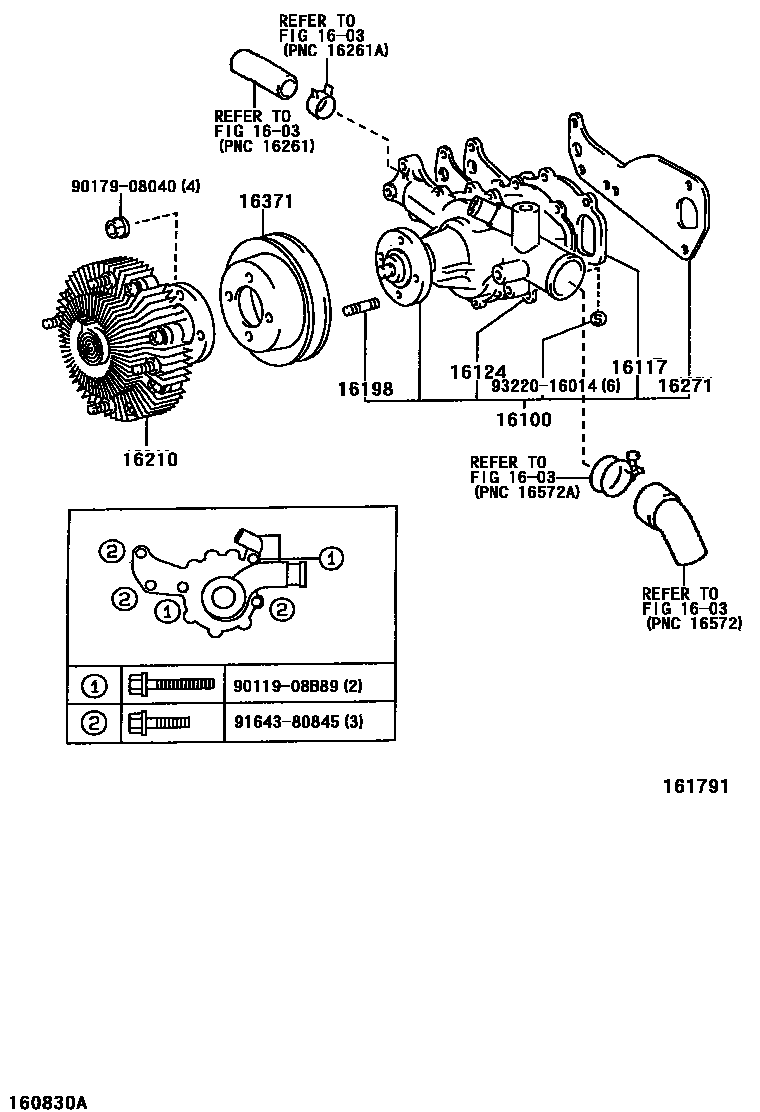

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-59295i15BFTE..BU410,420200411-200701

main16100-78011iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200212-201010

sub16100-E0151

main16100-78050iJ05C..XZU420,430200304-200802

sub16100-78051

main16100-78050iS05C..XZU414,424,434..EUR200110-200802

W(FRONT HEATER)

sub16100-78051

main16100-78060iS05C..XZU412,422;S05C..XZU414,424..LHD..GEN200212-200303

sub16100-78070

main16100-78070iS05C..XZU412,422..6F200303-200802

sub16100-78071

main16100-78100iW04D..WU412,422200610-200907

sub16100-78101

main16100-78101iW04D..WU412,422200907-201106

sub16100-E0341

main16100-78110iN04C..XZU413,415,417,423,425,427,433,435..DCRTK200608-200903

sub16100-78111

main16100-78111iN04C..XZU41#,42#,435200903-200907

sub16100-78112

main16100-78112iN04C..XZU41#,42#,439200907-201011

sub16100-78170

main16100-78170iN04C..XZU41#,42#,439201011

sub16100-E0B60

main16100-E0151iW04D..WU410201010-201106

sub16100-E0152

16117PLATE, WATER PUMP

main16117-58090i15BFTE..BU410,420200411-200701

16124GASKET, WATER PUMP COVER

main16124-58090i15BFTE..BU410,420200411-200701

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170i15BFTE..BU410,420200411-200701

16210COUPLING ASSY, FLUID

main16210-58060i15BFTE..BU410,420200411-200701

sub16210-58070

main16250-78090iJ05C..XZU420,430200212-200802

subS1625-01670

main16250-78100iS05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN200212-200802

subS1625-01630

main16250-78110iN04C..XZU415,425,435200608-200805

sub16250-78111

main16250-78111iN04C..XZU41#,42#,43#200805-201107

sub16250-E0251

main16250-78120iS05C..XZU404,414,424,434200110-200212

sub16250-78100

main16250-78200iW04D..WU412,422..GCC200610-201106

sub16250-E0280

main16250-E0251iN04C..XZU419,429,439201107

16271GASKET, WATER PUMP

main16271-58010i15BFTE..BU410,420200411-200701

16371PULLEY, FAN

main16173-78010iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200212-201106

subS1617-32110

main16173-78020iW04D..WU412,422200610-201106

subS1617-33280

main16308-78020iJ05C,S05C..XZU412,420,422,430..6F200110-200802

subS1610-51120

main16308-78030iN04C..XZU415,425,435200608-201106

subS1610-51140

main16371-58090i15BFTE..BU410,420200411-200701

mainS161051140iN04C..XZU419,429,439201106

sub16107-E0040

9011908B89

main90119-08B89

9017908040

main90179-08040

9164380845

main91643-80845

9322016014

main93220-16014

12 parts on this diagram · 5 diagrams in section
