WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1BODY 0006 1CLAMP & BRACKET 0007 1CLAMP & BRACKET 0008 1CONNECTOR

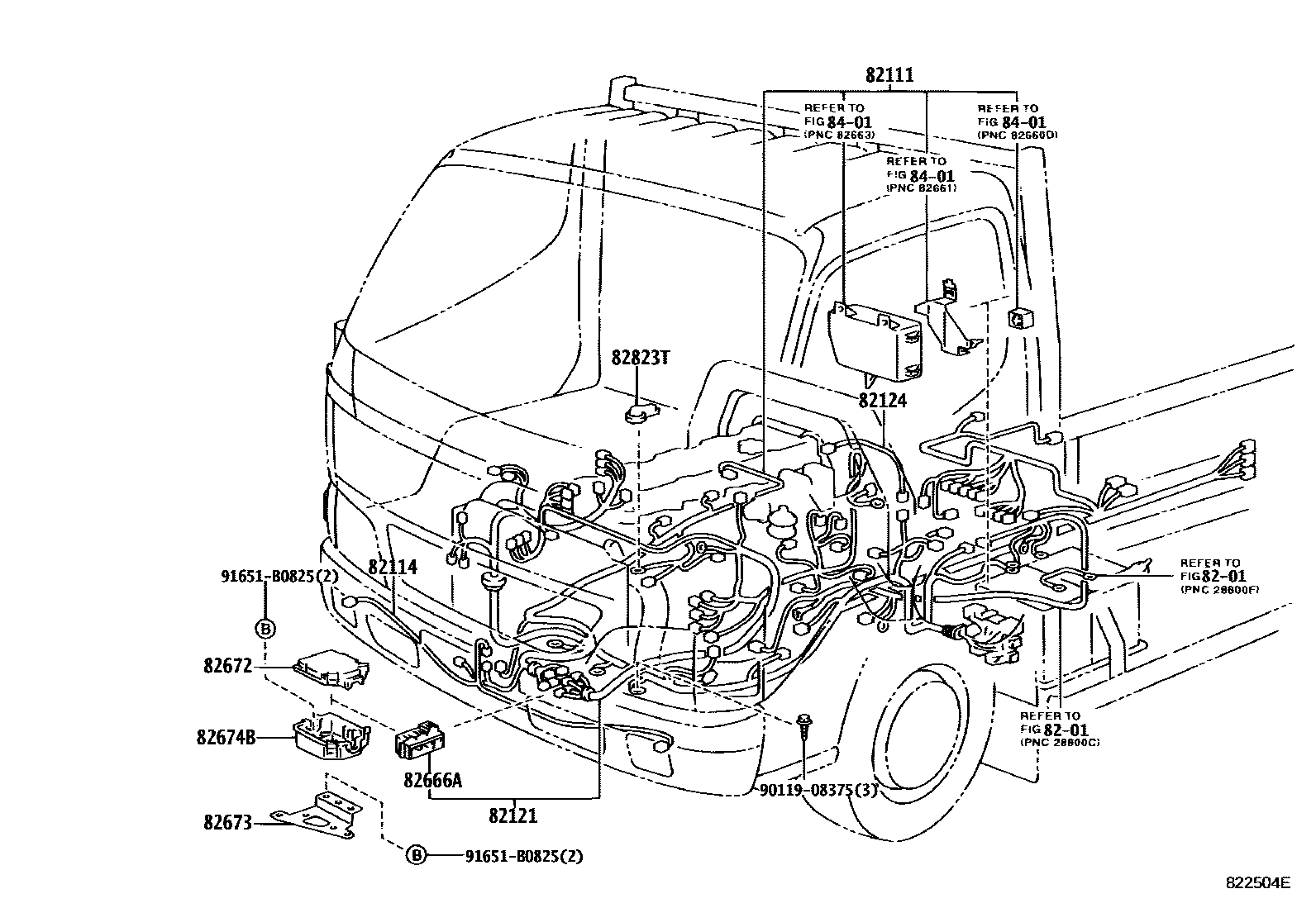

8201

82111WIRE, ENGINE ROOM MAIN

main82111-37461iXZU402,411,412..MTM200010-200206

main82111-37471iXZU402,411,412..MTM200010-200206

W(24V-85A ALTERNATOR)

main82111-37480iXZU411..ATM200010-200206

main82111-37490iXZU411..ATM200010-200206

W(24V-85A ALTERNATOR)

main82111-37541iXZU410,420,430200010-200206

main82111-37551iXZU410,420,430200010-200206

W(24V-85A ALTERNATOR)

main82111-37810iXZU402,411,412..MTM200010-200206

AUSTRALIA SPEC

main82115-37620iXZU411..ATM200010-200206

AUSTRALIA SPEC

main82115-37630iXZU410,420,430200010-200206

AUSTRALIA SPEC

82114WIRE, ENGINE ROOM, NO.4

main82114-37030iXZU402,41#,420,430200010-200206

82121WIRE, ENGINE

main82121-3V300iXZU411200010-200105

main82121-3V301iXZU411200105-200206

main82121-3V311iXZU410,420,430200010-200206

main82121-3V330iXZU402,412200010-200105

main82121-3V331iXZU402,412200105-200206

82124WIRE, ENGINE, NO.4

main82124-37230iXZU402,411,412200010-200206

main82124-37250iXZU410,420,430200010-200206

82666AHOLDER, CONNECTOR NO.2

main82666-37130iXZU402,41#,420,430200010-200206

82672COVER, JUNKTION BLOCK

main82672-37030iXZU402,41#,420,430200010-200206

82673BRACKET, JUNCTION BLOCK

main82673-37030iXZU402,41#,420,430200010-200206

82674BCOVER, JUNCTION BLOCK, LOWER

main82674-37010iXZU402,41#,420,430200010-200206

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iXZU402,41#,420,430200010-200206

8401

9011908375

main90119-08375

91651B0825

main91651-B0825

13 parts on this diagram · 8 diagrams in section
