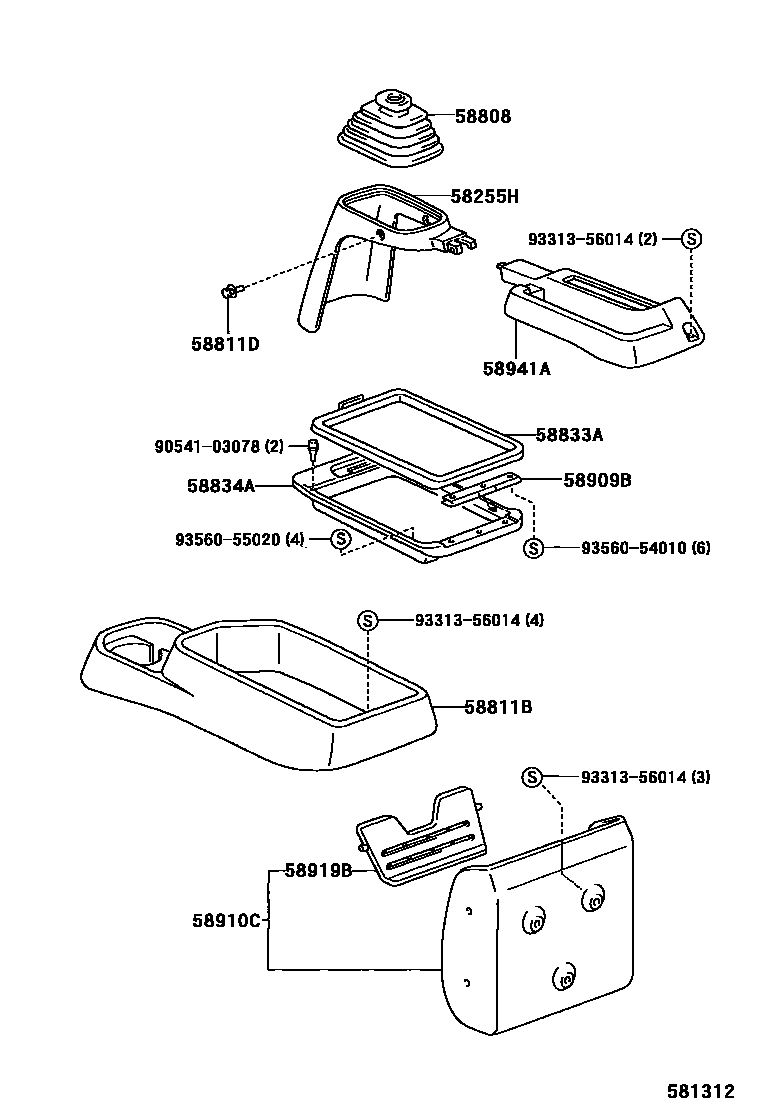

CONSOLE BOX & BRACKET

58255HCOVER, SHIFT LEVER BOOT

main58255-37020-B0iXZU402,41#,420,430200010-200206

DK.CHARCOAL,TRIM1#

sub58255-37021

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-37020-B0iXZU402,41#,420,430..MTM200010-200206

DK.CHARCOAL,TRIM1#

sub58808-37021

58811BBOX, CONSOLE

main58811-37040-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

sub58811-37041

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-B0iXZU402,41#,420,430200010-200206

DK.CHARCOAL,TRIM1#

sub90467-07191

58833ACOVER, CONSOLE, UPPER

main58833-37040-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

sub58833-37041

58834ACOVER, CONSOLE, LOWER

main58834-37030-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

sub58834-37031

58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT

main58909-37020iXZU402,41#,420,430200010-200206

58910CBOX ASSY, CONSOLE, REAR

main58910-37010-B1iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

58919BPLATE, CONSOLE BOX

main58919-37030-B1iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58941-37030-B0iXZU402,41#,420,430200010-200206

DK.CHARCOAL,TRIM1#

9054103078

main90541-03078

9331356014

main93313-56014

9356054010

main93560-54010

9356055020

main93560-55020

14 parts on this diagram · 1 diagram in section
