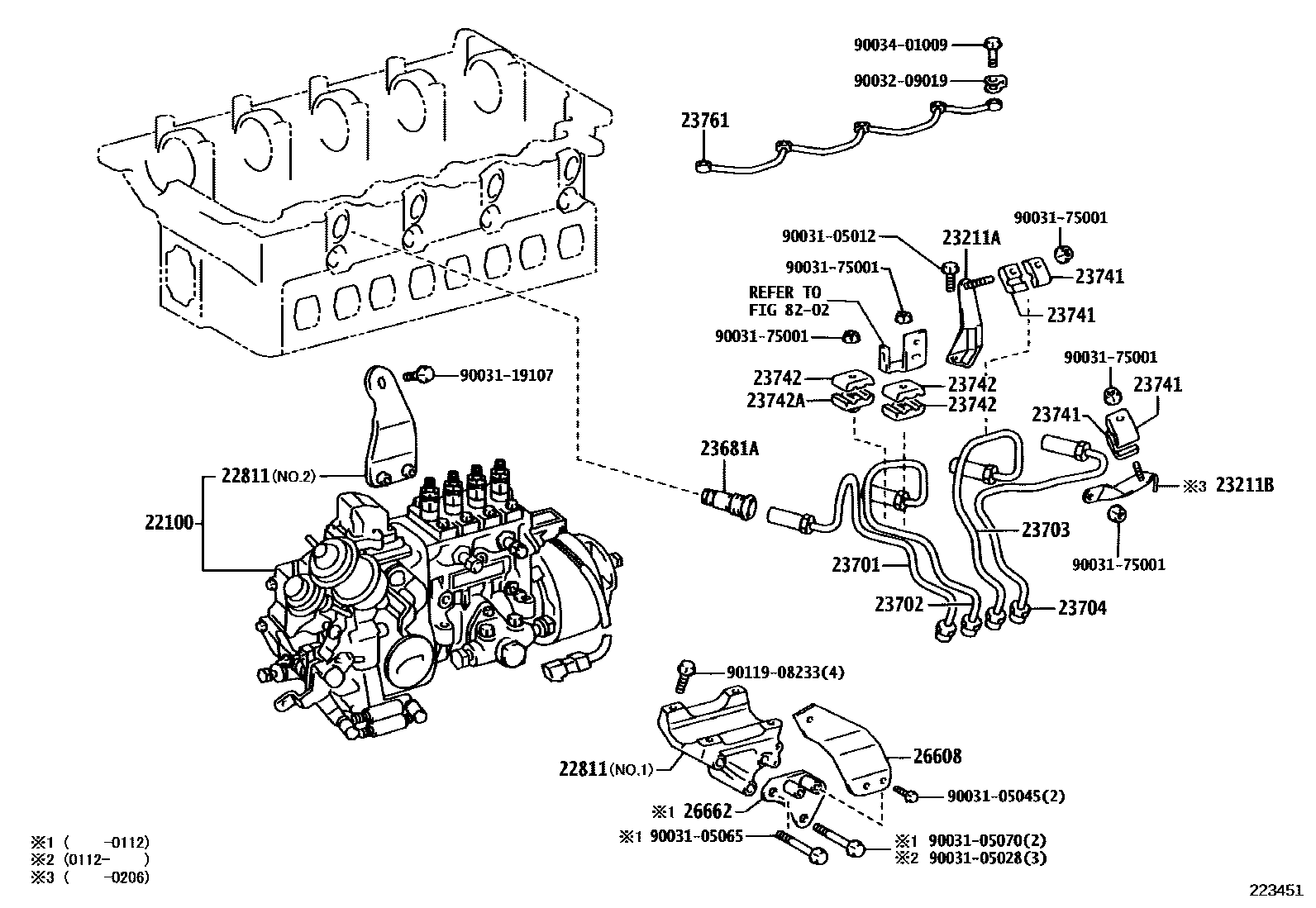

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78260iJ05C..XZU410,420,430200010-200206

sub22010-78261

main22010-78270iJ05C..XZU410,420,430200010-200206

W(IDLE UP FRONT HEATER)

sub22010-78271

main22100-78052iS05D..XZU411200010-200105

sub22100-78100

sub82711-1E360

sub90980-11073

main22100-78072iS05C..XZU402,412200010-200105

sub22100-78120

sub82711-1E360

sub90980-11073

main22100-78100iS05D..XZU411200105-200206

sub22100-E0150

main22100-78120iS05C..XZU402,412200105-200206

sub22100-E0130

22811STAY, INJECTION PUMP, NO.1

main22801-78010iS05#..XZU402,411,412200010-200206

main22811-78020iJ05C..XZU410,420,430200010-200112

NO.1

main22811-78070iJ05C..XZU410,420,430200112-200206

NO.1

subS1149-12340

23211ABRACKET(FOR INJECTION PIPE NO.3)

main23211-78020iS05#..XZU402,411,412200010-200206

subS1549-28040

main23211-78040iJ05C..XZU410,420,430200010-200206

subS1549-27571

23211BBRACKET(FOR INJECTION PIPE NO.4)

main23211-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1549-27581

23681ASEAL, NOZZLE HOLDER

main23681-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2307-41070

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78030iJ05C..XZU410,420,430200010-200206

subS2370-12041

main23701-78041iS05#..XZU402,411,412200010-200206

subS2370-12051

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78030iJ05C..XZU410,420,430200010-200206

subS2370-21981

main23702-78040iS05#..XZU402,411,412200010-200206

subS2370-21990

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78030iJ05C..XZU410,420,430200010-200206

subS2370-32020

main23703-78040iS05#..XZU402,411,412200010-200206

sub23703-78041

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78030iJ05C..XZU410,420,430200010-200206

subS2370-42021

main23704-78040iS05#..XZU402,411,412200010-200206

sub23704-78041

23741CLAMP, INJECTION PIPE, NO.1

main90034-68024iJ05C..XZU410,420,430200010-200206

23742CLAMP, INJECTION PIPE, NO.2

main23742-66020iS05#..XZU402,411,412200010-200206

23742ACLAMP, INJECTION PIPE, NO.3

main23742-78020iS05#..XZU402,411,412200010-200206

subS7990-44120

main23742-78040iJ05C..XZU410,420,430200010-200206

subS7990-44110

23761PIPE, NOZZLE LEAKAGE, NO.1

main23761-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2308-12510

26608BRACKET SUB-ASSY, ACCELERATOR WIRE

main26608-78030iJ05C..XZU410,420,430200010-200206

26662BRACKET, ACCELERATOR WIRE

main26662-78010iJ05C..XZU410,420,430200010-200112

8202

9003105012

main90031-05012

9003105028

main90031-05028

9003105045

main90031-05045

9003105065

main90031-05065

9003105070

main90031-05070

9003119107

main90031-19107

9003175001

main90031-75001

9003209019

main90032-09019

9003401009

main90034-01009

9011908233

main90119-08233

26 parts on this diagram · 3 diagrams in section
