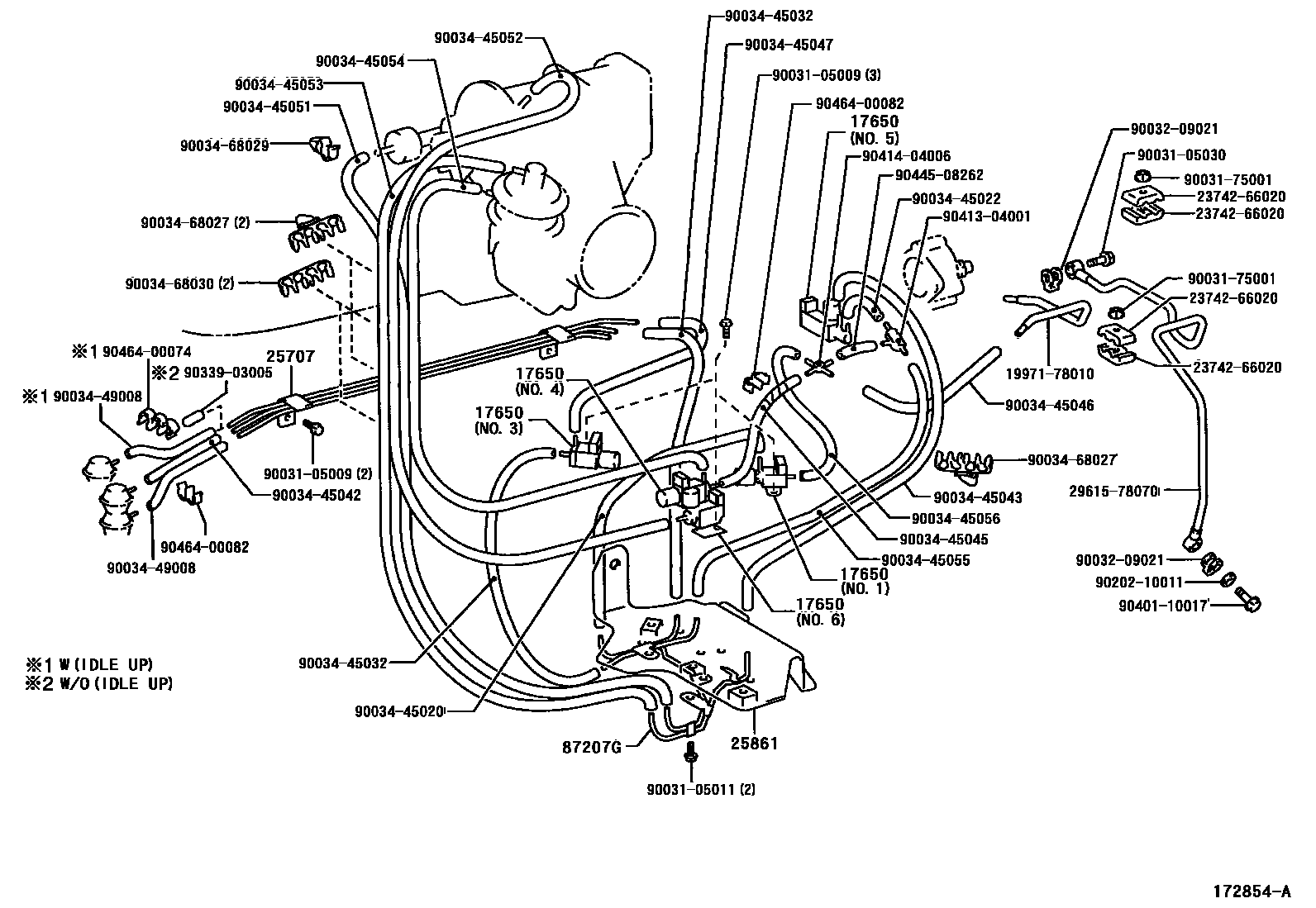

VACUUM PIPING

0001 1 0002 1

17650VALVE ASSY, VACUUM SWITCHING

main89470-37010iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

subS2761-03870

main89470-37030iJ05C..XZU410,420,430200010-200206

NO.3

main89470-37040iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.4

main89470-37050iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.5

main89470-37060iS05#..XZU402,411,412200010-200206

NO.6

main89470-37080iJ05C..XZU410,420,430200010-200206

NO.6

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main29602-78020iJ05C..XZU410,420,430200010-200206

subS4470-81542

25861BRACKET, VACUUM SWITCHING VALVE

main25861-78050iJ05C..XZU410,420,430200010-200206

subS2204-41490

87207GPIPE SUB-ASSY, VACUUM

main87207-3V100iXZU410,420,430200010-200206

1997178010PIPE, VACUUM(FOR VENTURI)

main19971-78010

2374266020CLAMP, INJECTION PIPE, NO.2

main23742-66020

2961578070PIPE, VACUUM PUMP OIL

main29615-78070

9003105009

main90031-05009

9003105011

main90031-05011

9003105030

main90031-05030

9003175001

main90031-75001

9003209021

main90032-09021

9003445020

main90034-45020

9003445022

main90034-45022

9003445032

main90034-45032

9003445042

main90034-45042

9003445043

main90034-45043

9003445045

main90034-45045

9003445046

main90034-45046

9003445047

main90034-45047

9003445051

main90034-45051

9003445052

main90034-45052

9003445053

main90034-45053

9003445054

main90034-45054

9003445055

main90034-45055

9003445056

main90034-45056

9003449008

main90034-49008

9003468027

main90034-68027

9003468029

main90034-68029

9003468030

main90034-68030

9020210011

main90202-10011

9033903005

main90339-03005

9040110017

main90401-10017

9041304001

main90413-04001

9041404006

main90414-04006

9044508262

main90445-08262

9046400074

main90464-00074

9046400082

main90464-00082

38 parts on this diagram · 2 diagrams in section
