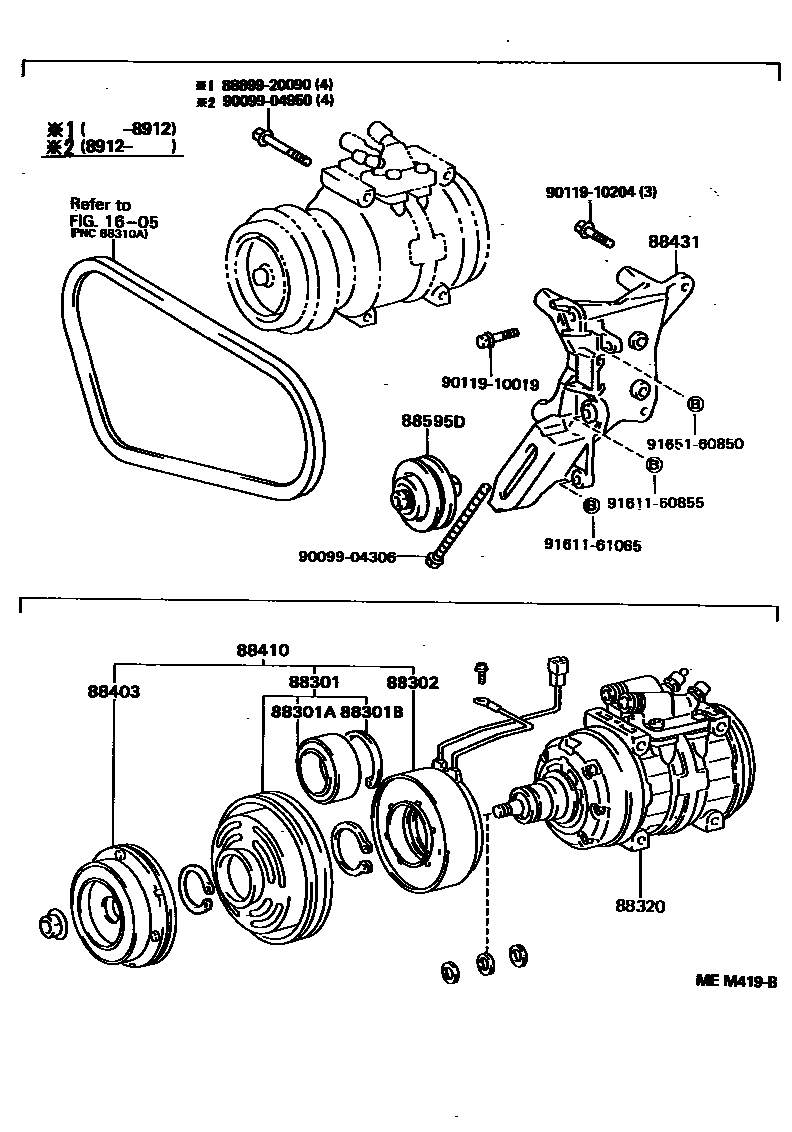

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14020iRU85..SA198808-199309

sub88412-36030

main88412-22030iRU85..GEN198808-199505

88301ABEARING (FOR MAGNET CLUTCH)

main90099-10133iRU85..GEN;YU62..ARL198808-199505

88301BRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iRU85..GEN;YU62..ARL198808-199505

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iRU85..GEN198808-199505

main88411-60040iYU6#,71,82..GEN,SA198808-199505

88320COMPRESSOR ASSY, COOLER

main88320-36191iRU85..GEN198808-199309

main88320-36201iWU9#199004-199301

main88320-36290iYU6#,71,82..GEN,SA198808-199505

main88320-36410iYU6#,8#199309-199505

main88320-36420iRU85..GEN199309-199505

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iRU85,YU6#,71,82198808-199505

88410CLUTCH ASSY, MAGNET

main88410-14100iRU85..GEN198808-199309

main88410-14150iWU9#199004-199301

main88410-22080iRU85..GEN198808-199505

sub88410-60140

main88410-36390iYU6#,8#199309-199505

main88410-36400iRU85..GEN199309-199505

main88410-60140iYU6#,71,82198808-199309

sub88410-36390

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26150iRU85..SA198808-199309

main88431-28070iYU6#,71,8#198808-199505

main88431-36200iWU9#199004-199301

88595DPULLEY ASSY, IDLE

main88440-12160iWU9#199004-199301

main88440-35010iRU85198808-199309

main88440-35020iRU85..GEN198808-199505

8889920090COVER, EVAPORATOR

main88899-20090

9009904306

main90099-04306

9009904950

main90099-04950

9011910019

main90119-10019

9011910204

main90119-10204

9161160855

main91611-60855

9161161065

main91611-61065

9165160850

main91651-60850
