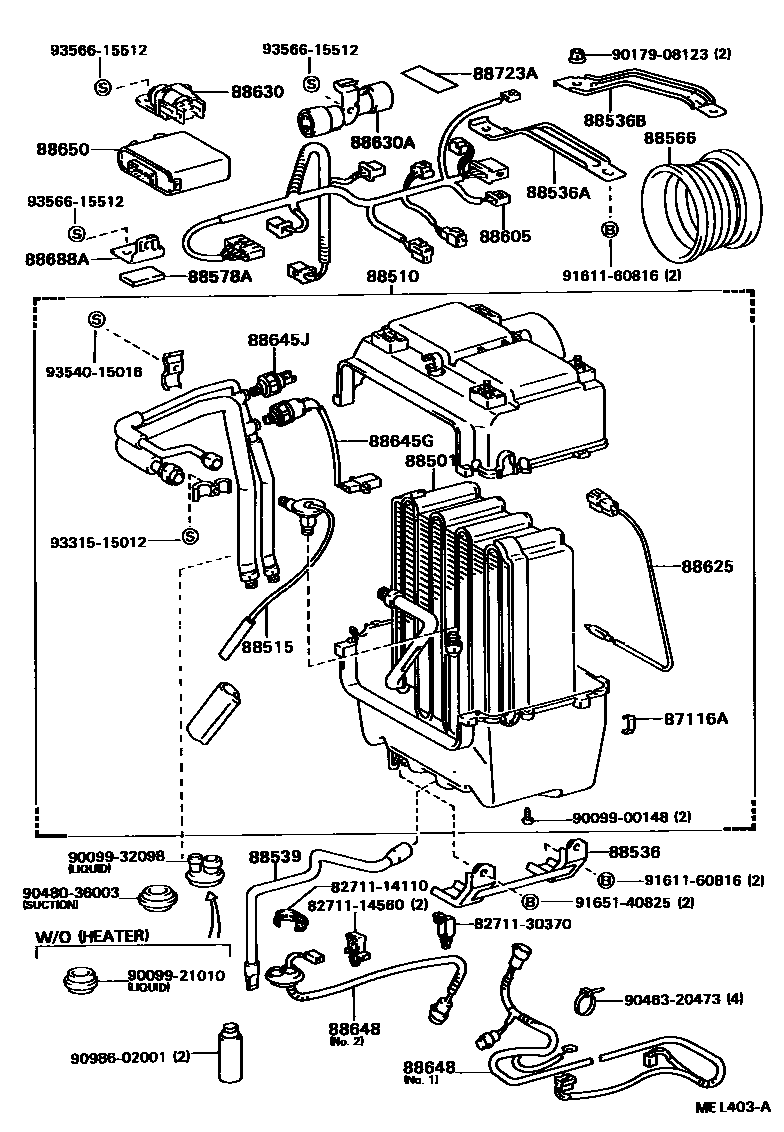

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iRU85..GEN;YU62..ARL198808-199505

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37020iYU82..RHD..GEN199309-199505

main88501-37030iYU6#,82..LHD199309-199505

main88501-95403iYU62..ARL;RU85,WU9#..GEN198808-199505

88510UNIT ASSY, COOLER

main88510-25020iYU82..RHD..GEN199309-199505

main88510-25030iYU6#,82..LHD199309-199505

main88510-37010iYU85199403-199505

main88510-37020iRU85..GEN199309-199505

W(HEATER)

main88510-95401iRU85..SA198808-199309

main88510-95402iWU9#199004-199301

main88510-95405iRU85..GEN;YU62,82..RHD198808-199309

main88510-95406iYU6#,71,82..LHD198808-199309

88515VALVE, COOLER EXPANSION

main88515-16030iWU9#199004-199301

sub88515-16031

main88515-16031iRU85..GEN;YU62..ARL198808-199505

main88515-28090iYU6#,82..GEN199309-199505

88536BRACKET, COOLING UNIT, NO.1

main88536-95402iWU9#199004-199301

main88536-95403iRU85..SA;YU6#,71,82..GEN,SA198808-199505

88536ABRACKET, COOLING UNIT, NO.2

main88536-95404iYU6#,71,82198808-199505

main88536-95407iRU85..GEN198811-199505

main88536-95408iYU85198808-199505

88536BBRACKET, COOLING UNIT, NO.3

main88536-95405iRU85..GEN;YU62,82..RHD198808-199505

main88536-95406iYU6#,71,82..LHD198808-199505

main88536-95408iRU85..GEN198811-199505

main88536-95409iYU85198808-199505

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95409iYU82..RHD..GEN198808-199505

main88539-95410iYU6#,71,82..LHD198808-199505

main88539-95411iYU85198808-199505

main88539-95412iWU9#199004-199505

88566DUCT, COOLER AIR, NO.1

main88566-95407iYU6#,82..GEN198808-199505

main88566-95408iYU85198808-199505

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400iWU9#;YU62..ARL198808-199505

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-26550iYU6#,82..GEN199309-199505

main88605-37020iRU85..GEN199309-199505

W(HEATER)

main88605-37020iYU85199403-199505

main88605-95404iYU6#,71,82..GEN,SA198808-199309

main88605-95406iWU9#199004-199301

main88605-95407iRU85..SA198808-199309

main88605-95410iYU62..ARL198808-199309

88625THERMISTOR, COOLER, NO.1

main88625-95A00iYU62..ARL198808-199505

sub88625-28150

88630RELAY ASSY, COOLER

main88630-60020iRU85..SA;WU9#,YU6#,71,82198808-199505

88630ARELAY ASSY, COOLER

main88630-95401iRU85,YU62,82..RHD198808-199505

main88630-95403iYU6#,71,82..LHD198808-199505

88645GSWITCH, PRESSURE

main88645-17010iRU85..GEN;YU62..ARL198808-199505

main88645-20050iYU6#,82..GEN199309-199505

88645JSWITCH, PRESSURE, NO.2

main88645-95J00iRU85..GEN;YU62..ARL198808-199505

sub88645-12020

88648WIRING, COOLER, NO.1

main88648-95406iWU9#199004-199301

main88648-95408iRU85..SA198808-199505

main88648-95409iYU62..ARL198808-199505

main88648-95411iWU9#199004-199301

main88648-95412iYU85198808-199505

main88648-95422iYU71;YU82..SA198808-199505

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iWU9#199004-199301

main88650-87101iRU85..SA;YU6#,71,82..GEN,SA198808-199505

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-95425iRU85..SA;YU6#,71,82198808-199505

88723ALABEL, COOLER SERVICE CAUTION

main88723-12030iRU85,YU6#,82..LHD199001-199309

main88723-12040iYU62..ARL199109-199204

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

8271130370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30370

9009900148

main90099-00148

9009921010

main90099-21010

9009932098

main90099-32098

9017908123

main90179-08123

9046320473

main90463-20473

9048036003

main90480-36003

9098602001

main90986-02001

9161160816

main91611-60816

9165140825

main91651-40825

9331515012

main93315-15012

9354015016

main93540-15016

9356615512

main93566-15512

35 parts on this diagram · 3 diagrams in section
