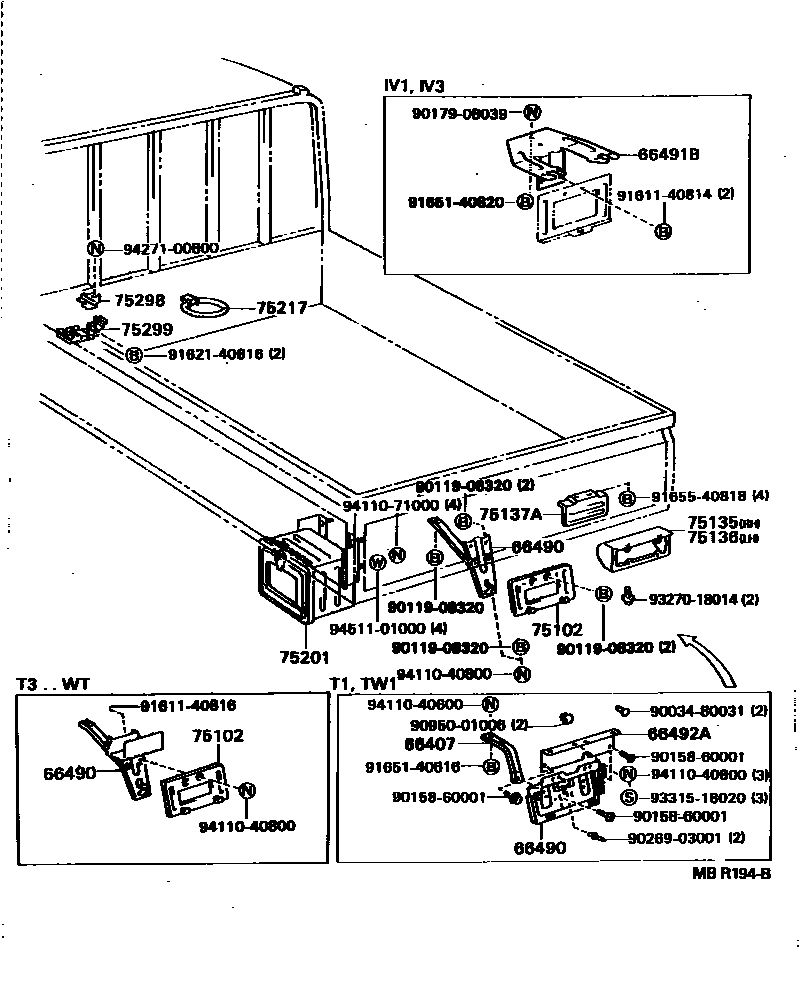

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1 0004 1

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66493-92701iYU82..CBU198808-199505

main66493-95418iYU62..TW1198808-199505

66490HANGER ASSY, LICENSE PLATE BRACKET

main66490-95408iYU62..T3..ST..CBU198808-199505

main66490-95410iYU62..WT..CBU198808-199505

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iYU62,82..IV3198808-199505

66492ABRACKET, LICENSE HANGER

main66492-95400iYU62..TW1198808-199505

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92802iRU85,YU85198808-199505

main66490-95018iYU62..TW1198808-199505

main75102-25020iYU62..T3;YU82..IV3198808-199505

main75102-92605iYU71198808-199309

main75102-92800iYU63198808-199505

main75102-92801iYU82..CBU198808-199505

75135BRACKET, COMBINATION REAR LAMP, RH

main75105-92700iYU82..CBU198808-199505

W(REAR SCHNORKEL AIR CLEANER)

sub75105-37030

main75105-92802iYU82..CBU198808-199505

main75105-93100iYU63198808-199505

main75135-95412iYU62..T3..CBU198808-199505

75136BRACKET, COMBINATION REAR LAMP, LH

main75105-92700iYU82..CBU198808-199505

W(REAR SCHNORKEL AIR CLEANER)

sub75105-37030

main75106-92802iYU82..CBU198808-199505

main75106-93100iYU63198808-199505

main75135-95412iYU62..T3..CBU198808-199505

75137ACOVER COMBINATION

main75137-93100iYU63198808-199505

main75137-95400iYU62..CBU198808-199505

75201BOX SUB-ASSY, TOOL W/STAY

main75021-93106iYU63198808-199505

main75210-92704iYU62..T3..GEN198808-199505

main75210-92804iRU85,YU8#198808-199505

75217BAND, TOOL BAG

main58705-92601iYU71198808-199309

main58705-95A01iRU85,WU9#,YU6#,8#198808-199505

75298PLATE, JACK HOLDER

main75298-95400iYU62..T3..GEN;RU85,YU63,71,8#198808-199505

main75298-95401iWU9#198808-199305

75299BASE, JACK HOLDER

main75209-95405iWU9#198808-199305

main75299-92600iYU71198808-199309

sub75299-95401

main75299-95400iYU6#,82..WT..(GEN,SA)198808-199505

main75299-95401iYU62..T3..ST198808-199505

sub75299-37060

main75299-95402iRU85,YU85198808-199505

main75299-95407iYU62..ARL198808-199204

9003480031

main90034-80031

9011908320

main90119-08320

9015860001

main90158-60001

9017908039

main90179-08039

9026903001

main90269-03001

9095001006

main90950-01006

9161140814

main91611-40814

9161140816

main91611-40816

9162140816

main91621-40816

9165140616

main91651-40616

9165140820

main91651-40820

9165540818

main91655-40818

9327018014

main93270-18014

9331518020

main93315-18020

9411040600

main94110-40600

9411040800

main94110-40800

9411071000

main94110-71000

9427100800

main94271-00800

9451101000

main94511-01000

31 parts on this diagram · 4 diagrams in section
