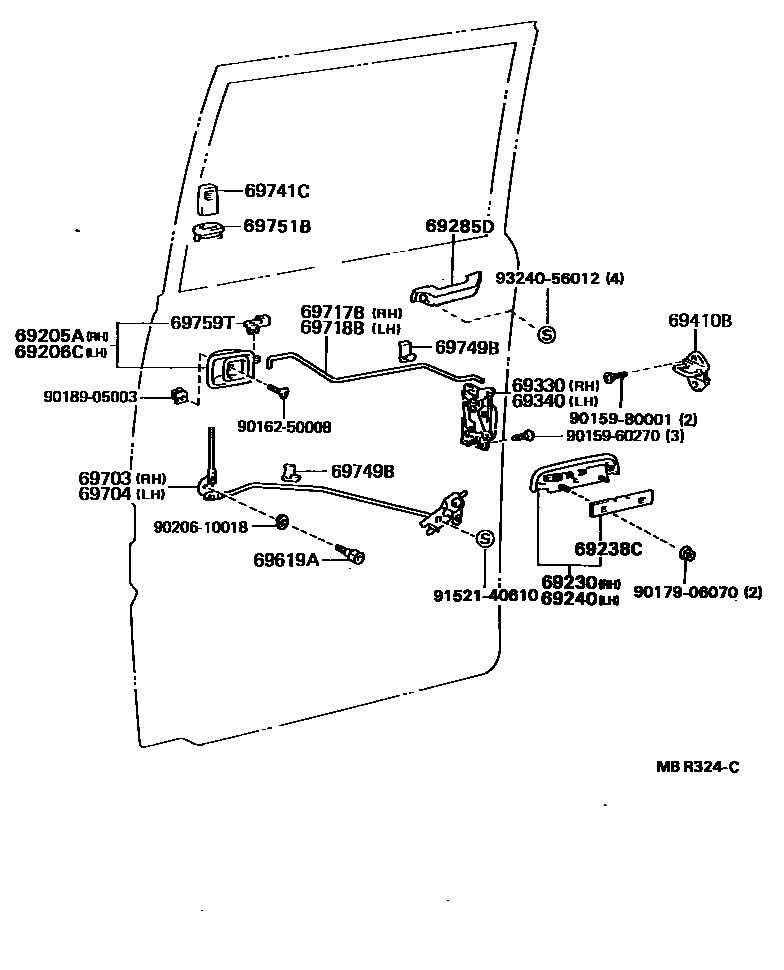

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69238CPAD, DOOR OUTSIDE HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69285DHANDLE, PULL
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69619ABOLT
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
9015960270
main90159-60270
9015980001
main90159-80001
9016250008
main90162-50008
9017906070
main90179-06070
9018905003
main90189-05003
9020610018
main90206-10018
9152140610
main91521-40610
9324056012
main93240-56012
26 parts on this diagram · 2 diagrams in section
