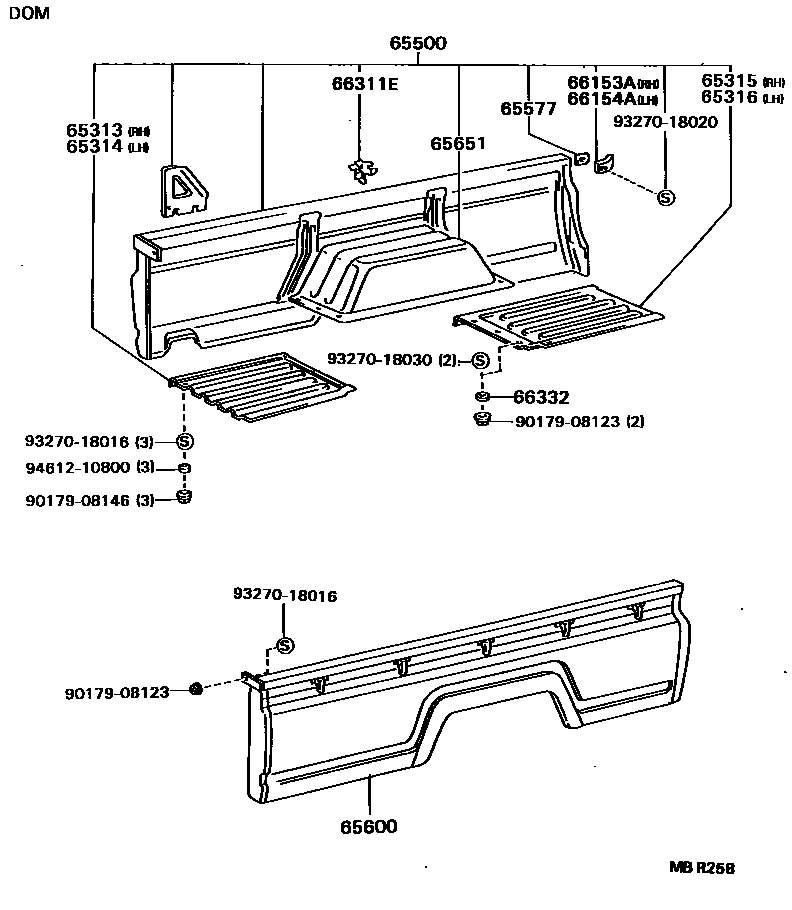

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-37060iYU62..TW1199210-199505

main65313-95409iYU62..TW1198808-199210

sub65313-37060

65314PANEL, FLOOR FRONT CORNER, LH

main65314-37020iYU62..TW1199210-199505

main65314-95408iYU62..TW1198808-199210

sub65314-37020

65315PANEL, FLOOR REAR CORNER, RH

main65315-60010iYU62..TW1199210-199505

main65315-95407iYU62..TW1198808-199210

sub65315-37010

65316PANEL, FLOOR REAR CORNER, LH

main65316-60010iYU62..TW1199210-199505

main65316-95407iYU62..TW1198808-199210

sub65316-37010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37040iYU62..T3..CBU199104-199505

main65500-37070iYU82..CBU199109-199505

main65500-37100iRU85..CBU199109-199505

main65500-37140iYU62..TW1199210-199505

main65500-92849iRU85..CBU198808-199109

main65500-92858iYU82..CBU198808-199109

main65500-93113iYU63198808-199505

main65500-95429iYU62..TW1198808-199210

sub65500-37140

main65500-95432iYU62..T3..CBU198808-199104

sub65500-37040

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iYU62..TW1198808-199505

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-37040iYU62..T3..CBU199104-199505

main65600-37070iYU82..CBU199109-199505

main65600-37100iRU85..CBU199109-199505

main65600-37140iYU62..TW1199210-199505

main65600-92849iRU85..CBU198808-199109

main65600-92858iYU82..CBU198808-199109

main65600-93114iYU63198808-199505

main65600-95422iYU62..TW1198808-199210

sub65600-37140

main65600-95424iYU62..T3..CBU198808-199104

sub65600-37040

65651PANEL, WHEEL HOUSE

main65651-37010iYU62..TW1199210-199505

main65651-95014iYU62..TW1198808-199210

sub65651-37010

66153ALATCH, TAIL GATE FEMALE, RH

main66153-95012iYU62..TW1198808-199505

main66153-95111iYU62..T3..CBU198808-199505

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iYU62..TW1198808-199505

main66154-95111iYU62..T3..CBU198808-199505

66311EHOOK, ROPE

main66311-37010iYU62..T3..CBU199104-199505

main66311-90K00iYU62..TW1199210-199505

main66311-95010iYU62..TW1198808-199210

sub66311-90K00

main66311-95400iYU62..T3..CBU198808-199104

sub66311-37010

66332CUSHION, RUBBER

main66332-95A00iYU62..TW1198808-199505

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

18 parts on this diagram · 4 diagrams in section
