SIDE MEMBER

0001 1 0002 1 0003 1

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95444iRU85,WU9#,YU6#,8#..L2,T3¥17,200198808-199505

sub58011-37010¥17,200

main58011-95448iYU62..TW1¥17,200198808-199505

sub58011-37030¥17,200

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95440iRU85,WU9#,YU6#,8#..L2,T3¥17,200198808-199505

sub58012-37010¥17,200

main58012-95445iYU62..TW1¥17,200198808-199505

sub58012-37040¥17,200

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iRU85,YU62,8#..RHD¥22,700198808-199505

main61023-95401iRU85,WU9#,YU6#,71,82..LHD¥22,700198808-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iRU85,YU62,8#..RHD¥22,700198808-199505

sub61024-95403¥22,700

main61024-95401iRU85,WU9#,YU6#,71,82..LHD¥22,700198808-199505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37010iYU82..RHD..GEN¥41,400198911-199109

W(RADIO)

main61027-37020iRU85,WU9#,YU6#,71,8#¥41,300198910-199505

main61027-37030iYU82..RHD..GEN¥41,300199109-199505

W(RADIO)

main61027-95400iRU85,YU82..SA¥41,400198808-198911

W(RADIO)

sub61027-37010¥41,400

main61027-95401iRU85,WU9#,YU6#,82¥41,400198808-198911

sub61027-37020¥41,300

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37030iWU9#¥41,300199301-199305

W/O RADIO

main61028-37030iRU85,YU6#,71,8#¥41,300199301-199505

main61028-37040iRU85,YU6#,71,82..LHD¥41,300199301-199505

W(RADIO)

main61028-37040iWU9#¥41,300199301-199305

main61028-95400iRU85,YU6#,71,82¥41,300198808-199301

W/O RADIO

sub61028-37030¥41,300

main61028-95401iWU9#¥41,300198808-199301

sub61028-37040¥41,300

main61028-95401iRU85,YU6#,71,82..LHD¥41,300198808-199301

W(RADIO)

sub61028-37040¥41,300

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-95415iYU62..ARL¥1,490198808-199204

61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH

main61108-95416iYU62..ARL¥1,490198808-199204

61177CBRACKET, DOOR CHECK ARM

main61177-37010iRU85,WU9#,YU6#,8#¥620199002-199505

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iYU62..ARL¥1,550198808-199204

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iYU62..ARL¥1,550198808-199204

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iYU62..T3;RU85,WU9#,YU63,71,8#¥6,700198808-199505

main61211-95404iYU62..TW1¥3,050198808-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iYU62..T3;RU85,WU9#,YU63,71,8#¥6,700198808-199505

main61212-95404iYU62..TW1¥3,050198808-199505

61231RAIL, ROOF SIDE, INNER RH

main61203-95400iYU62..TW1¥4,340198808-199505

main61203-95402iWU9#¥3,940199110-199305

TAIWAN PACKAGE

main61231-92600iYU71¥3,120198808-199309

main61231-95405iRU85,YU62,8#..RHD¥3,100198808-199505

main61231-95406iRU85,WU9#,YU6#,82..LHD..(L2,T3)¥3,120198808-199505

61232RAIL, ROOF SIDE, INNER LH

main61204-95401iYU62..TW1¥4,340198808-199505

main61204-95403iWU9#¥3,940199110-199305

TAIWAN PACKAGE

main61232-95405iYU62..T3..GEN;RU85,WU9#,YU63,71,82..LHD¥3,120198808-199505

sub61232-95406¥3,120

main61232-95406iRU85,YU62,8#..RHD¥3,120198808-199505

61261CHANNEL, ROOF DRIP, RH

main61261-37010iYU71¥4,040199008-199309

main61261-92602iYU71¥4,110198808-199008

sub61261-37010¥4,040

main61261-95407iRU85,WU9#,YU6#,8#¥3,040198808-199505

61262CHANNEL, ROOF DRIP, LH

main61262-37010iYU71¥4,040199008-199309

main61262-92602iYU71¥4,110198808-199008

sub61262-37010¥4,040

main61262-95407iRU85,WU9#,YU6#,8#¥3,040198808-199505

61267BCHANNEL, ROOF DRIP SIDE,REAR RH

main61267-95400iRU85,WU9#,YU6#,8#..L2,T3¥1,670198808-199505

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-37010iYU71¥5,100199008-199309

main61268-92601iYU71¥5,100198808-199008

sub61268-37010¥5,100

61268ACHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iRU85,WU9#,YU6#,8#..L2,T3¥1,670198808-199505

61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH

main61991-37010iYU62..ARL¥620199203-199204

main61991-95400iYU62..ARL¥620198808-199203

sub61991-37010¥620

61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH

main61992-37010iYU62..ARL¥620199203-199204

main61992-95400iYU62..ARL¥620198808-199203

sub61992-37010¥620

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-92604iYU71¥22,600198808-199309

sub64015-92603¥22,600

sub90333-20001¥70

main64015-95400iYU6#,82..(L2,T3)..(GEN,SA)¥9,100198808-199505

sub64015-95411¥18,900

main64015-95401iYU62..ARL¥9,100198808-199204

sub64015-95411¥18,900

main64015-95401iYU6#,82..LHD..(L2,T3)¥9,100198808-199505

SAUDI ARABIA & GULF SPEC

sub64015-95411¥18,900

main64015-95402iRU85,YU85¥9,100198808-199505

main64015-95403iRU85..GEN¥9,100198808-199505

SAUDI ARABIA & GULF SPEC

main64015-95403iWU9#¥9,100199102-199305

main64015-95409iWU9#¥19,000199110-199305

TAIWAN PACKAGE

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-92604iYU71¥22,600198808-199309

sub64016-92603¥22,600

sub90333-20001¥70

main64016-95400iYU6#,82..(L2,T3)..(GEN,SA)¥9,100198808-199505

sub64016-95404¥9,100

main64016-95401iYU62..ARL¥9,100198808-199204

sub64016-95415¥10,100

main64016-95401iYU6#,82..LHD..(L2,T3)¥9,100198808-199505

SAUDI ARABIA & GULF SPEC

sub64016-95415¥10,100

main64016-95402iRU85,WU9#¥9,100198808-199505

main64016-95403iRU85..GEN¥9,100198808-199505

SAUDI ARABIA & GULF SPEC

main64016-95403iWU9#¥9,100199102-199305

main64016-95413iWU9#¥19,000199110-199305

TAIWAN PACKAGE

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-37030iYU62..TW1¥46,200199309-199505

sub64103-37031¥46,200

main64103-95401iWU9#¥22,600199110-199305

TAIWAN PACKAGE

sub64103-95403¥22,600

main64103-95401iRU85,WU9#,YU6#,82..(L2,T3)..(GEN,SA)¥22,600198808-199505

sub64103-95403¥22,600

main64103-95403iYU62..ARL¥22,600198808-199204

main64103-95403iYU6#,82..LHD..(L2,T3)¥22,600198808-199505

SAUDI ARABIA & GULF SPEC

main64103-95404iRU85..GEN¥22,600198808-199505

SAUDI ARABIA & GULF SPEC

main64103-95404iWU9#¥22,600199102-199305

main64103-95412iYU62..TW1¥46,200198808-199309

sub64103-37080¥46,200

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-37030iYU62..TW1¥46,200199309-199505

sub64104-37031¥46,200

main64104-95401iRU85,YU6#,8#..(L2,T3)..(GEN,SA)¥22,600198808-199505

sub64104-95403¥22,600

main64104-95401iWU9#¥22,600199110-199305

TAIWAN PACKAGE

sub64104-95403¥22,600

main64104-95403iYU62..ARL¥22,600198808-199204

main64104-95404iWU9#¥22,600199102-199305

main64104-95414iYU62..TW1¥46,200198808-199309

sub64104-37080¥46,200

main64104-95415iYU6#,82..LHD..(L2,T3)¥22,600198808-199505

SAUDI ARABIA & GULF SPEC

sub64104-95403¥22,600

main64104-95416iRU85..GEN¥22,600198808-199505

SAUDI ARABIA & GULF SPEC

64163ACOVER, BACK CORNER, INNER

main64163-95410-06iYU62..ARL198808-199109

BROWN,TRIM4#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-06iYU62..ARL198808-199109

SAUDI ARABIA & GULF SPEC,BROWN,TRIM4#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-13iRU85,YU62,82..LHD199109-199505

SAUDI ARABIA & GULF SPEC,GRAY,TRIM1#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-13iYU62..ARL199109-199204

GRAY,TRIM1#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-A0iYU71199109-199309

SAUDI ARABIA & GULF SPEC,WHITE,TRIM1#&048 ,26H ,27H

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-D0iYU71199109-199309

SAUDI ARABIA & GULF SPEC,RED,TRIM1#&391

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-F0iYU71199109-199309

SAUDI ARABIA & GULF SPEC,YELLOW,TRIM1#&541

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-G0iYU71199109-199309

SAUDI ARABIA & GULF SPEC,GREEN,TRIM1#&6A9

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-J0iYU71199109-199309

SAUDI ARABIA & GULF SPEC,BLUE,TRIM1#&8E5

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95411-06iRU85,WU9#,YU6#,71,82..GEN,SA198808-199109

BROWN,TRIM4#

sub64163-95902¥1,400

main64163-95411-B0iRU85,WU9#,YU6#,71,8#..GEN,SA199109-199505

GRAY,TRIM1#

sub64163-95902¥1,400

9014980014

main90149-80014¥210

9015960058

main90159-60058¥160

9046710061

main90467-10061¥120

9095001011

main90950-01011¥170

9095001029

main90950-01029¥280

9095001454

main90950-01454¥110

9161160814

main91611-60814¥100

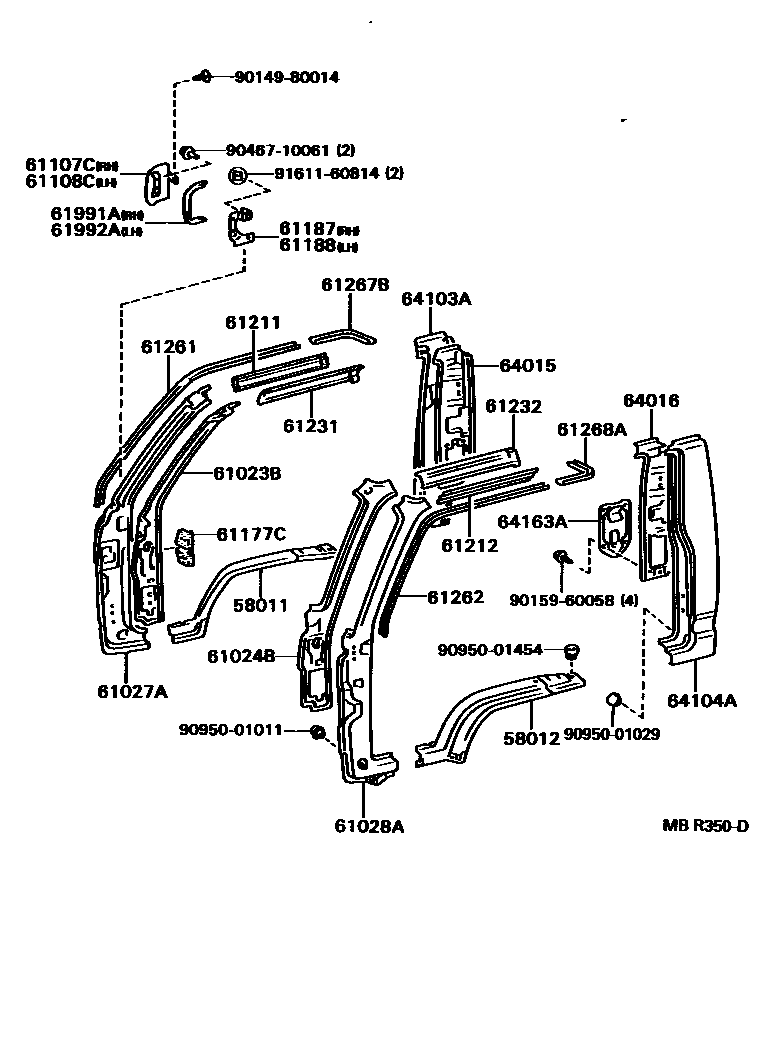

34 parts on this diagram · 3 diagrams in section
