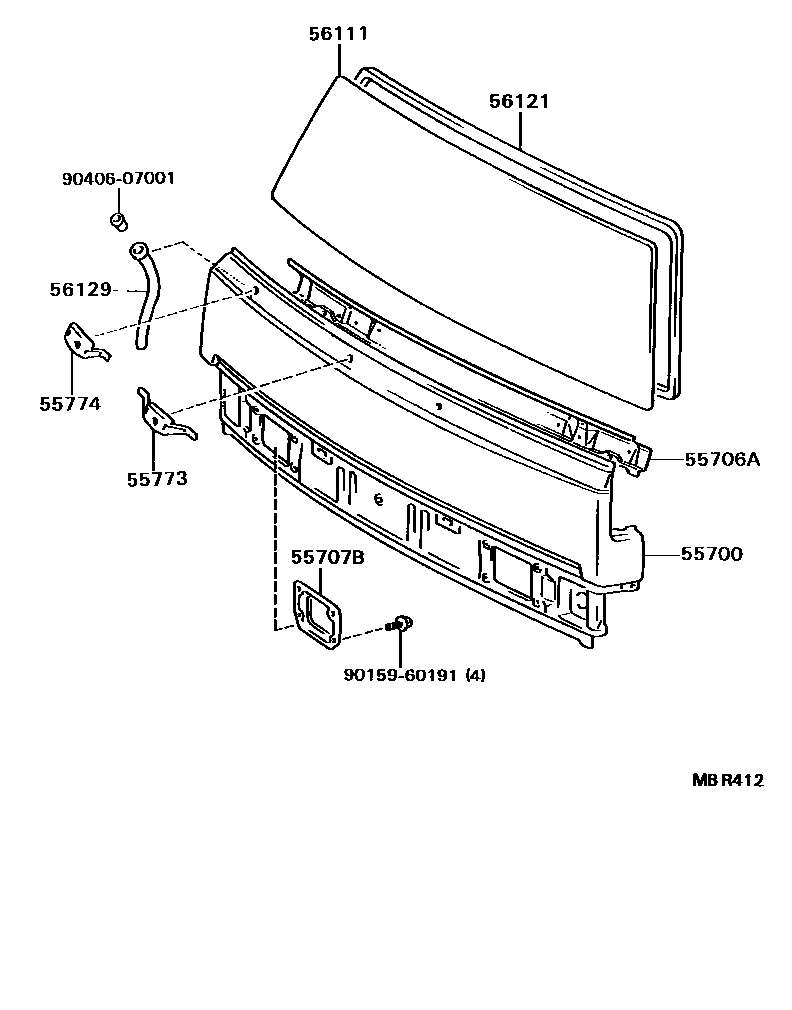

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95443iYU62,82..RHD198808-199210

main55701-95444iYU6#,71,82..LHD198808-199210

main55701-95445iYU6#,71,82..LHD199210-199505

main55701-95446iRU85,YU85..SA198808-199505

main55701-95447iRU85,WU9#..GEN198808-199210

main55701-95448iRU85,WU9#..GEN199210-199505

main55701-95449iYU82..RHD199210-199505

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95405iYU62,82..RHD198808-199505

main55706-95406iYU6#,71,82..LHD198808-199505

main55706-95407iRU85,YU85..SA198808-199505

main55706-95408iRU85,WU9#..GEN198808-199505

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95404iYU6#,71,82198808-199505

main55723-95404iRU85,WU9#,YU85198808-199505

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iYU6#,71,82198808-199505

main55773-95407iRU85,WU9#,YU85198808-199505

RH

main55773-95408iRU85,WU9#,YU85198808-199505

LH

55774RETAINER, WIPER SHAFT SIDE

main55774-95402iYU62,82..RHD198808-199505

main55774-95403iYU6#,71,82..LHD198808-199505

main55774-95406iRU85,YU85..SA198808-199505

main55774-95407iRU85,WU9#..GEN198808-199505

56111GLASS, WINDSHIELD

main56111-37010iYU62,82..ARL,SA199109-199208

*TL,T=5.7

main56111-37020iYU6#,82..(L2,T3)..GEN199109-199505

*LAM,T=5.7,BRONZE,W(TOP SHADE)

main56111-37030iWU9#;RU85..SA199109-199210

*TL,T=5.7

main56111-37040iRU85..GEN199109-199505

*LAM,T=5.7,BRONZE,W(TOP SHADE)

main56111-95415iYU6#,82..GEN199208-199210

*ZT,T=5.0

main56111-95416iYU62,82..ARL,SA198808-199109

*LAM,T=5.3

main56111-95417iYU6#,71,82..GEN198808-199109

*LAM,T=5.3,W(TOP SHADE)

main56111-95419iRU85,WU9#198808-199109

*LAM,T=5.7

main56111-95420iRU85..GEN198808-199109

*LAM,T=5.7,W(TOP SHADE)

56121WEATHERSTRIP, WINDSHIELD

main56121-95411iRU85,WU9#,YU85198808-199505

main56121-95A06iYU6#,71,82198808-199505

56129HOSE, WINDSHIELD DRAIN

main56129-95400×2iRU85,WU9#,YU6#,71,8#198808-199505

sub56129-95J00

9015960191

main90159-60191

9040607001

main90406-07001

10 parts on this diagram · 1 diagram in section
