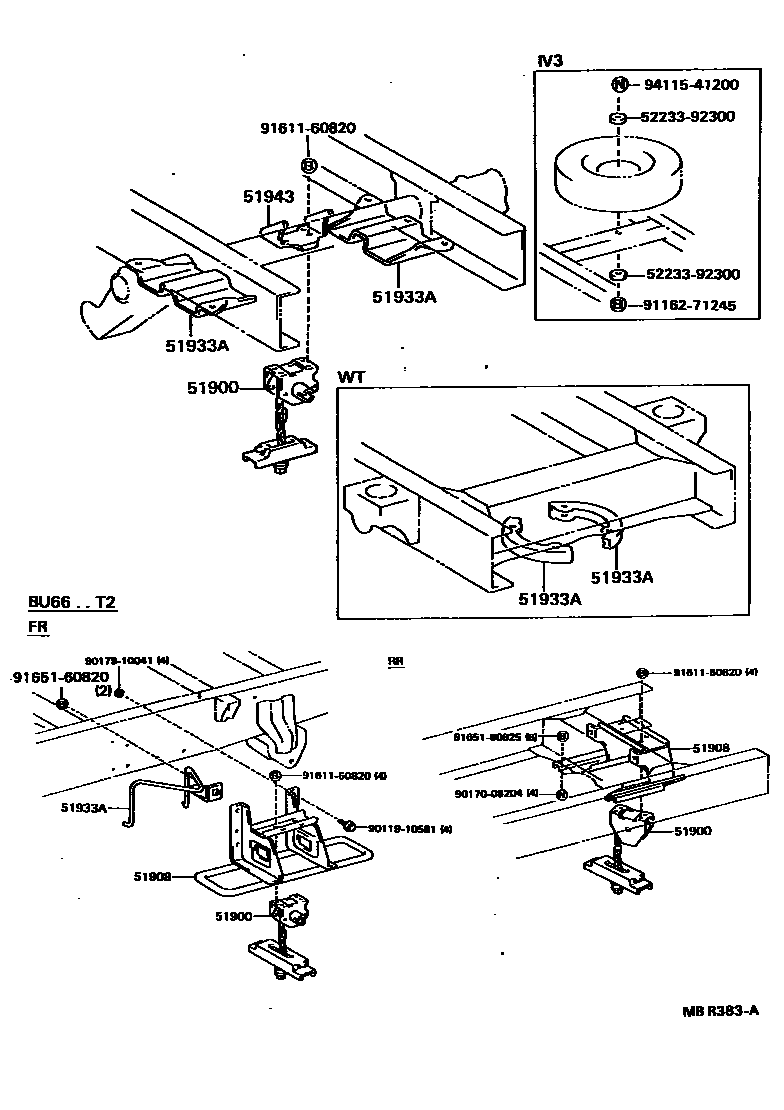

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36050iWU9#198808-199305

main51900-36101iRU85,YU62,71,8#198808-199505

sub51900-36102

main51900-93100iYU63198808-199505

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36040iWU9#198808-199305

main51933-36010iRU85,YU62,8#..WT198808-199505

main51933-36040iYU62,71..ST198808-199505

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-36020iYU62,71..ST198808-199505

5223392300WASHER, CAB REAR MOUNTING, UPPER

main52233-92300

9011910581

main90119-10581

9017008204

main90170-08204

9017910041

main90179-10041

9116271245

main91162-71245

9161160820

main91611-60820

9165160820

main91651-60820

9165160825

main91651-60825

9411541200

main94115-41200

13 parts on this diagram · 2 diagrams in section
