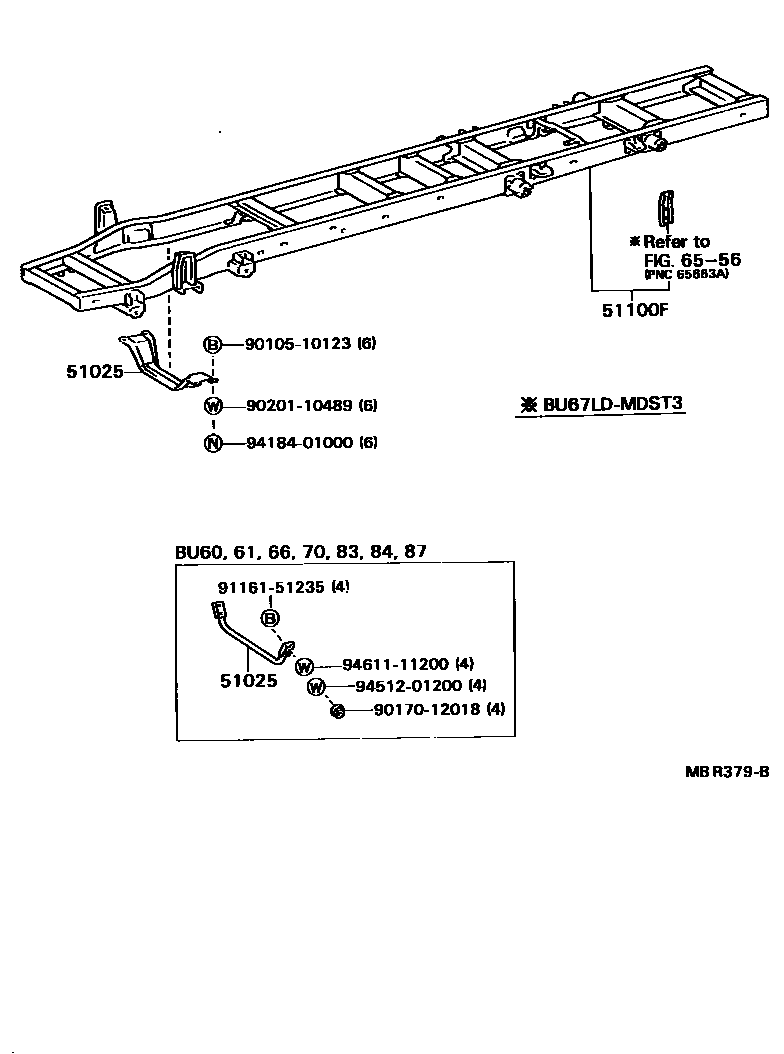

FRAME

0001 1 0002 1 0003 1

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-36030iWU9#198808-199305

51100FFRAME SUB-ASSY

main51002-3B280iYU62..T3..ST198808-199505

main51002-3B290iYU62..TW1198808-199505

main51002-3B300iYU71198808-199309

main51002-3B350iYU62..WT198808-199505

main51002-3B620iRU85198808-199001

sub51002-3B621

sub17573-58061

sub90119-08086

main51002-3B621iRU85,YU85199001-199505

main51002-3B640iWU90198808-199001

sub51002-3B641

sub17573-58061

sub90119-08086

main51002-3B641iWU90199001-199305

main51002-3B750iYU82198808-199505

main51005-96307iYU63198808-199505

6556

9010510123

main90105-10123

9017012018

main90170-12018

9020110489

main90201-10489

9116151235

main91161-51235

9418401000

main94184-01000

9451201200

main94512-01200

9461111200

main94611-11200

10 parts on this diagram · 3 diagrams in section
