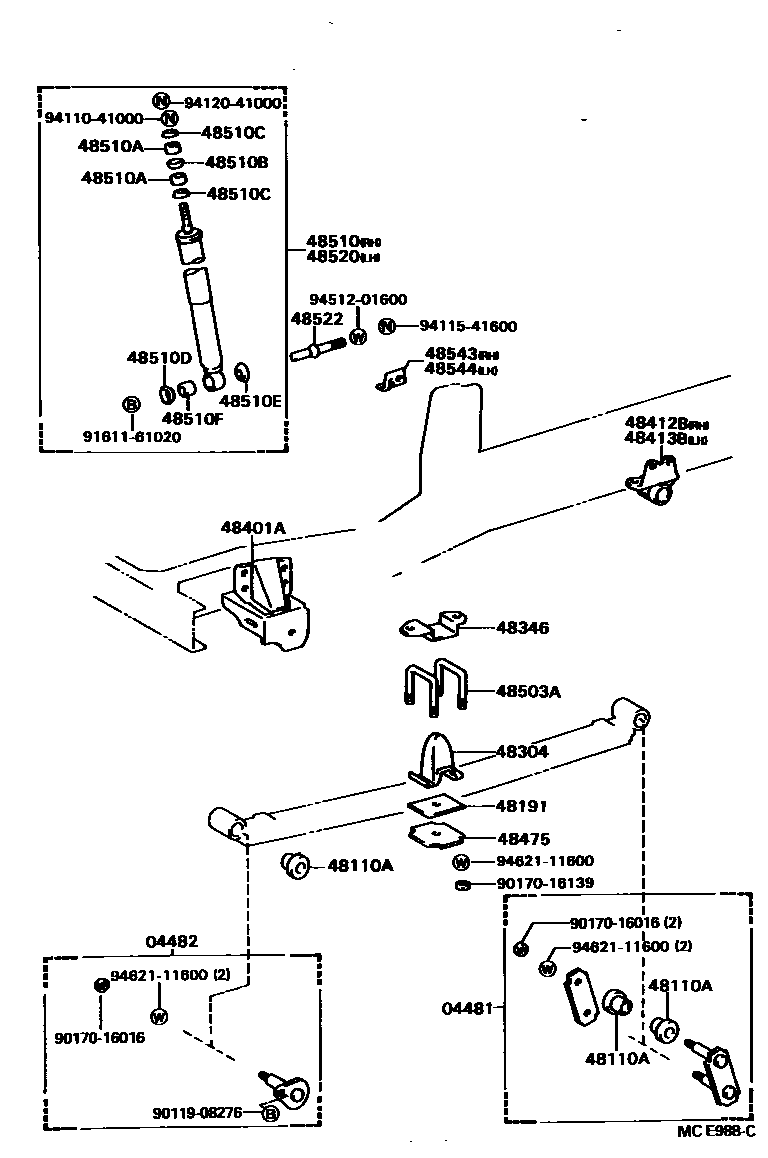

FRONT SPRING & SHOCK ABSORBER
48110SPRING ASSY, FRONT, RH
5-LEAF
5-LEAF
5-LEAF
5-LEAF
5-LEAF,HEAVY DUTY SPEC
8-LEAF
8-LEAF
8-LEAF
48110ABUSH(FOR FRONT SPRING SHACKLE)
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48401ABRACKET SUB-ASSY, SPRING, NO.1
RH
RH
RH
RH
LH
LH
LH
LH
48412BBRACKET, SPRING, NO.2 RH
48413BBRACKET, SPRING, NO.2 LH
48475PLATE, DISTANCE(FOR FRONT)
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
L=130
L=95
L=105
48510ABSORBER ASSY, SHOCK, FRONT RH
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48510FCUSHION, SHOCK ABSORBER
48520ABSORBER ASSY, SHOCK, FRONT LH
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48543REINFORCEMENT, FRONT ABSORBER BRACKET, RH
48544REINFORCEMENT, FRONT ABSORBER BRACKET, LH
9011908276
main90119-08276
9017016016
main90170-16016
9017016139
main90170-16139
9161161020
main91611-61020
9411041000
main94110-41000
9411541600
main94115-41600
9412041000
main94120-41000
9451201600
main94512-01600
9462111600
main94621-11600
32 parts on this diagram · 4 diagrams in section
