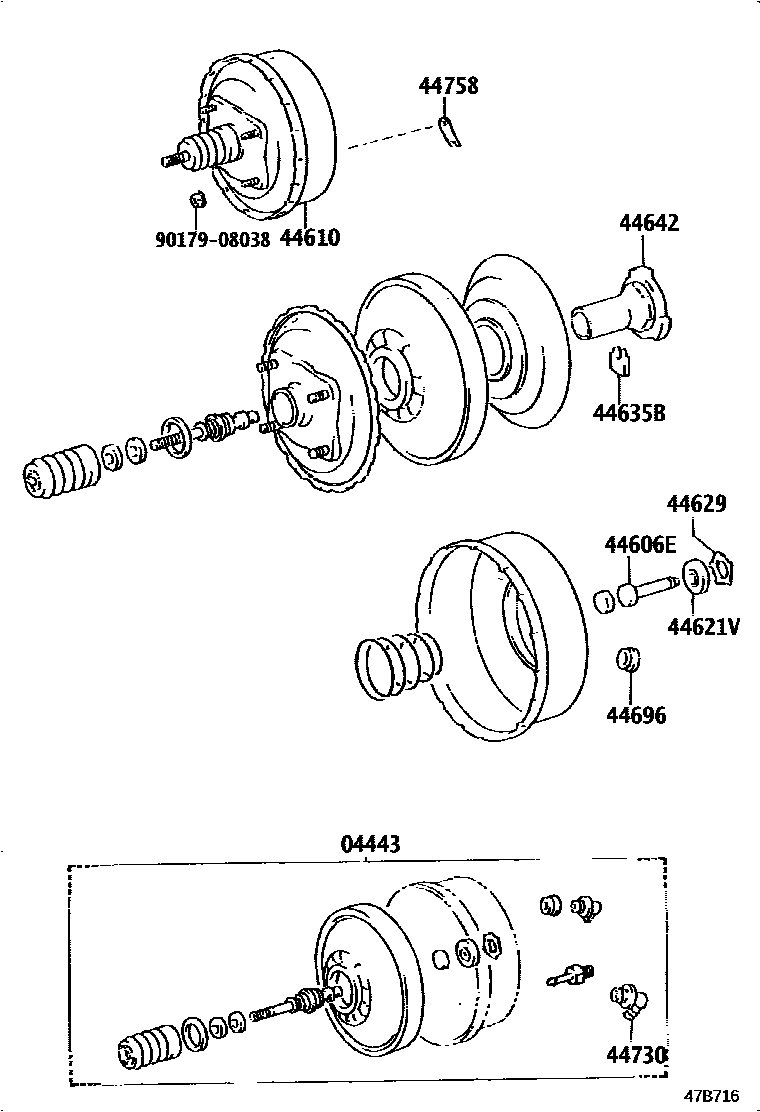

BRAKE BOOSTER & VACUUM TUBE

0001 1AISIN 0002 1JKC 0003 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-36070iYU6#,71,82¥7,200198808-199505

main04443-36080iYU62,82..WT..(ARL,GEN)¥7,200198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main04443-36091iWU9#¥12,700198808-199305

main04443-36110iRU85,YU85¥12,700198808-199505

main04443-36150iRU85..GEN¥12,700198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-36240iYU6#,71,82¥1,970198808-199505

44610BOOSTER ASSY, BRAKE

main44610-36280iYU62,82..RHD¥45,700198808-199505

main44610-36290iYU6#,71,82..LHD¥45,700198808-199505

main44610-36300iYU62,82..RHD..(ARL,GEN)¥45,700198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36310iYU62,82..LHD..WT¥45,700198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36332iWU9#¥51,000198808-199305

main44610-36400iRU85..GEN¥51,000198808-199505

main44610-36410iRU85,YU85..SA¥52,400198808-199505

main44610-36430iRU85..GEN¥51,000198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

44621VSEAL, BOOSTER BODY

main44621-28120iYU6#,71,82¥590198808-199505

44629RING, CIRCULAR INTERNAL

main44628-28120iYU6#,71,82¥390198808-199505

44635BKEY, VALVE STOPPER

main44635-36240iYU6#,71,82¥200198808-199505

44642PISTON, BRAKE BOOSTER

main44642-36240iYU6#,71,82¥3,460198808-199505

main44642-36260iYU62,82..WT..(ARL,GEN)¥3,460198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

44696GROMMET, CHECK VALVE

main90480-24015iRU85,YU85¥130198808-199505

main90480-24439iYU6#,71,82¥390198808-199505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20060iYU6#,71,82¥2,920198808-199505

main44730-28010iRU85,YU85¥1,360198808-199505

main44730-60040iWU9#¥5,500198808-199305

44758BRACKET, VACUUM CHECK VALVE

main44758-36030iYU62,82..RHD¥190198808-199505

main44758-36041iYU6#,71,82..LHD¥300198808-199505

main44758-36050iRU85,YU85..SA¥240198808-199505

main44758-36080iRU85..GEN¥300198808-199505

9017908038

main90179-08038¥130

11 parts on this diagram · 6 diagrams in section
