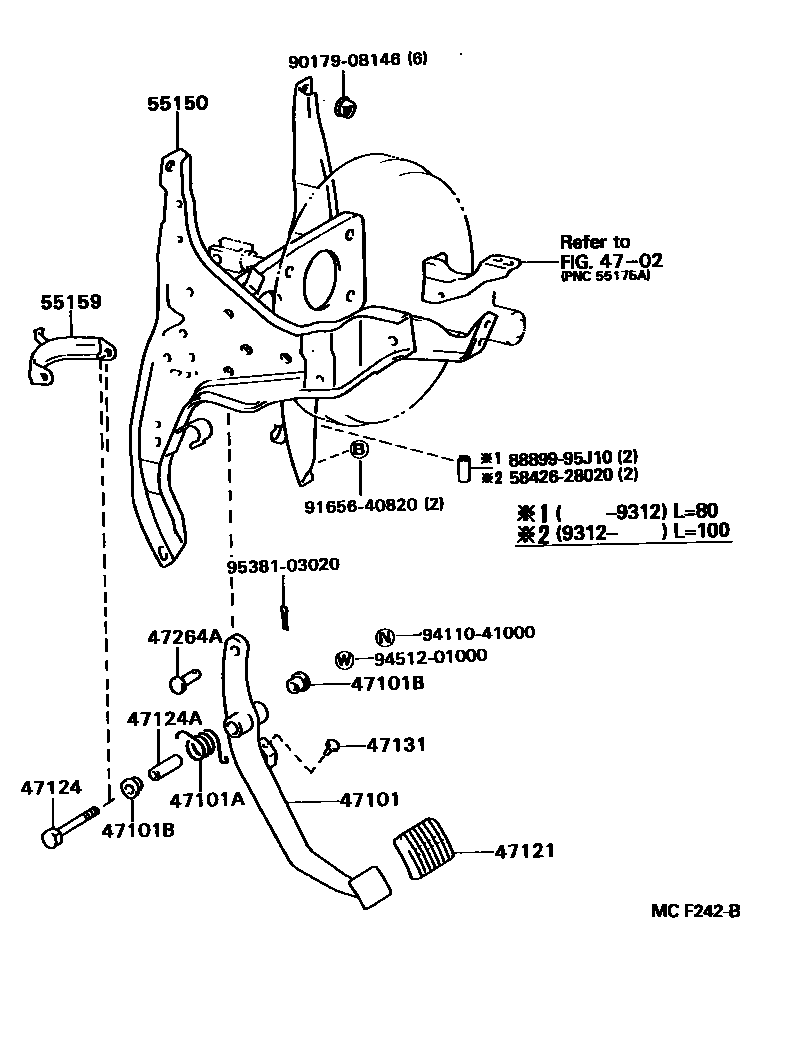

BRAKE PEDAL & BRACKET

4702

47101PEDAL SUB-ASSY, BRAKE

main47101-36101iRU85,WU9#198808-199505

main47101-36110iYU62,82..RHD198808-199505

main47101-36120iYU6#,71,82..LHD198808-199505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iRU85,WU9#,YU6#,71,82198808-199505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iRU85,WU9#,YU6#,71,82198808-199505

47121PAD, BRAKE PEDAL

main31321-36010iRU85,WU9#,YU6#,71,82198808-199505

47124SHAFT, BRAKE PEDAL

main91121-51070iYU85;RU85,YU6#,82..GEN198808-199505

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iRU85,WU9#,YU6#,71,82198808-199505

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRU85,WU9#,YU6#,71,82198808-199008

main90541-06036iRU85,WU9#,YU6#,71,82199008-199505

47264APIN(FOR PUSH ROD)

main90240-10015iRU85,WU9#,YU6#,71,82198808-199505

55150BRACKET ASSY, PEDAL

main55150-95402iYU6#,71,82..LHD198808-199505

main55150-95403iRU85,YU62,8#..RHD198808-199505

main55150-95404iRU85,WU9#..GEN198808-199505

55159STAY, PEDAL BRACKET

main55159-95401iRU85,WU9#,YU6#,71,8#198808-199505

5842628020NUT, BATTERY SERVICE HOLE COVER

main58426-28020

8889995J10COVER, EVAPORATOR

main88899-95J10

9017908146

main90179-08146

9165640820

main91656-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

18 parts on this diagram · 1 diagram in section
