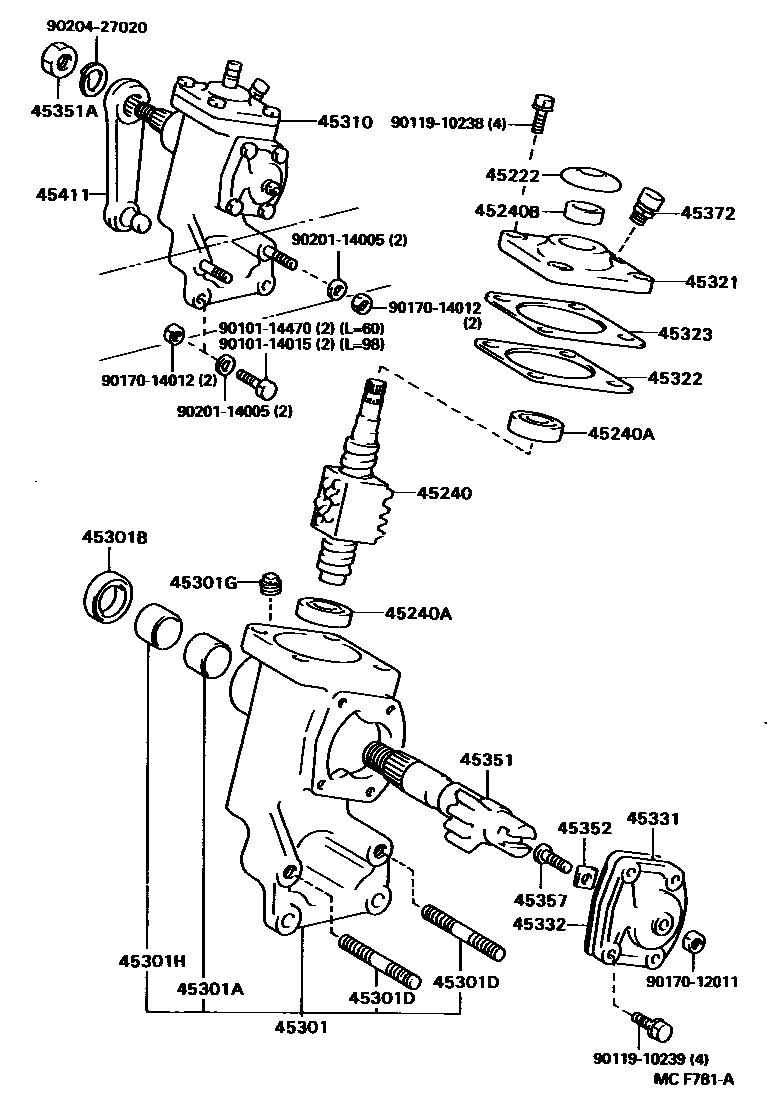

FRONT STEERING GEAR & LINK
45222COVER, STEERING GEAR DUST
45240WORM ASSY, STEERING
45240ABEARING(FOR STEERING WORM)
45240BSEAL, OIL(FOR STEERING WORM)
45301HOUSING SUB-ASSY, STEERING GEAR
45301ABUSH OR BEARING, SECTOR SHAFT, NO.1
45301BSEAL, OIL(FOR SECTOR SHAFT)
45301DBOLT, STUD(FOR STEERING GEAR HOUSING)
L=96
L=73
45301GPLUG, STEERING GEAR BOX OIL
45301HBUSH OR BEARING, SECTOR SHAFT, NO.2
45310HOUSING ASSY, STEERING GEAR
45321COVER, GEAR HOUSING END
45322GASKET, GEAR HOUSING END COVER
45323SHIM, GEAR HOUSING END COVER
T=0.05
T=0.06
T=0.07
T=0.10
T=0.20
T=0.50
45331COVER, SECTOR SHAFT END
45332GASKET, SECTOR SHAFT END COVER
45351SHAFT, STEERING SECTOR
45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352WASHER, SECTOR SHAFT THRUST
T=1.95
T=2.00
T=2.05
45357SCREW, SECTOR SHAFT ADJUSTING
sub45357-37020
45372PLUG, STEERING GEAR HOUSING OIL
45411ARM, PITMAN
W(POWER STEERING)
W(POWER STEERING)
W(POWER STEERING)
W(POWER STEERING)
W(POWER STEERING)
W(POWER STEERING)
W(POWER STEERING)
W(POWER STEERING)
9010114015
main90101-14015
9010114470
main90101-14470
9011910238
main90119-10238
9011910239
main90119-10239
9017012011
main90170-12011
9017014012
main90170-14012
9020114005
main90201-14005
9020427020
main90204-27020
30 parts on this diagram · 7 diagrams in section
