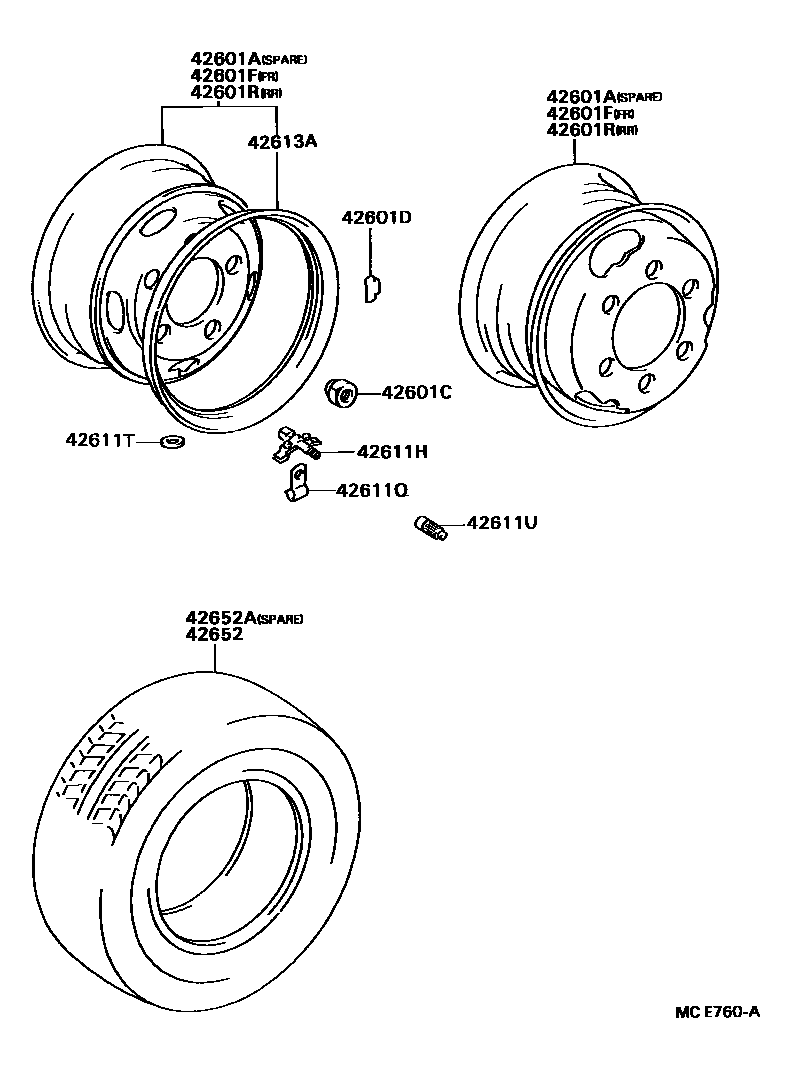

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42610-25020-03iYU62..T3..ST198808-199111

5.50F-15,TOPY,GRAY

sub42610-25020¥13,500

main42610-36230iYU85;RU85..GEN¥13,000198808-199505

AFJ 16X5.50F

main42610-36230iYU62,82..WT..GEN¥13,000198808-199505

AFJ 16X5.50F,HEAVY DUTY SPEC

main42610-36271iWU9#¥18,000198808-199110

6.00GSX16

sub42610-36272¥17,400

main42610-36272iWU9#¥17,400199110-199305

6.00GSX16, #

main42610-36290-03iYU62..T3..ST198808-199505

6.00GS-15,TOPY,GRAY

sub42610-36290¥18,100

main42610-36300-03iYU71;YU62..TW1198808-199307

6.00GS-15,CHUO SEIKI,GRAY

sub42610-36300¥17,500

sub42610-36290¥18,100

main42610-36310-03iYU62..T3..ST198808-199111

5.50F-15,CHUO SEIKI,GRAY

sub42610-36310¥13,000

sub42610-25020¥13,500

main42610-36350-03iYU62,71..ST198808-199505

5.50F-16,GRAY

sub42610-36350¥16,000

main42610-36410iYU6#,82..WT..GEN¥15,400198808-199505

AFKG 16X5.50F

42601CNUT, HUB (FOR AXLE)

main42633-55030iWU9#¥710198808-199505

RR,RH

main42634-55030iRU85,YU6#,82..WT¥710198808-199505

RR,LH

main90942-01012iYU62,71..ST¥400198808-199505

FR,RH

main90942-01012iYU62,71..ST¥400198808-199505

RR,RH

main90942-01013iYU62,71..ST¥400198808-199505

FR,LH

main90942-01013iYU62,71..ST¥400198808-199505

RR,LH

main90942-01023iYU85;RU85,YU6#,82..WT..GEN¥850198808-199505

FR,RH

main90942-01024iWU9#¥850198808-199505

FR,LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045iYU71;YU62..TW1¥230198808-199505

20G,CHINA SPEC

sub90942-03079¥370

main90942-03045iYU6#,82¥230198808-199505

20G

sub90942-03079¥370

main90942-03047iRU85,YU6#,82..GEN¥250198808-199505

40G

sub90942-03081¥430

main90942-03047iYU71;YU62..TW1¥250198808-199505

40G,CHINA SPEC

sub90942-03081¥430

main90942-03049iYU71;YU62..TW1¥300198808-199505

60G,CHINA SPEC

sub90942-03083¥480

main90942-03049iRU85,YU6#,82..GEN¥300198808-199505

60G

sub90942-03083¥480

main90942-03050iYU6#,82¥240198808-199505

30G

sub90942-03080¥380

main90942-03050iYU71;YU62..TW1¥240198808-199505

30G,CHINA SPEC

sub90942-03080¥380

main90942-03051iYU71;YU62..TW1¥320198808-199505

80G,CHINA SPEC

sub90942-03085¥540

main90942-03051iRU85,YU6#,71,82¥320198808-199505

80G

sub90942-03085¥540

main90942-03052iYU6#,82¥270198808-199505

50G

sub90942-03082¥450

main90942-03052iYU71;YU62..TW1¥270198808-199505

50G,CHINA SPEC

sub90942-03082¥450

main90942-03053iRU85,YU6#,71,82¥350198808-199505

100G

sub90942-03086

main90942-03053iYU71;YU62..TW1¥350198808-199505

100G,CHINA SPEC

sub90942-03086

main90942-03064iYU6#,82¥310198808-199505

70G

sub90942-03084¥520

main90942-03064iYU71;YU62..TW1¥310198808-199505

70G,CHINA SPEC

sub90942-03084¥520

main90942-03173iYU62..T3..ST¥230198808-199505

20G

main90942-03173iYU71;YU62..TW1¥230198808-199505

20G,CHINA SPEC

main90942-03174iYU71;YU62..TW1¥240198808-199505

30G,CHINA SPEC

main90942-03174iYU62..T3..ST¥240198808-199505

30G

main90942-03175iWU9#,YU71;YU62..TW1¥250198808-199505

40G

main90942-03175iYU71;YU62..TW1¥250198808-199505

40G,CHINA SPEC

main90942-03176iYU62..T3..ST¥260198808-199505

50G

main90942-03176iYU71;YU62..TW1¥260198808-199505

50G,CHINA SPEC

main90942-03177iYU71;YU62..TW1¥280198808-199505

60G,CHINA SPEC

main90942-03177iYU62..ST;WU9#,YU71¥280198808-199505

60G

main90942-03178iWU9#,YU71;YU62..TW1¥300198808-199505

70G

main90942-03178iYU71;YU62..TW1¥300198808-199505

70G,CHINA SPEC

main90942-03179iYU62..T3..ST¥310198808-199505

80G

main90942-03179iYU71;YU62..TW1¥310198808-199505

80G,CHINA SPEC

main90942-03180iYU62..ST;WU9#,YU71¥320198808-199505

90G

main90942-03181iWU9#,YU71;YU62..TW1¥360198808-199505

100G

main90942-03181iYU71;YU62..TW1¥360198808-199505

100G,CHINA SPEC

main90942-03182iYU62..T3..ST¥370198808-199505

110G

main90942-03183iWU9#,YU71;YU62..TW1¥390198808-199505

120G

main90942-03184iYU62..ST;WU9#,YU71¥410198808-199505

130G

main90942-03185iWU9#,YU71;YU62..TW1¥440198808-199505

140G

main90942-03186iWU9#,YU71;YU62..TW1¥460198808-199505

150G

42601FWHEEL, DISC (FOR FRONT)

main42610-25020-03iYU62..TW1198808-199505

5.50F-15,TOPY,GRAY

sub42610-25020¥13,500

main42610-36230iYU62,82..WT..GEN¥13,000198808-199505

AFJ 16X5.50F,HEAVY DUTY SPEC

main42610-36230iYU85;RU85..GEN¥13,000198808-199505

AFJ 16X5.50F

main42610-36271iWU9#¥18,000198808-199110

6.00GSX16

sub42610-36272¥17,400

main42610-36272iWU9#¥17,400199110-199305

6.00GSX16, #

main42610-36310-03iYU71;YU62..TW1198808-199307

5.50F-15,CHUO SEIKI,GRAY

sub42610-36310¥13,000

sub42610-25020¥13,500

main42610-36350-03iYU62,71..ST198808-199505

5.50F-16,GRAY

sub42610-36350¥16,000

main42610-36410iYU6#,82..WT..GEN¥15,400198808-199505

AFKG 16X5.50F

42601RWHEEL, DISC (FOR REAR)

main42610-25020-03iYU62..T3..ST198808-199111

5.50F-15,TOPY,GRAY

sub42610-25020¥13,500

main42610-36230iRU85¥13,000198808-199505

AFJ 16X5.50F

main42610-36230iYU62,82..WT..GEN¥13,000198808-199505

AFJ 16X5.50F,HEAVY DUTY SPEC

main42610-36271iWU9#¥18,000198808-199110

6.00GSX16

sub42610-36272¥17,400

main42610-36272iWU9#¥17,400199110-199305

6.00GSX16, #

main42610-36290-03iYU62,71..ST198808-199505

6.00GS-15,TOPY,GRAY

sub42610-36290¥18,100

main42610-36300-03iYU71;YU62..TW1198808-199307

6.00GS-15,CHUO SEIKI,GRAY

sub42610-36300¥17,500

sub42610-36290¥18,100

main42610-36310-03iYU62..T3..ST198808-199111

5.50F-15,CHUO SEIKI,GRAY

sub42610-36310¥13,000

sub42610-25020¥13,500

main42610-36350-03iYU62,71..ST198808-199505

5.50F-16,GRAY

sub42610-36350¥16,000

main42610-36410iYU6#,82..WT..GEN¥15,400198808-199505

AFKG 16X5.50F

42611HEXTENSION, VALVE

42611QCLIP (FOR TUBE)

main90468-10014iRU85,YU62,82..WT..(ARL,GEN)¥120198808-199505

42611TWASHER (FOR TUBE)

main90201-11009iRU85,YU62,82..WT..(ARL,GEN)¥100198808-199505

42611UCAP, TIRE VALVE

42613ARING, DISC WHEEL SIDE

main42613-35010iYU62..T3..ST¥2,320198808-199505

TOPY,5.50FX15

main42613-35020iYU71;YU62..TW1¥5,400198808-199505

TOPY,6.00GSX15

main42613-36060iYU62,71..ST¥3,330198808-199505

CHUO,5.50FX15

sub42613-35010¥2,320

main42613-36070iYU62..T3..ST¥4,270198808-199505

CHUO,6.00GSX15

sub42613-35020¥5,400

main42613-36080iYU85;RU85,YU6#,82..WT..GEN¥3,370198808-199505

main42613-37020iWU9#¥6,500198808-199305

42652TIRE

main42605-25030iYU71;YU62..TW1198808-199505

7.50-15-12,LUG,CHINA SPEC

main42605-25120iYU62,71..ST198808-199505

7.00R15-8,RIB

main42605-36020iYU62..WT..GEN198808-199505

6.50-16-8,LUG,NATURAL

main42605-36080iYU71;YU62..TW1198808-199505

7.00-15-8,LUG,CHINA SPEC

main42605-36090iYU63,82..LHD198808-199505

6.50-16-10,LUG,CHINA SPEC

main42605-36250iYU62,82..WT..(ARL,GEN)198808-199505

6.50R16-10,HEAVY DUTY SPEC

main42605-36280iWU9#198808-199110

7.50-16-10,RIB

main42605-36290iWU9#198808-199110

7.50-16-12,RIB

main42605-36340iRU85198808-199505

7.00-16-12,LUG

main42605-36340iYU62,82..WT..GEN198808-199505

7.00-16-12,LUG,HEAVY DUTY SPEC

main42605-36340iRU85..GEN199110-199305

7.00-16-12,LUG,W(FR DISC BRAKE RR AUTO ADJUSTER)

main42605-36450iYU62,71..ST198808-199505

7.00R15-12,RIB

main42605-36540iYU85;RU85..GEN198808-199505

7.00R16-10,RIB

main42605-36550iWU9#198808-199305

7.50R16-10

main42605-36560iYU62..WT..GEN198808-199505

6.50-16-8,LUG

main42605-36570iYU6#..WT..GEN;YU82..RHD..GEN198808-199505

6.50-16-10

main98061-70153iYU62..TW1198808-199505

7.00-15-6,RIB

main98061-70166iYU62,71..ST198808-199505

7.00-16-12,RIB

main98061-75155iYU62..T3..ST198808-199111

7.50-15-10,RIB

main98061-75156iYU71;YU62..TW1198808-199505

7.50-15-12,RIB

main98061-75157iYU62,71..ST198808-199505

7.50-15-14,RIB

main98066-75166iWU9#198808-199004

7.50-16-12,LUG

main98661-70154iYU71;YU62..T3..ST198808-199505

7.00-15-8,RIB

main98961-65164iYU62..WT¥15,500198808-199505

6.50-16-8,RIB

main98961-65164iYU82..GEN¥15,500198808-199505

6.50-16-8,RIB,W(FR DISC BRAKE RR AUTO ADJUSTER)

main98961-65165iYU82..GEN198808-199505

6.50-16-10,RIB

main98961-70165iRU85198808-199505

7.00-16-10,RIB

main98961-70165iYU62,82..WT..GEN198808-199505

7.00-16-10,RIB,HEAVY DUTY SPEC

main98961-70166iRU85..GEN199210-199305

7.00-16-12,RIB,W(FR DISC BRAKE RR AUTO ADJUSTER)

main98961-70166iYU62,82..WT..GEN198808-199505

7.00-16-12,RIB,HEAVY DUTY SPEC

main98961-70166iRU85198808-199505

7.00-16-12,RIB

main98964-65164iYU6#..WT198808-199309

6.50-16-8,SNOW

main98964-65165iYU6#,82..WT..GEN198808-199309

6.50-16-10,SNOW

42652ATIRE (FOR SPARE)

main42605-25030iYU71;YU62..TW1198808-199505

7.50-15-12,LUG,CHINA SPEC

main42605-25120iYU62,71..ST198808-199505

7.00R15-8,RIB

main42605-36020iYU62..WT..GEN198808-199505

6.50-16-8,LUG,NATURAL

main42605-36090iYU63,82..LHD198808-199505

6.50-16-10,LUG,CHINA SPEC

main42605-36250iYU62,82..WT..(ARL,GEN)198808-199505

6.50R16-10,HEAVY DUTY SPEC

main42605-36280iWU9#198808-199110

7.50-16-10,RIB

main42605-36290iWU9#198808-199110

7.50-16-12,RIB

main42605-36340iYU62,82..WT..GEN198808-199505

7.00-16-12,LUG,HEAVY DUTY SPEC

main42605-36340iYU85;RU85..GEN198808-199505

7.00-16-12,LUG

main42605-36340iRU85..GEN199110-199305

7.00-16-12,LUG,W(FR DISC BRAKE RR AUTO ADJUSTER)

main42605-36450iYU62,71..ST198808-199505

7.00R15-12,RIB

main42605-36540iYU85;RU85..GEN198808-199505

7.00R16-10,RIB

main42605-36550iWU9#198808-199305

7.50R16-10

main42605-36560iYU62..WT..GEN198808-199505

6.50-16-8,LUG

main42605-36570iYU6#..WT..GEN;YU82..RHD..GEN198808-199505

6.50-16-10

main98061-70166iYU62,71..ST198808-199505

7.00-16-12,RIB

main98061-75155iYU62..T3..ST198808-199111

7.50-15-10,RIB

main98061-75156iYU71;YU62..TW1198808-199505

7.50-15-12,RIB

main98061-75157iYU62,71..ST198808-199505

7.50-15-14,RIB

main98066-75166iWU9#198808-199004

7.50-16-12,LUG

main98661-70154iYU71;YU62..T3..ST198808-199505

7.00-15-8,RIB

main98961-65164iYU82..GEN¥15,500198808-199505

6.50-16-8,RIB

main98961-65164iYU82..GEN¥15,500198808-199505

6.50-16-8,RIB,W(FR DISC BRAKE RR AUTO ADJUSTER)

main98961-65165iYU62..WT198808-199505

6.50-16-10,RIB

main98961-70165iYU85;RU85..GEN198808-199505

7.00-16-10,RIB

main98961-70165iYU62,82..WT..GEN198808-199505

7.00-16-10,RIB,HEAVY DUTY SPEC

main98961-70166iRU85198808-199505

7.00-16-12,RIB,HEAVY DUTY SPEC

main98961-70166iRU85198808-199505

7.00-16-12,RIB

main98961-70166iRU85..GEN199210-199305

7.00-16-12,RIB,W(FR DISC BRAKE RR AUTO ADJUSTER)

main98964-65164iYU6#..WT198808-199309

6.50-16-8,SNOW

main98964-65165iYU6#,82..WT..GEN198808-199309

6.50-16-10,SNOW

12 parts on this diagram · 1 diagram in section
