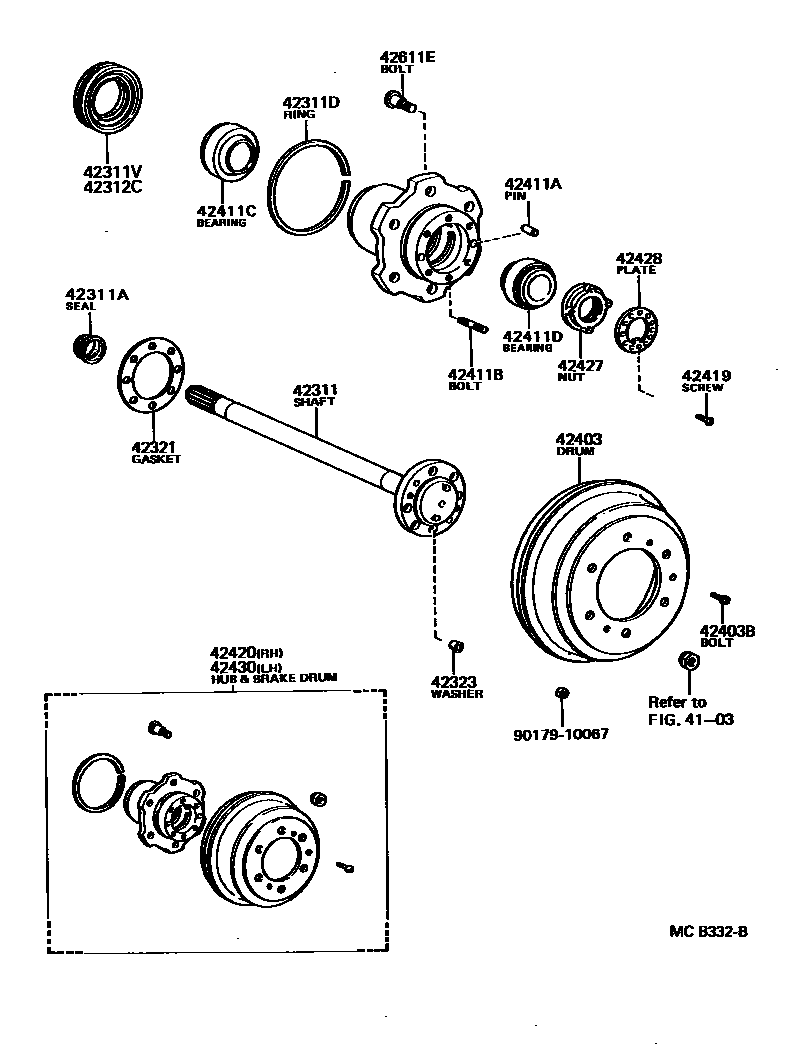

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

4103

42311SHAFT, REAR AXLE

main42311-36051iYU62,71,82198808-199505

main42311-36071iYU63198808-199505

main42311-36131iWU9#198808-199305

main42311-36181iYU85;RU85..GEN198808-199505

main42311-36181iYU62,82..WT..GEN198808-199505

HEAVY DUTY SPEC

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033iYU6#,71,82198808-199505

main90310-40001iRU85198808-199505

main90310-40001iYU62,82..WT..GEN198808-199505

HEAVY DUTY SPEC

main90310-41001iWU9#198808-199305

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-99065iYU62,71..ST198808-199505

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90311-75003iRU85,YU6#,71,82198808-199505

main90311-88102iWU9#198808-199305

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90311-75003iRU85,YU6#,71,82198808-199505

main90311-88102iWU9#198808-199305

42321GASKET, REAR AXLE SHAFT

main42321-36020iWU9#198808-199305

main42321-36040iRU85,YU6#,71,82198808-199010

sub42321-36050

main42321-36050iRU85,YU6#,71,82199010-199505

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iYU85;RU85..GEN198808-199505

main42323-36010iYU62,82..WT..GEN198808-199505

HEAVY DUTY SPEC

main42323-36020iWU9#198808-199305

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36120iRU85,YU6#,8#..WT198808-199505

main42431-36130iWU9#199004-199305

main43512-36020iYU62,71..ST198808-199505

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iYU62,71..ST198808-199505

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-10055iYU62,71..ST198808-199505

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-10191iYU62,71..ST198808-199505

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-57010iYU62,71..ST198808-199505

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-52043iRU85,YU6#,71,82198808-199505

main90368-57046iWU9#198808-199305

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012iRU85,YU6#,71,82198808-199505

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-36050iYU62,71..ST198808-199505

main42420-36130iYU6#,82..WT198808-199505

sub42420-37040

main42420-36150iRU85,YU85198808-199505

HEAVY DUTY SPEC

sub42420-37050

main42420-36170iWU9#199004-199305

42427NUT, REAR AXLE BEARING LOCK

main42427-36020iWU9#198808-199305

main42427-36030iRU85,YU6#,71,82198808-199505

42428PLATE, REAR AXLE LOCK NUT

main42428-36020iRU85,YU6#,71,82198808-199505

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-36050iYU62,71..ST198808-199505

main42430-36130iYU6#,82..WT198808-199505

sub42430-37040

main42430-36150iYU62,82..WT..GEN198808-199505

HEAVY DUTY SPEC

sub42430-37050

main42430-36170iWU9#199004-199305

42611EBOLT, HUB (FOR REAR AXLE)

main90342-02024iYU62,71..ST198808-199505

RH

main90342-02025iYU62,71..ST198808-199505

LH

9017910067

main90179-10067

21 parts on this diagram · 3 diagrams in section
