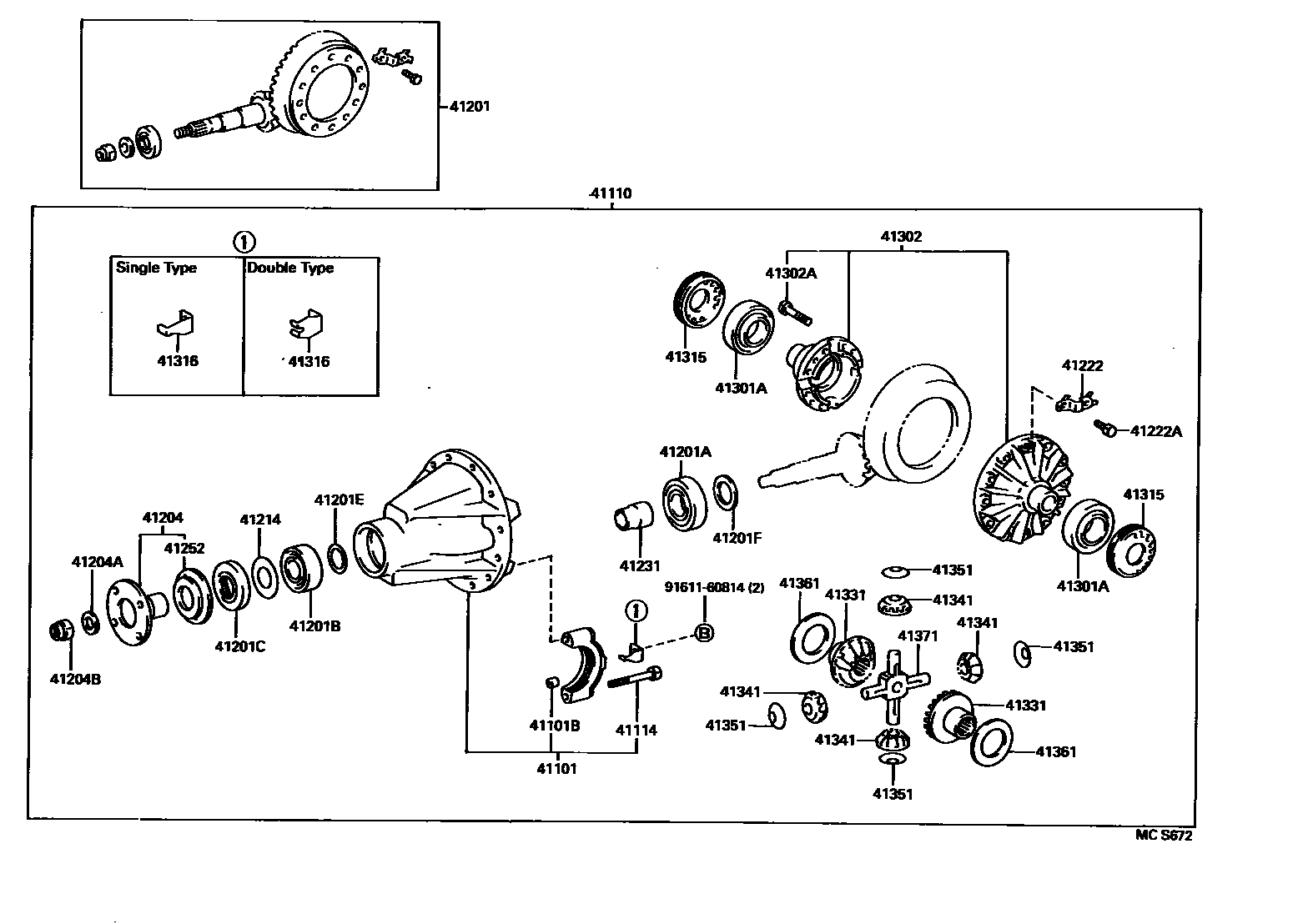

REAR AXLE HOUSING & DIFFERENTIAL
41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)
W(12INCHES DIFFERENTIAL)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:6=6.833
41114BOLT, REAR DIFFERENTIAL BEARING CAP
W(12INCHES DIFFERENTIAL)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201BBEARING (FOR REAR DRIVE PINION FRONT)
W(12INCHES DIFFERENTIAL)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
T=1.81
T=1.83
T=1.85
T=1.87
T=1.89
T=1.80
T=1.80,W(12INCHES DIFFERENTIAL)
T=1.82
T=1.82,W(12INCHES DIFFERENTIAL)
T=1.84,W(12INCHES DIFFERENTIAL)
T=1.84
T=1.86
T=1.86,W(12INCHES DIFFERENTIAL)
T=1.88
T=1.88,W(12INCHES DIFFERENTIAL)
T=1.90
T=1.90,W(12INCHES DIFFERENTIAL)
T=2.00
T=2.00,W(12INCHES DIFFERENTIAL)
T=2.10
T=2.10,W(12INCHES DIFFERENTIAL)
T=2.20
T=2.20,W(12INCHES DIFFERENTIAL)
T=2.30
T=2.30,W(12INCHES DIFFERENTIAL)
T=2.40
T=2.40,W(12INCHES DIFFERENTIAL)
T=2.50
T=2.50,W(12INCHES DIFFERENTIAL)
T=2.60
T=2.60,W(12INCHES DIFFERENTIAL)
T=2.70
T=2.70,W(12INCHES DIFFERENTIAL)
T=2.80
T=2.80,W(12INCHES DIFFERENTIAL)
T=2.90
T=2.90,W(12INCHES DIFFERENTIAL)
T=3.00
T=3.00,W(12INCHES DIFFERENTIAL)
T=3.10
T=3.10,W(12INCHES DIFFERENTIAL)
T=3.20
T=3.20,W(12INCHES DIFFERENTIAL)
T=3.30
T=3.30,W(12INCHES DIFFERENTIAL)
T=1.81
T=1.81,W(12INCHES DIFFERENTIAL)
T=1.83
T=1.83,W(12INCHES DIFFERENTIAL)
T=1.85
T=1.85,W(12INCHES DIFFERENTIAL)
T=1.87
T=1.87,W(12INCHES DIFFERENTIAL)
T=1.89
T=1.89,W(12INCHES DIFFERENTIAL)
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=29
W(12INCHES DIFFERENTIAL)
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
W(12INCHES DIFFERENTIAL)
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
W(12INCHES DIFFERENTIAL)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
W(12INCHES DIFFERENTIAL)
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
sub41252-37020
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W(12INCHES DIFFERENTIAL)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W(12INCHES DIFFERENTIAL)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
W(12INCHES DIFFERENTIAL)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
W(12INCHES DIFFERENTIAL)
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
SINGLE TYPE
W(12INCHES DIFFERENTIAL),SINGLE TYPE
DOUBLE TYPE
DOUBLE TYPE
W(12INCHES DIFFERENTIAL),DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
W(12INCHES DIFFERENTIAL)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(12INCHES DIFFERENTIAL)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.4
T=1.5
T=1.6
T=1.7
41371SPIDER, REAR DIFFERENTIAL
W(12INCHES DIFFERENTIAL)
9161160814
main91611-60814
29 parts on this diagram · 3 diagrams in section
