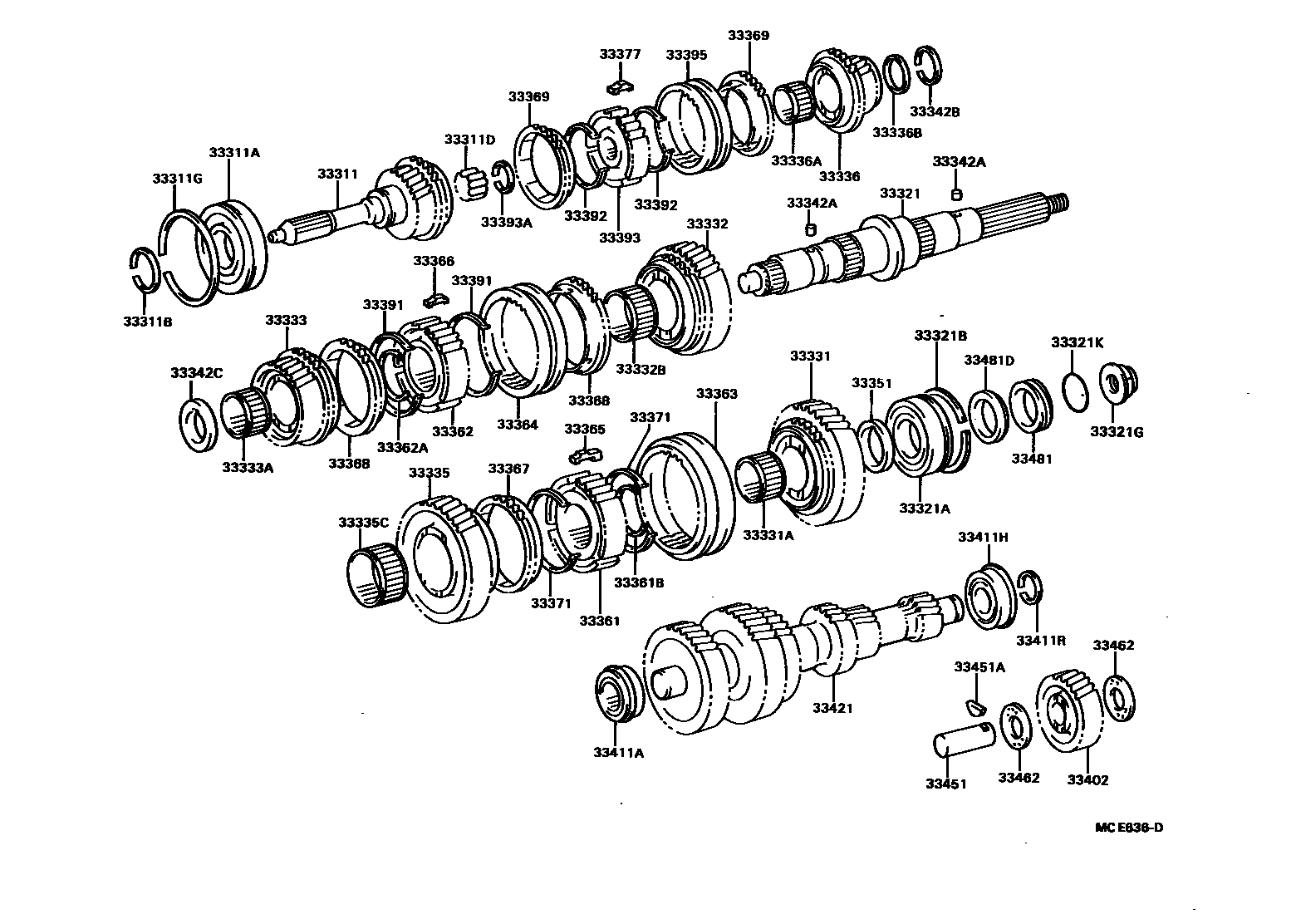

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.50-2.55,MARK 2
T=2.55-2.60,MARK 3
T=2.60-2.65,MARK 4
T=2.65-2.70,MARK 5
T=2.70-2.75,MARK 6
T=2.75-2.80,MARK 7
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.36-2.46
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33336BSPACER (FOR 5TH GEAR BEARING)
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
T=1.90-1.95
T=1.95-2.00
T=2.00-2.05
T=2.05-2.10
T=2.10-2.15
T=2.90-2.95,MARK A
T=2.95-3.00,MARK B
T=3.00-3.05,MARK C
T=3.05-3.10,MARK D
T=3.10-3.15,MARK F
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=1.90-1.95,MARK=2
T=1.95-2.00,MARK=3
T=2.00-2.05,MARK=4
T=2.05-2.10,MARK=5
T=2.10-2.15,MARK=6
T=2.15-2.20,MARK=7
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.90-1.95,MARK=2
T=1.95-2.00,MARK=3
T=2.00-2.05,MARK=4
T=2.05-2.10,MARK=5
T=2.10-2.15,MARK=6
T=2.15-2.20,MARK=7
T=1.85,MARK=8
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.90-1.95,MARK 4
T=1.95-2.00,MARK 5
T=2.00-2.05,MARK 6
T=2.05-2.10,MARK 7
T=2.10-2.15,MARK 8
T=2.15-2.20,MARK 9
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=1.95-2.00,MARK 0
T=2.00-2.05,MARK 1
T=2.05-2.10,MARK 2
T=2.10-2.15,MARK 3
T=2.15-2.20,MARK 4
T=2.20-2.25,MARK 5
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X20-22
N=6,MARK 6X23-25
N=5,MARK 5X22-24
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
53 parts on this diagram · 3 diagrams in section
