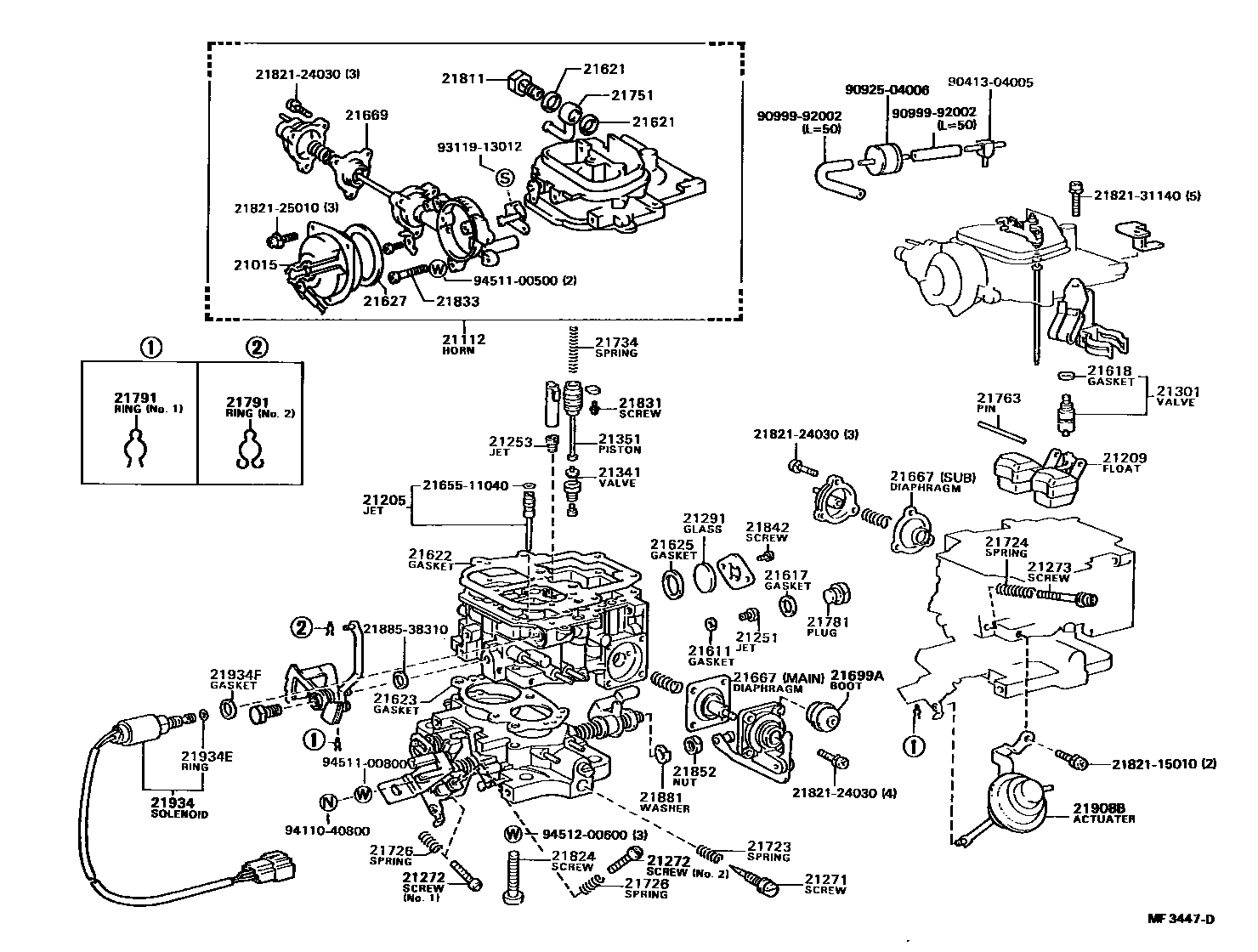

21015HOUSING SUB-ASSY, COIL

main21015-35131i198808-199505

21112HORN, AIR

main21012-73260i198808-198811

main21012-73261i198811-199505

main21012-73440i199106-199505

main21112-35331i198808-199505

21205JET SUB-ASSY, SLOW

main21205-35240i198808-199505

main21205-73220i198808-199505

21209FLOAT SUB-ASSY

main21209-37041i198808-199505

main21209-73110i198808-199505

21251JET, 1ST MAIN

main21244-73260i198808-199505

main90999-41114i198808-199505

21253JET, 2ND MAIN

main21253-37040i198808-199505

sub21253-35410

main21253-71030i198808-199505

21271SCREW, IDLE ADJUSTING

main21271-63070i198808-199505

sub21271-35010

main21271-71030i198808-199505

21272SCREW, 1ST IDLE ADJUSTING

main21272-71011i198808-199505

NO.2

sub21272-71010

main21844-33010i199308-199505

NO.1

main21844-33011i198808-199308

NO.1

sub21844-33010

21273SCREW, THROTTLE ADJUSTING

main21272-71030i198808-198811

main21272-72250i198811-199505

main21273-35211i198808-199505

sub21273-35210

21291GLASS, LEVEL GAGE

main21291-34320i198808-199505

main21291-36120i198808-199505

21301VALVE SUB-ASSY, NEEDLE

main21301-35010i198808-199505

main21301-71030i198808-199505

21341VALVE, POWER

main21304-61060i198808-199505

21351PISTON, POWER

main21351-37040i198808-199505

21611GASKET, MAIN JET

main21611-22010i198808-199505

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i198808-199505

main21633-44150i198808-199505

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i198808-199505

main21637-71030i198808-199505

21621GASKET, UNION NIPPLE

main21633-24030i198808-199505

21622GASKET, AIR HORN

main21622-35540i198808-199505

main21622-72250i198911-199505

main21622-73190i198811-198911

sub21622-72250

main21622-73220i198808-198811

21623GASKET, BODY FLANGE

main21623-35510i198810-199505

sub21623-75080

21625GASKET, LEVEL GAGE

main21625-36120i198808-199505

main21655-60200i198808-199505

21627GASKET, COIL HOUSING

main21627-28150i198808-199505

21667DIAPHRAGM

main21667-35291i198808-199006

MAIN

sub21667-35510

main21667-35510i199006-199505

MAIN

main21667-72080i198808-199505

SUB

sub21675-35510

21669DIAPHRAGM

main21669-35510i198808-199505

21699BOOT(FOR PUMP PLUNGER)

main21656-71030i198808-199505

21699ABOOT(FOR ACCELERATION PUMP)

main21699-37040i198808-199505

21723SPRING, IDLE ADJUSTING

main21723-30030i198808-199505

main21723-37041i198808-199505

sub21723-37040

21724SPRING, THROTTLE ADJUSTING

main21723-38331i198808-199505

sub21723-38330

main21723-71030i198808-199505

21726SPRING, 1ST IDLE ADJUSTING

main21726-38311i198808-199505

sub21726-38310

21734SPRING, POWER PISTON

main21734-37040i198808-199505

21751UNION, NIPPLE

main21894-37041i198808-199505

sub21894-37040

21763PIN, FLOAT LEVER

main21763-34320i198808-199505

main21768-73110i198808-199505

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21776-44310i198808-199505

main21776-72390i199106-199505

main21781-15231i198808-199505

sub21781-15230

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13011i198808-199505

NO.1

sub21791-13010

main21791-13011i198808-199505

NO.2

sub21791-13010

main21797-44050i198808-199505

21811BOLT, UNION NIPPLE

main21811-11060i199403-199505

main21811-11061i198808-199403

sub21811-11060

21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

main93110-16035i198808-199505

21831SCREW, POWER PISTON STOP

main21821-15060i198808-199505

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21804-73150i198808-199505

main21833-33010i198810-199505

main21833-33011i198808-198810

sub21833-33010

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21832-36120i198808-199505

main21842-33010i198810-199505

main21842-33011i198808-198810

sub21842-33010

21852NUT, THROTTLE LEVER SET

main21852-30011i198808-199505

sub21852-30010

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i198808-199505

21908BACTUATOR SET, IDLE-UP

main21609-35540i198808-199505

sub88031-36012

21934SOLENOID, THROTTLE VALVE

main21062-35191i198808-199505

main21391-71070i198808-198811

main21391-73111i198811-199505

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i198808-199505

21934FGASKET

main21617-10010i198808-199505

2165511040RING, O(FOR LIFTER ROD)

main21655-11040

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2188538310

main21885-38310

9041304005

main90413-04005

9092504006

main90925-04006

9099992002

main90999-92002

9311913012

main93119-13012

9411040800

main94110-40800

9451100500

main94511-00500

9451100800

main94511-00800

9451200600

main94512-00600
