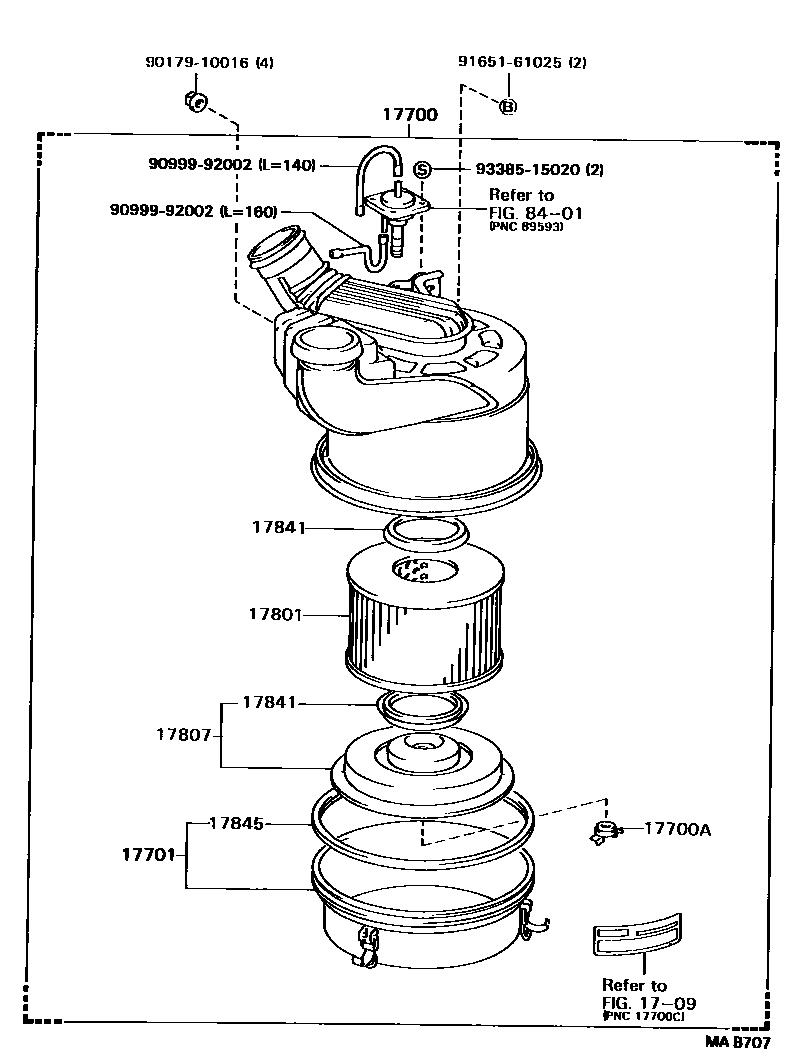

AIR CLEANER

0001 1 0002 1 0003 1SCHNORKEL TYPE & W(PRECLEANER0004 1 0005 1 0008 1 0009 1 0011 1 0012 1 0013 1

1709

17700CLEANER ASSY, AIR

main17700-56420i4Y..YU82..RHD198808-199505

main17700-56430i4Y..YU62,71,82..LHD198808-199505

main17700-56440i4Y..YU62..ARL198808-199204

sub17700-58470

main17700-56440i4Y..YU62,82..T3..(GEN,SA)198808-199505

AIR CLEANER REAR SCHNORKEL TNF PRECLEANER

sub17700-58470

main17700-56450i4Y..YU63198808-199505

main17700-58280i22R..RU85198808-199505

main17700-78010i1W..WU9#198808-199305

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4Y..YU62,71,82..GEN,SA198808-199505

NO.2

main90175-08008i22R..RU85198808-199505

NO.1

main90175-08008i22R..RU85198808-199505

AIR CLEANER REAR SCHNORKEL TNF PRECLEANER

17701CASE SUB-ASSY, AIR CLEANER

main17701-56150i4Y..YU63;4Y..YU62,85..RHD198808-199505

AIR CLEANER REAR SCHNORKEL TNF PRECLEANER

main17701-56170i4Y..YU82..RHD198808-199505

main17701-56180i4Y..YU62,71,82..LHD198808-199505

main17701-58040i1W..WU9#198808-199305

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-58010i22R..RU85198808-199505

main17801-61030i1W..WU9#198808-199305

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i4Y..YU62,82..T3..(GEN,SA)198808-199505

AIR CLEANER REAR SCHNORKEL TNF PRECLEANER

main17807-56020i4Y..YU62,71,82..GEN,SA198808-199505

main17807-58010i22R..RU85198808-199505

main17807-68010i1W..WU9#198808-199305

17841GASKET, FILTER ELEMENT

main17841-44030i22R..RU85198808-199505

main17841-68010i1W..WU9#198808-199305

17845GASKET, AIR CLEANER CAP

main17845-56020i4Y..YU6#,71,8#198808-199505

main17845-68020i1W..WU9#198808-199305

sub17845-17010

8401

9017910016

main90179-10016

9099992002

main90999-92002

9165161025

main91651-61025

9338515020

main93385-15020

13 parts on this diagram · 10 diagrams in section
