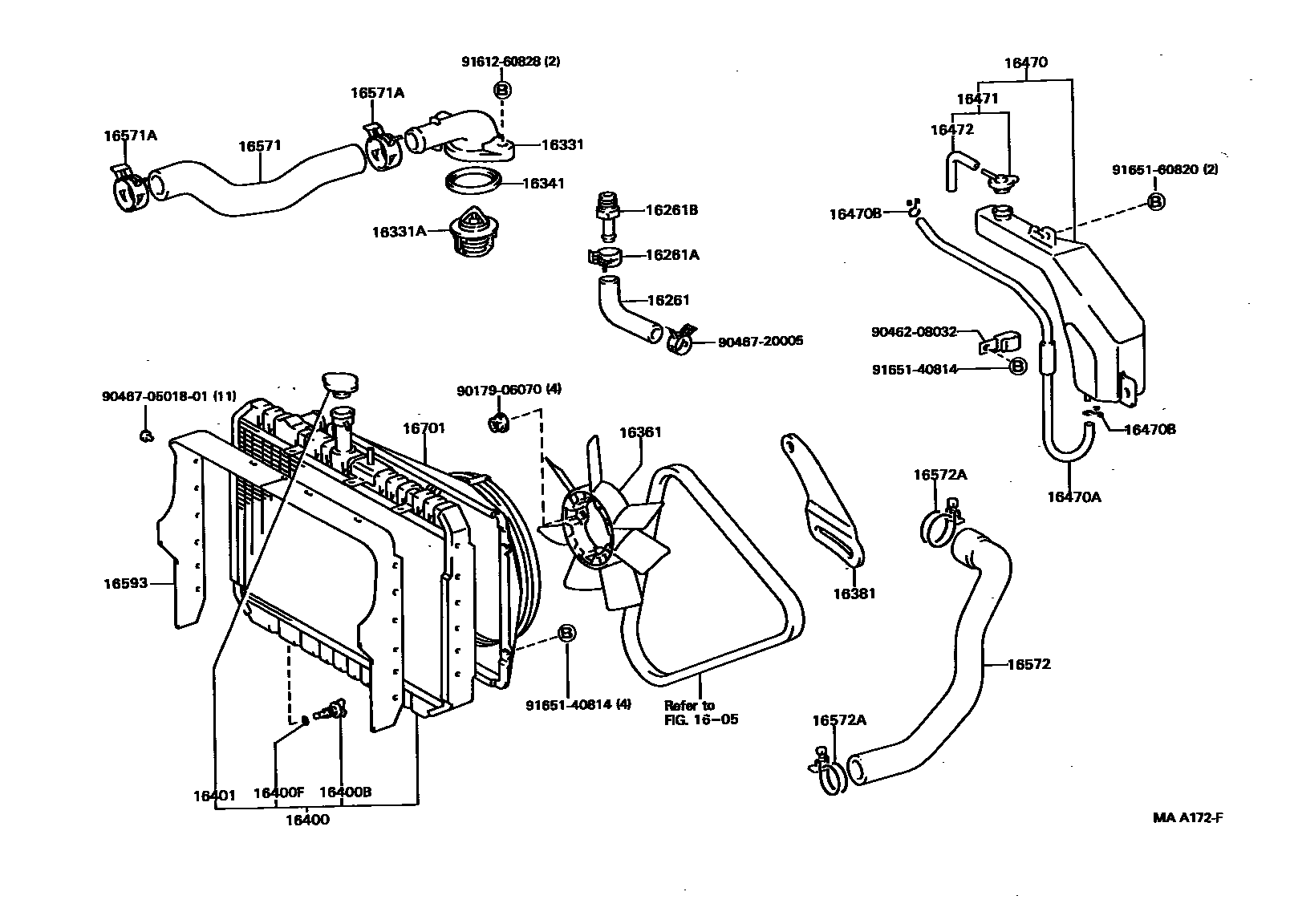

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1605

16261HOSE, WATER BY-PASS

main16261-35050i22R..RU85198808-199505

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-20005i22R..RU85198808-199505

sub96134-41900

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53040i22R..RU85198808-199305

sub90404-53070

main90404-53070i22R..RU85199305-199505

16331OUTLET, WATER

main16331-35050i22R..RU85198808-199009

sub16331-35051

main16331-35051i22R..RU85199009-199505

main16331-71010i4Y..YU6#,71,8#198808-199505

main16331-78010i1W..WU9#198808-199305

16331ATHERMOSTAT

main90916-03046i4Y..YU6#,71,8#199201-199505

*WAX 82-95

main90916-03054i22R..RU85198808-199008

*WAX 82-95

sub90916-03083

main90916-03069i4Y..YU6#,71,82198808-199201

*WAX 82-95

sub90916-03046

main90916-03076i1W..WU9#198808-198910

*WAX 82-95

sub90038-33012

main90916-03083i22R..RU85199008-199505

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-35010i22R..RU85198808-199505

main16341-71010i4Y..YU6#,71,82198808-198912

sub16341-71011

main16341-71011i4Y..YU6#,71,8#198912-199505

16361FAN

main16361-38010i22R..RU85198808-199505

main16361-44032i4Y..YU6#,71,82198808-199505

main16361-78020i1W..WU9#198808-199305

16381BAR, FAN BELT ADJUSTING

main16381-35010i22R..RU85198808-199505

main16381-71010i4Y..YU6#,71,8#198808-199505

main16381-78020i1W..WU9#198808-199305

subS1251-22390

16400RADIATOR ASSY

main16400-35180i4Y..YU85198808-199505

main16400-58122i1W..WU9#198808-199305

main16400-73091i4Y..YU62,82..RHD198808-199505

main16400-73101i4Y..YU6#,71,82..LHD198808-199505

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i22R..RU85198808-199505

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i22R..RU85198808-199505

16401CAP SUB-ASSY, RADIATOR

main16401-71010i22R..RU85198808-199505

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-56121i4Y..YU6#,82..L2,T3198808-199505

main16470-56130i4Y..YU71;4Y..YU62..TW1198808-199505

main16470-58020i22R..RU85198808-199505

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12143i4Y..YU85198808-199505

L=620

main90445-12191i4Y..YU6#,71,82..LHD198808-199505

RADIATOR TO 2WAY

main90445-12192i4Y..YU62,82..RHD198808-199505

RADIATOR TO 2WAY

main90447-12067i4Y..YU62,82..RHD198808-199505

2WAY TO RESERVE TANK

main90447-12092i4Y..YU71;4Y..YU62..TW1198808-199505

2WAY TO RESERVE TANK

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i22R..RU85198808-199505

16471CAP SUB-ASSY, RESERVE TANK

main16405-56052i4Y..YU6#,82..L2,T3198808-199505

main16405-56060i4Y..YU71;4Y..YU62..TW1198808-199505

main16405-56070i1W..WU9#198808-199505

16472HOSE, BREATHER

main16472-56130i4Y..YU71;4Y..YU62..TW1198808-199505

main16472-58010i22R..RU85198808-199505

main85338-56110i4Y..YU6#,82..L2,T3198808-199505

16571HOSE, RADIATOR, INLET

main16571-35090i22R..RU85198808-199505

main16571-73040i4Y..YU6#,71,8#198808-199505

main16571-78020i1W..WU9#198808-199305

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i4Y..YU6#,71,8#198808-199505

sub90467-37003

main90467-42001i1W..WU9#198808-199305

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-35040i22R..RU85198808-199505

main16572-73030i4Y..YU6#,71,82198808-199505

main16572-78011i1W..WU9#198808-199305

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i22R..RU85198808-199505

RADIATOR SIDE

sub90467-37003

main90467-37002i4Y..YU6#,71,82198808-199505

sub90467-37005

main90467-37002i4Y..YU85199403-199505

ENGINE SIDE

sub90467-37005

main96111-10490i22R..RU85198808-199505

ENGINE SIDE

main96111-10510i1W..WU9#198808-199305

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030i4Y..YU6#,71,82198808-199505

main16593-58050i1W..WU9#198808-199505

16701SHROUD SUB-ASSY, FAN

main16701-35010i4Y..YU85198808-199505

main16701-58040i1W..WU9#198808-199305

main16701-73021i4Y..YU6#,71,82198808-199008

sub16701-73022

main16701-73022i4Y..YU6#,71,82199008-199505

9017906070

main90179-06070

9046208032

main90462-08032

904670501801

main90467-0501801

9046720005

main90467-20005

9161260828

main91612-60828

9165140814

main91651-40814

9165160820

main91651-60820

31 parts on this diagram · 4 diagrams in section
