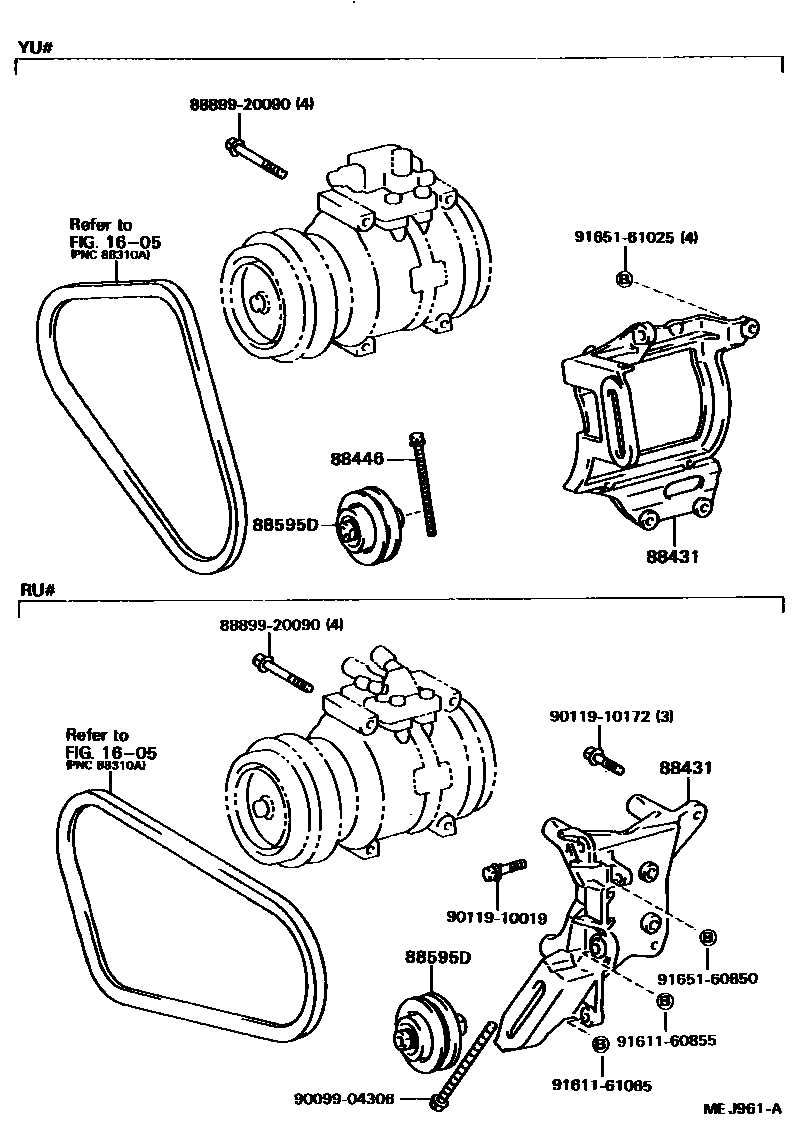

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26150iRU85..GEN198708-198808

main88431-28070iYU62..ARL198708-198808

main88431-36200iWU90..ARL198708-198808

88446BOLT, IDLE PULLEY

main88446-35010iYU81..SA198708-198808

88595DPULLEY ASSY, IDLE

main88440-12160iWU90..RHD..GEN..IV3198708-198808

main88440-16010iRU85..SA198708-198801

sub88440-22050

main88440-35010iRU85..GEN198801-198808

main88440-35020iYU81..SA198708-198808

8889920090COVER, EVAPORATOR

main88899-20090

9009904306

main90099-04306

9011910019

main90119-10019

9011910172

main90119-10172

9161160855

main91611-60855

9161161065

main91611-61065

9165160850

main91651-60850

9165161025

main91651-61025

12 parts on this diagram · 4 diagrams in section
