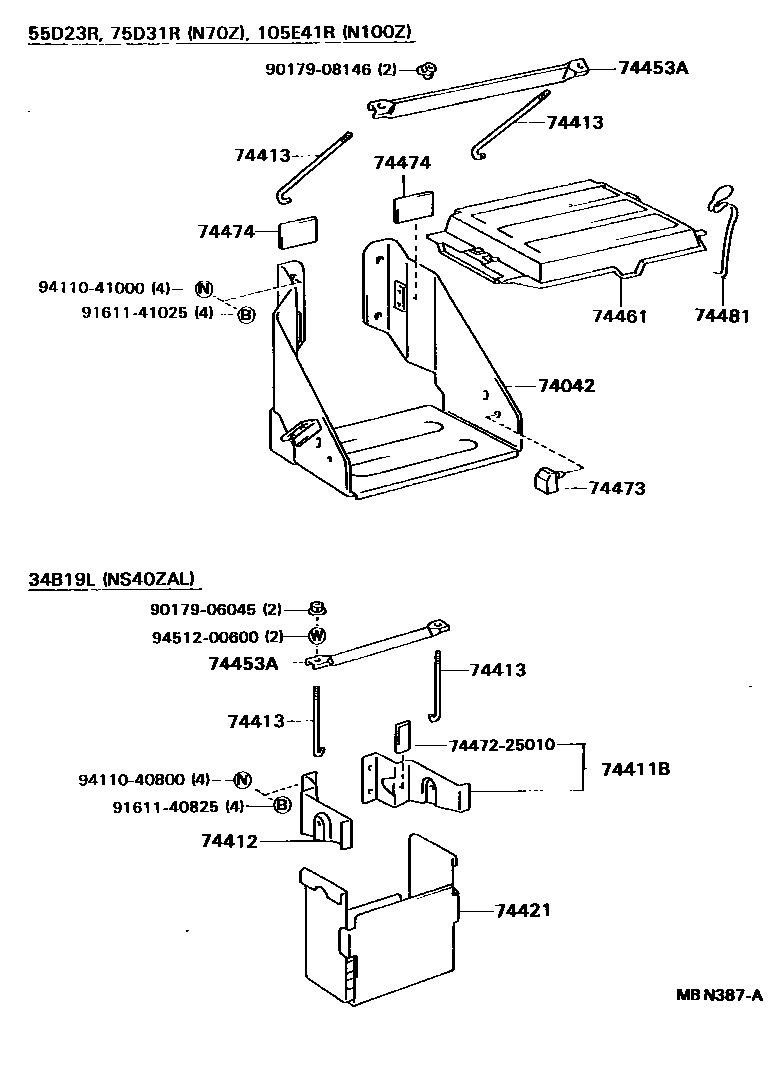

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-36020iYU62,81..GEN198708-198808

main74042-36030iYU71198708-198808

main74042-36041iWU9#198708-198808

main74042-36060iWU90..LHD198708-198808

W(BATTERY=75D31RX2)

main74042-36090iYU63198708-198808

74411BBRACKET, BATTERY, FRONT

main74411-25011iYU6#,71,81..GEN198708-198808

74412BRACKET, BATTERY, REAR

main74412-25011iYU6#,71,81..GEN198708-198808

74413BOLT, BATTERY CLAMP

main74451-25020iYU6#,71,81..GEN198708-198808

main74451-36070iRU85,WU9#;YU62,81..ARL,SA198708-198808

W(BATTERY=55D23R X1)

main74451-36090iWU90..LHD198708-198808

W(BATTERY=75D31RX2)

74421HANGER, BATTERY

main74421-25010iYU6#,71,81..GEN198708-198808

74453ABAR, BATTERY SET PLATE

main74453-25080iYU6#,71,81..GEN198708-198808

main74453-25100iRU85;YU62,81..ARL,SA198708-198808

W(BATTERY=55D23R X1)

main74453-36050iWU9#198708-198808

W(BATTERY=105E41R X 1)

sub74453-36060

main74453-36070iWU90..LHD198708-198808

W(BATTERY=75D31RX2)

sub74453-37130

main74453-36080iYU71198708-198808

W(BATTERY=55D23R X1)

74461COVER, BATTERY

74473SPACER, BATTERY

main74473-36040iYU6#,71,81..GEN198708-198808

74474PAD, BATTERY

main74475-36040iYU6#,71,81..GEN198708-198808

74481CLAMP, BATTERY HOLD DOWN

7447225010PAD, BATTERY SIDE

main74472-25010

9017906045

main90179-06045

9017908146

main90179-08146

9161140825

main91611-40825

9161141025

main91611-41025

9411040800

main94110-40800

9411041000

main94110-41000

9451200600

main94512-00600

18 parts on this diagram · 1 diagram in section
