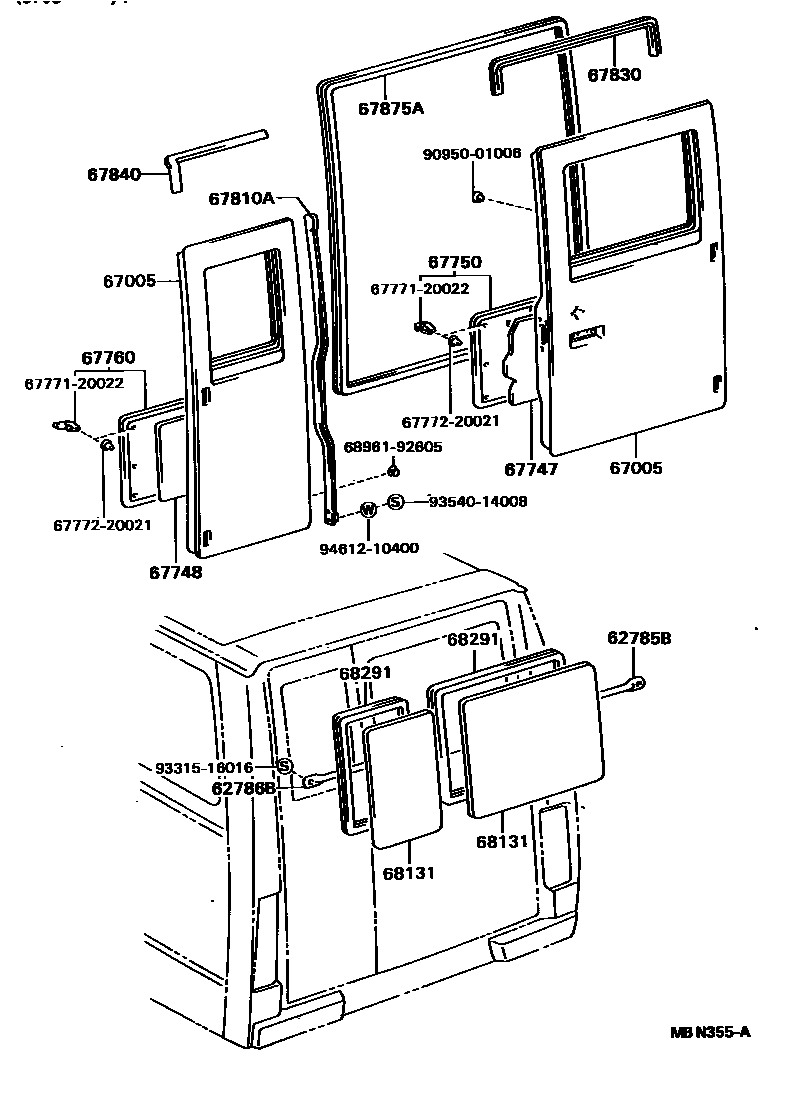

BACK DOOR PANEL & GLASS

62785BTUBE, BACK DOOR WINDOW GUARD, RH

62786BTUBE, BACK DOOR WINDOW GUARD, RH

67005PANEL SUB-ASSY, BACK DOOR

main67005-92607iYU71198708-198808

RH

main67006-92608iYU71198708-198808

LH

67747COVER, BACK DOOR SERVICE HOLE, RH

main67747-92605iYU71198708-198808

main67847-92600iYU71198708-198808

SAUDI ARBIA & GULF SPEC

67748COVER, BACK DOOR SERVICE HOLE, LH

main67748-92605iYU71198708-198808

main67848-92600iYU71198708-198808

SAUDI ARBIA & GULF SPEC

67750BOARD ASSY, BACK DOOR TRIM

main67750-92600-06iYU71198708-198808

BROWN,TRIM4#

67760BOARD ASSY, BACK DOOR TRIM, LH

main67760-92601-06iYU71198708-198808

BROWN,TRIM4#

67810AWEATHERSTRIP SUB-ASSY, BACK DOOR CENTER

main67810-92605iYU71198708-198808

67830WEATHERSTRIP SUB-ASSY, BACK DOOR UPPER, RH

main67830-92605iYU71198708-198808

67840WEATHERSTRIP SUB-ASSY, BACK DOOR UPPER, LH

main67840-92605iYU71198708-198808

67875AWEATHERSTRIP, BACK DOOR

main67881-92600iYU71198708-198808

sub67881-92601

68131GLASS, BACK DOOR

main68131-92605iYU71198708-198808

*TEM,T=4.0,RH

sub68131-37010

main68132-92605iYU71198708-198808

*TEM,T=4.0,LH

sub68132-37010

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-92605iYU71198708-198808

RH

main68292-92605iYU71198708-198808

LH

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

6896192605BOLT, BACK DOOR STAY

main68961-92605

9095001006

main90950-01006

9331516016

main93315-16016

9354014008

main93540-14008

9461210400

main94612-10400

20 parts on this diagram · 1 diagram in section
