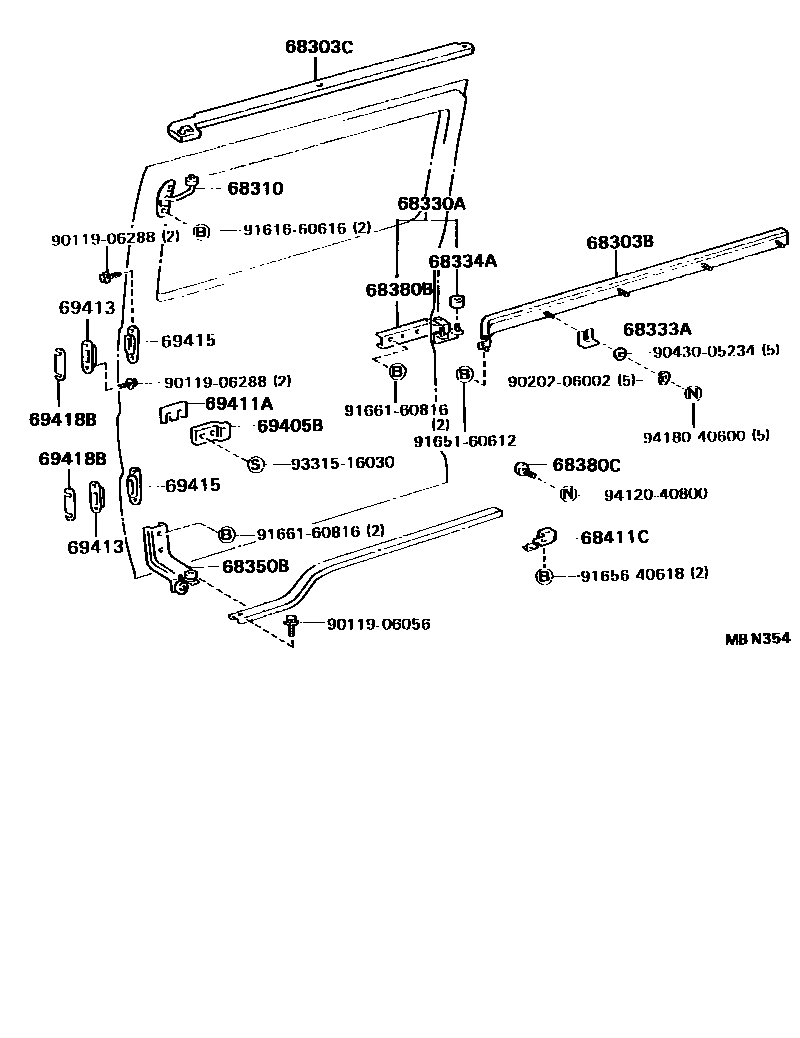

SLIDE ROLLER & RAIL

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-92601iYU71¥10,600198708-198808

68303CBRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL, RH

main68303-95A00iYU71¥8,100198708-198808

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95A01iYU71¥4,210198708-198808

68330AROLLER ASSY, SLIDE

main68330-92601iYU71¥8,200198708-198808

sub68380-92601¥6,700

sub68334-95700¥380

68333ASPACER, SLIDE DOOR CENTER RAIL

main68333-95A00iYU71¥350198708-198808

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700iYU71¥380198708-198808

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-92616iYU71¥11,800198708-198808

68380BHINGE ASSY, SLIDE DOOR, CENTER LH

main68380-92601iYU71¥6,700198708-198808

68380CBUMPER, HOOD, REAR

main53382-90A00iYU71¥310198708-198808

sub53382-90K01¥460

68411CGUARD, SLIDE DOOR LOWER RAIL, REAR RH

main68411-95A00iYU71¥440198708-198808

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-95A00iYU71¥1,170198708-198808

69411ASPACER, SLIDE DOOR OPEN STOP

main69411-95A00iYU71¥370198708-198808

69413STOP, SLIDE DOOR DOWN MALE

main69416-92600iYU71¥510198708-198808

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95A00iYU71¥650198708-198808

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iYU71¥130198708-198808

9011906056

main90119-06056¥130

9011906288

main90119-06288¥120

9020206002

main90202-06002¥110

9043005234

main90430-05234¥180

9161660616

main91616-60616¥90

9165160612

main91651-60612¥90

9165640618

main91656-40618¥120

9166160816

main91661-60816¥130

9331516030

main93315-16030¥180

9412040800

main94120-40800¥90

9418040600

main94180-40600¥90

26 parts on this diagram · 1 diagram in section
