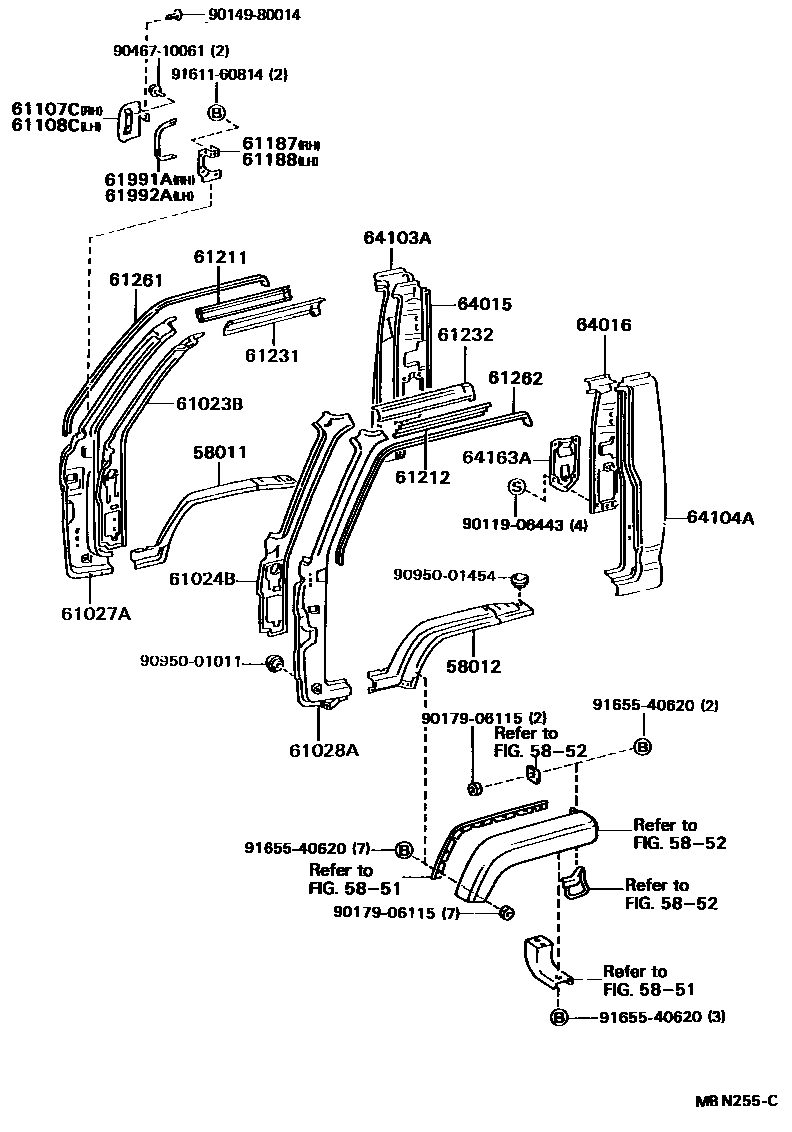

SIDE MEMBER

0001 1 0002 1 0003 1

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95444iRU85,WU9#,YU6#,81..L1,L2,T3198708-198808

sub58011-37010

main58011-95445iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main58011-95448iYU62..TW1198708-198808

sub58011-37030

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95440iRU85,WU9#,YU6#,81..L1,L2,T3198708-198808

sub58012-37010

main58012-95441iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main58012-95445iYU62..TW1198708-198808

sub58012-37040

5851

5852

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iRU85,WU9#,YU62,81..RHD198708-198808

main61023-95401iRU85,WU9#,YU6#,71,81..LHD198708-198808

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iRU85,WU9#,YU62,81..RHD198708-198808

sub61024-95403

main61024-95401iRU85,WU9#,YU6#,71,81..LHD198708-198808

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iWU90..RHD..GEN..IV3198708-198808

W(RADIO)

sub61027-37010

main61027-95401iRU85,WU9#,YU6#,71,81198708-198808

sub61027-37020

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iRU85,WU9#,YU6#,71,81198708-198808

sub61028-37030

main61028-95401iYU62..TW1198708-198808

W(RADIO)

sub61028-37040

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-95415iWU90,YU62..ARL198708-198808

61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH

main61108-95416iWU90,YU62..ARL198708-198808

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iWU90,YU62..ARL198708-198808

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iWU90,YU62..ARL198708-198808

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iYU62..T3;RU85,WU9#,YU63,71,81198708-198808

main61211-95404iYU62..TW1198708-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iYU62..T3;RU85,WU9#,YU63,71,81198708-198808

main61212-95404iYU62..TW1198708-198808

61231RAIL, ROOF SIDE, INNER RH

main61203-95400iYU62..TW1198708-198808

main61231-92600iYU71198708-198808

main61231-95405iRU85,WU9#,YU62,81..RHD198708-198808

main61231-95406iRU85,WU9#,YU6#,81..LHD..(L1,L2,T3)198708-198808

61232RAIL, ROOF SIDE, INNER LH

main61204-95401iYU62..TW1198708-198808

main61232-95405iYU62..T3..GEN;RU85,WU9#,YU63,71,81..LHD198708-198808

sub61232-95406

main61232-95406iRU85,WU9#,YU62,81..RHD198708-198808

61261CHANNEL, ROOF DRIP, RH

main61261-92602iYU71198708-198808

sub61261-37010

main61261-95407iRU85,WU9#,YU6#,81198708-198808

61262CHANNEL, ROOF DRIP, LH

main61262-92602iYU71198708-198808

sub61262-37010

main61262-95407iRU85,WU9#,YU6#,81198708-198808

61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH

main61991-95400iWU90,YU62..ARL198708-198808

sub61991-37010

61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH

main61992-95400iWU90,YU62..ARL198708-198808

sub61992-37010

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-92604iYU71198708-198808

sub64015-92603

sub90333-20001

main64015-95400iYU6#,81..(L1,L2,T3)..(GEN,SA)198708-198808

sub64015-95411

main64015-95401iYU62..ARL198708-198808

SWITZERLAND SPEC

sub64015-95411

main64015-95402iRU85,WU9#..GEN,SA198708-198808

main64015-95403iWU90..ARL198708-198808

NEW ZEALAND SPEC

main64015-95405iWU9#..LHD..IV3198708-198808

PORTUGAL SPEC

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-92604iYU71198708-198808

sub64016-92603

sub90333-20001

main64016-95400iYU6#,81..(L1,L2,T3)..(GEN,SA)198708-198808

sub64016-95404

main64016-95401iYU62..ARL198708-198808

SWITZERLAND SPEC

sub64016-95415

main64016-95402iRU85,WU9#..GEN,SA198708-198808

main64016-95403iWU90..ARL198708-198808

NEW ZEALAND SPEC

main64016-95407iWU9#..LHD..IV3198708-198808

PORTUGAL SPEC

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-95401iRU85,WU9#,YU6#,81..(L1,L2,T3)..(GEN,SA)198708-198808

sub64103-95403

main64103-95402iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main64103-95403iYU62..ARL198708-198808

main64103-95404iWU90..ARL198708-198808

NEW ZEALAND SPEC

main64103-95412iYU62..TW1198708-198808

sub64103-37080

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-95401iRU85,WU9#,YU6#,81..(L1,L2,T3)..(GEN,SA)198708-198808

sub64104-95403

main64104-95402iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main64104-95403iYU62..ARL198708-198808

main64104-95404iWU90..ARL198708-198808

NEW ZEALAND SPEC

main64104-95414iYU62..TW1198708-198808

sub64104-37080

64163ACOVER, BACK CORNER, INNER

main64163-95403iYU6#,81..GEN,SA198708-198808

main64163-95404iYU62..ARL198708-198808

SWITZERLAND SPEC

main64163-95410-06iWU90..ARL198708-198808

BROWN,TRIM4#

sub64163-95901

sub64163-95410

main64163-95410-06iWU90..ARL198708-198808

NEW ZEALAND SPEC,BROWN,TRIM4#

sub64163-95901

sub64163-95410

main64163-95410-06iWU90..ARL198708-198808

PORTUGAL SPEC,BROWN,TRIM4#

sub64163-95901

sub64163-95410

main64163-95411-06iRU85,WU9#,YU71..GEN,SA198708-198808

BROWN,TRIM4#

sub64163-95902

9011906443

main90119-06443

9014980014

main90149-80014

9017906115

main90179-06115

9046710061

main90467-10061

9095001011

main90950-01011

9095001454

main90950-01454

9161160814

main91611-60814

9165540620

main91655-40620

33 parts on this diagram · 3 diagrams in section
