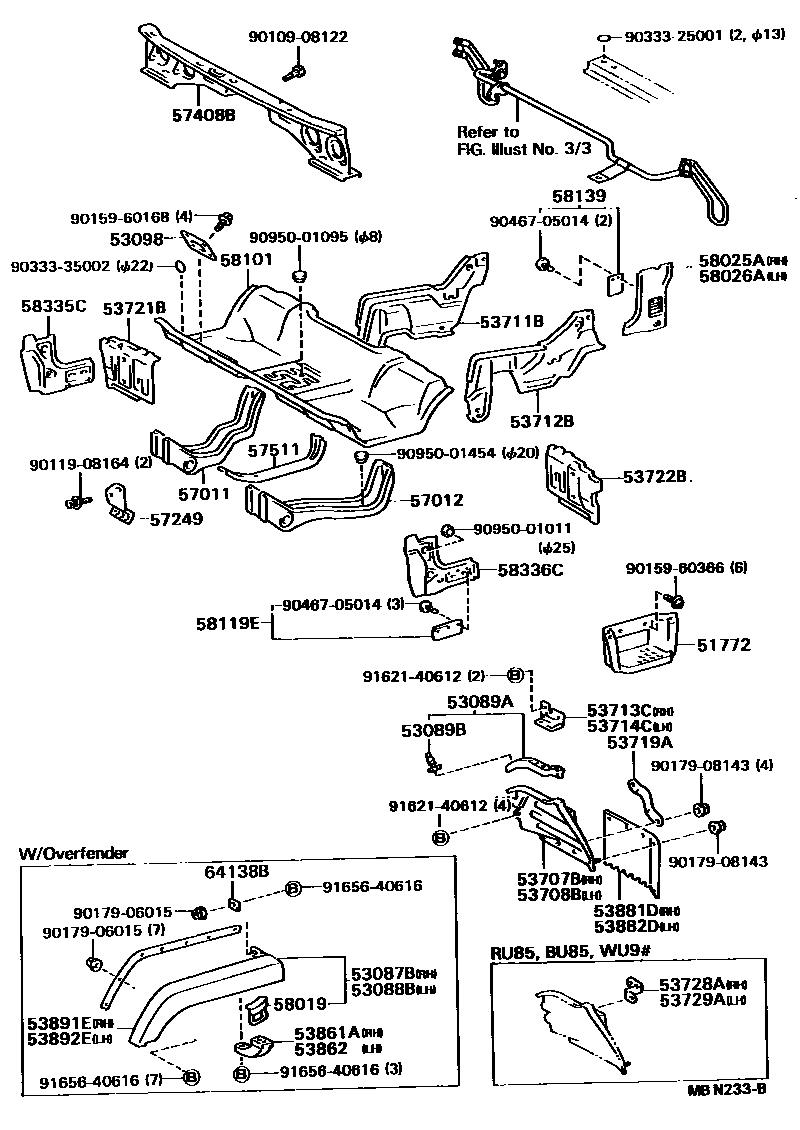

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51772PLATE, STEP

main51771-95406iRU85,WU9#,YU6#,71,81¥5,700198708-198808

RH

main51772-95406iRU85,WU9#,YU6#,71,81¥5,700198708-198808

LH

53087BEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH

main53087-95400iYU81..LHD..IV3¥4,370198708-198808

SWITZERLAND SPEC

53088BEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH

main53088-95400iYU81..LHD..IV3¥4,360198708-198808

SWITZERLAND SPEC

53089AMUDGUARD SUB-ASSY, FRONT

main53089-95400iRU85,WU9#,YU6#,81..L1,L2,T3¥1,160198708-198808

53089BCLIP, FRONT MUDGUARD

main67868-95401iRU85,WU9#,YU6#,81..L1,L2,T3¥90198708-198808

53098COVER SUB-ASSY, AIR CLEANER INLET HOLE

main53098-95402iYU6#,71,81¥670198708-198808

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-92607iYU71¥12,400198708-198808

main53715-95402iYU6#,81..L1,L2,T3¥8,000198708-198808

main53715-95403iRU85,WU9#¥8,000198708-198808

main53715-95405iYU62..TW1¥6,100198708-198808

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-92607iYU71¥12,700198708-198808

main53716-95402iYU6#,81..L1,L2,T3¥8,000198708-198808

main53716-95403iRU85,WU9#¥8,000198708-198808

main53716-95404iYU62..TW1¥6,000198708-198808

sub53716-25010¥5,100

sub90950-01029¥280

53711BAPRON, FRONT FENDER, FRONT RH

main53711-95410iYU6#,71,81¥15,000198708-198808

main53711-95411iRU85,WU9#¥22,700198708-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-95414iYU62,81..RHD¥18,600198708-198808

sub53712-95416¥18,400

sub90333-40001¥100

main53712-95415iRU85,WU9#¥22,700198708-198808

main53712-95416iYU6#,71,81..LHD¥18,400198708-198808

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-95406iYU6#,81..L1,L2,T3¥510198708-198808

sub53713-37010¥520

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-95406iYU6#,81..L1,L2,T3¥510198708-198808

sub53714-37010¥520

53719ABRACE, FENDER APRON

main53719-92600iYU71;YU62..TW1¥1,180198708-198808

main53719-95403iRU85,WU9#,YU63;YU62,81..T3..GEN¥1,260198708-198808

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-95400iRU85,WU9#¥8,000198708-198808

sub53707-37030¥8,000

main53721-95402iYU62,81..RHD¥3,270198708-198808

sub53721-37010¥3,400

main53721-95403iYU6#,71,81..LHD¥2,090198708-198808

sub53721-37030¥2,180

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-95400iRU85,WU9#¥8,000198708-198808

sub53708-37040¥8,000

main53722-95403iYU62,81..RHD¥2,090198708-198808

sub53722-37020¥2,180

main53722-95404iYU6#,71,81..LHD¥3,270198708-198808

sub53722-37010¥3,400

53728ABRACKET, FENDER APRON, RH

main53728-95400iRU85,WU9#¥1,070198708-198808

53729ABRACKET, FENDER APRON, LH

main53729-95400iRU85,WU9#¥1,060198708-198808

53861ABRACKET, FRONT WHEEL OPENING, NO.1

main53861-95408iYU81..LHD..IV3¥1,650198708-198808

SWITZERLAND SPEC

53862BRACKET, FRONT WHEEL OPENING, NO.2

main53862-95407iYU81..LHD..IV3¥1,650198708-198808

SWITZERLAND SPEC

53881DMUDGUARD, FRONT RH

main53881-92604iYU71¥2,370198708-198808

main53881-95400iYU6#,81..L1,L2,T3¥2,360198708-198808

main53881-95401iYU62..TW1¥2,760198708-198808

main53881-95402iRU85,WU9#¥2,370198708-198808

53882DMUDGUARD, FRONT LH

main53881-92604iYU71¥2,370198708-198808

main53881-95400iYU6#,81..L1,L2,T3¥2,360198708-198808

main53881-95401iYU62..TW1¥2,760198708-198808

main53881-95402iRU85,WU9#¥2,370198708-198808

53891EPACKING, FRONT WHEEL OPENING TRIM, RH

main53891-95401iYU81..LHD..IV3¥2,080198708-198808

SWITZERLAND SPEC

53892EPACKING, FRONT WHEEL OPENING TRIM, LH

main53892-95400iYU81..LHD..IV3¥2,080198708-198808

SWITZERLAND SPEC

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-95400iRU85,WU9#,YU6#,71,81¥7,800198708-198808

57012MENBER SUB-ASSY

main57012-92602iYU71;YU62..TW1¥11,500198708-198808

sub57012-95400¥7,800

main57012-95400iYU6#,81..L1,L2,T3¥7,800198708-198808

main57012-95404iRU85,WU9#¥7,900198708-198808

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95400iRU85,WU9#,YU62,81..RHD¥1,600198708-198808

main57249-95401iRU85,WU9#,YU6#,71,81..LHD¥1,610198708-198808

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-95407iRU85,WU9#..RHD..(GEN,SA)¥29,500198708-198808

main57408-95408iRU85,WU9#..LHD¥29,500198708-198808

main57408-95411iRU85..SA¥29,500198708-198808

W(AIR CONDITIONER)

main57408-95412iWU9#..LHD..IV3¥29,500198708-198808

W(AIR CONDITIONER)

main57408-95416iYU71;YU62..TW1¥18,600198708-198808

W(AIR CONDITIONER)

main57408-95417iYU81..LHD..IV3¥18,600198708-198808

SWITZERLAND SPEC & W(TILT CAB)

main57408-95418iYU6#,71,81..LHD¥18,600198708-198808

sub57408-95416¥18,600

sub90950-01061¥240

sub91661-60820¥130

main57408-95419iYU62..ARL¥18,600198708-198808

main57408-95420iYU81..SA¥18,600198708-198808

W(AIR CONDITIONER)

main57408-95421iYU81..RHD¥18,600198708-198808

sub57408-95420¥18,600

sub90950-01061¥240

sub91661-60820¥130

main57408-95423iWU90..ARL¥20,400198708-198808

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-95406iWU90..ARL¥7,400198708-198808

58019BRACKET SUB-ASSY, CAB TILT GRIP

main58019-95400iYU81..LHD..IV3¥1,820198708-198808

SWITZERLAND SPEC

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-95400iYU62..TW1¥7,800198708-198808

sub58025-37010¥7,800

sub90950-01029¥280

main58271-95400iYU6#,81..L1,L2,T3¥3,130198708-198808

main58271-95401iRU85,WU9#¥3,100198708-198808

sub58271-37010¥3,100

sub90950-01029¥280

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95400iYU62..TW1¥7,800198708-198808

SAUDI ARABIA & GULF SPEC

main58026-95401iYU62..TW1¥7,800198708-198808

main58272-95400iYU6#,81..L1,L2,T3¥3,130198708-198808

main58272-95401iYU6#,81..LHD..(L1,L2,T3)¥3,130198708-198808

SAUDI ARABIA & GULF SPEC

main58272-95403iRU85,WU9#¥2,870198708-198808

sub58272-37010¥3,500

sub90333-20001¥70

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95447iYU6#,71,81..LHD¥44,500198708-198808

main58101-95448iYU62,81..RHD¥44,500198708-198808

main58101-95449iRU85,WU9#..RHD¥51,900198708-198808

sub58111-95414¥44,500

sub58116-95400¥3,870

sub58251-95403¥1,970

sub58252-95403¥2,090

sub94220-00600¥80

sub94220-00800¥90

main58101-95450iWU90..ARL¥51,900198708-198808

W(P.T.0)

sub58111-95415¥51,600

sub58116-95400¥3,870

sub58251-95403¥1,970

sub58252-95403¥2,090

sub90174-06002¥70

sub90174-08008¥160

main58101-95452iWU9#..LHD..IV3¥51,900198708-198808

W(P.T.0)

sub58111-95417¥51,600

sub58126-95400¥3,870

sub58251-95404¥2,080

sub58252-95404¥1,980

sub94220-00600¥80

sub94220-00800¥90

main58101-95454iRU85,WU9#..LHD¥51,900198708-198808

sub58111-95419¥51,600

sub58126-95400¥3,870

sub58251-95404¥2,080

sub58252-95404¥1,980

sub94220-00600¥80

sub94220-00800¥90

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400iRU85,WU9#,YU6#,71,81¥620198708-198808

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iYU6#,81..L1,L2,T3¥510198708-198808

LH

main58139-95401iYU6#,81..L1,L2,T3¥510198708-198808

RH

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95402iRU85,WU9#,YU6#,71,81¥2,960198708-198808

sub58335-95401¥2,930

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95402iRU85,WU9#,YU6#,71,81¥2,960198708-198808

sub58336-95401¥2,930

64138BSEAL, FRONT WHEEL OPENING

main64138-95400iYU81..LHD..IV3¥200198708-198808

SWITZERLAND SPEC

9010908122

main90109-08122¥170

9011908164

main90119-08164¥160

9015960168

main90159-60168¥140

9015960366

main90159-60366¥120

9017906015

main90179-06015¥520

9017908143

main90179-08143¥110

9033325001

main90333-25001¥140

9033335002

main90333-35002¥80

9046705014

main90467-05014¥110

9095001011

main90950-01011¥170

9095001095

main90950-01095¥130

9095001454

main90950-01454¥110

9162140612

main91621-40612¥170

9165640616

main91656-40616¥100

51 parts on this diagram · 4 diagrams in section
