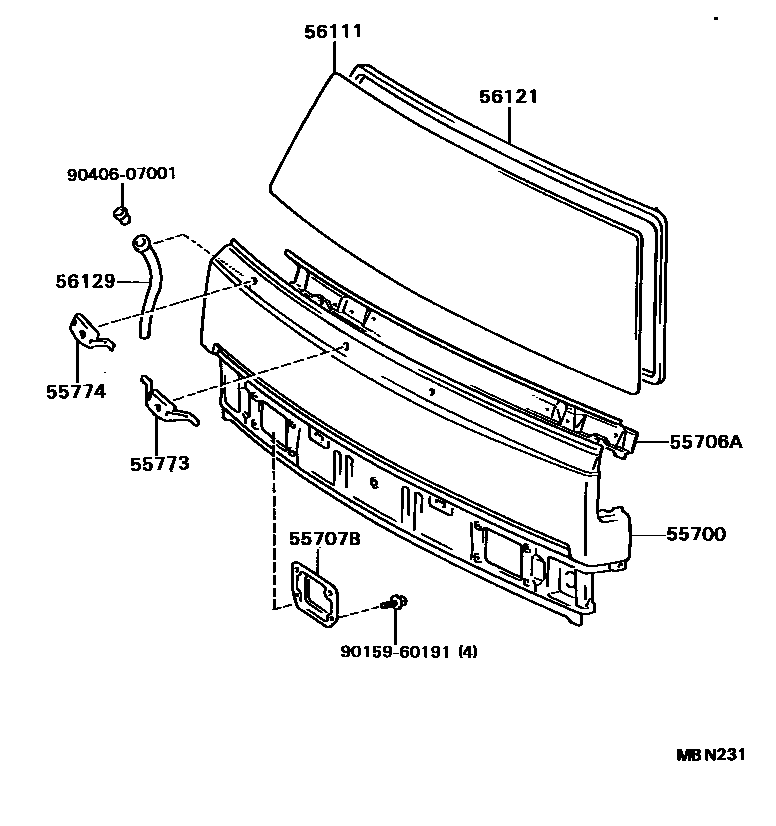

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95443iYU62,81..RHD198708-198808

sub55701-95449

main55701-95444iYU6#,71,81..LHD198708-198808

main55701-95445iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main55701-95446iRU85,WU9#..RHD198708-198808

main55701-95447iRU85,WU9#..LHD198708-198808

sub55701-95448

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95405iYU62,81..RHD198708-198808

main55706-95406iYU6#,71,81..LHD198708-198808

main55706-95407iRU85,WU9#..RHD198708-198808

main55706-95408iRU85,WU9#..LHD198708-198808

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95404iYU6#..(L2,T3)..WT..GEN198709-198808

main55723-95404iWU90..LHD..CBU198709-198808

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iYU6#,71,81198708-198808

main55773-95407iRU85,WU9#198708-198808

RH

main55773-95408iRU85,WU9#198708-198808

LH

55774RETAINER, WIPER SHAFT SIDE

main55774-95402iYU62,81..RHD198708-198808

main55774-95403iYU6#,71,81..LHD198708-198808

main55774-95406iRU85,WU9#..RHD198708-198808

main55774-95407iRU85,WU9#..LHD198708-198808

56111GLASS, WINDSHIELD

main56111-95415iYU6#,71,81..GEN198708-198808

*ZT,T=5.0

main56111-95416iYU62,81..ARL,SA198708-198808

*LAM,T=5.3

main56111-95417iYU6#,71,81..GEN198708-198808

*LAM,T=5.3

main56111-95418iRU85,WU9#..GEN198708-198808

*ZT,T=5.0

main56111-95419iRU85,WU9#..GEN198708-198808

*LAM,T=5.7

main56111-95420iRU85,WU9#..GEN198708-198808

*LAM,T=5.7

sub56111-37030

56121WEATHERSTRIP, WINDSHIELD

main56121-95411iRU85,WU9#198708-198808

main56121-95A06iYU6#,71,81198708-198808

56129HOSE, WINDSHIELD DRAIN

main56129-95400×2iRU85,WU9#,YU6#,71,81198708-198808

sub56129-95J00

9015960191

main90159-60191

9040607001

main90406-07001

10 parts on this diagram · 1 diagram in section
