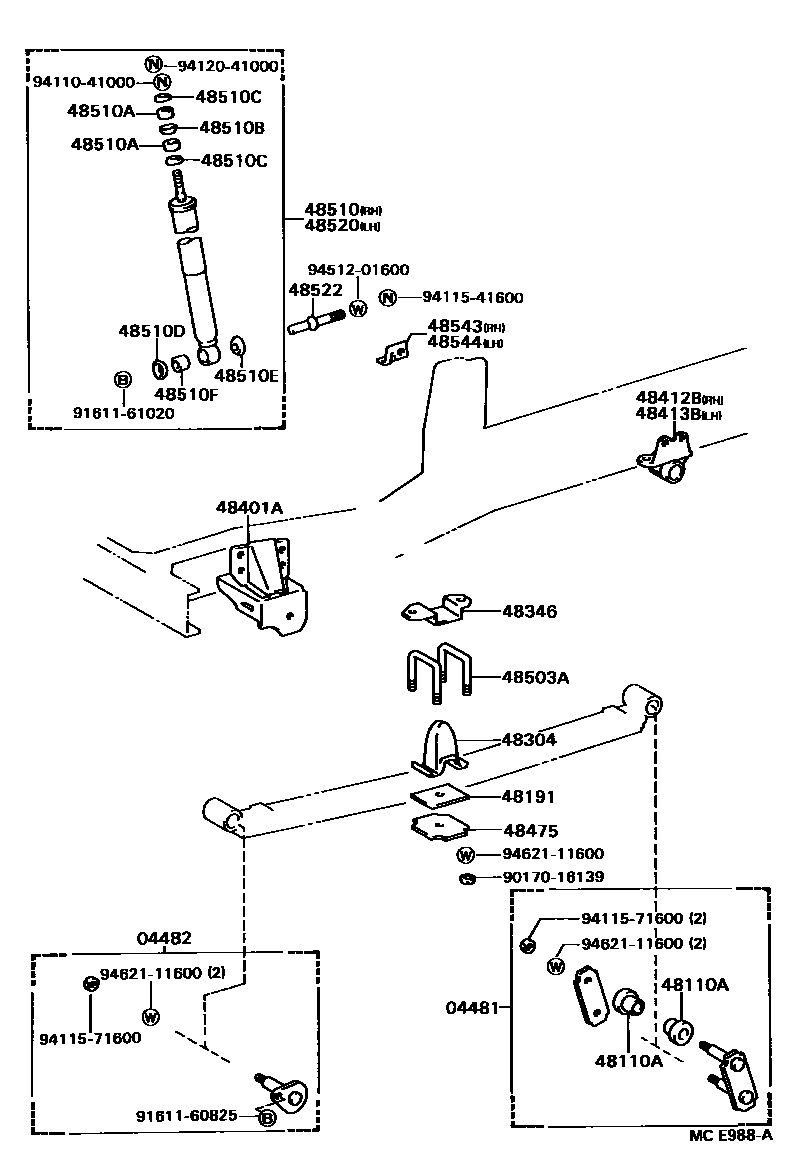

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04481SHACKLE KIT, FRONT SPRING

main04481-36070iYU6#,71,81198708-198808

sub04481-36090

main04481-36080iRU85,WU9#198708-198808

04482PIN KIT, FRONT SPRING

main04482-36010iYU6#,71,81198708-198808

sub04482-36011

main04482-36020iRU85,WU9#198708-198808

48110SPRING ASSY, FRONT, RH

main48110-3B200iYU62..ARL198708-198808

5-LEAF

main48110-3B220iYU62,71..GEN198708-198808

5-LEAF

main48110-3B260iYU81..RHD198708-198808

5-LEAF

main48110-3B270iYU63,81..LHD198708-198808

5-LEAF

main48110-3B270iYU63,81..LHD198708-198808

5-LEAF,HEAVY DUTY SPEC

main48110-3B390iWU90..RHD..(ARL,GEN)198708-198808

8-LEAF

main48110-3B400iWU9#..LHD198708-198808

8-LEAF

main48110-3B410iWU9#..SA198708-198808

10-LEAF

main48110-3B570iRU85..SA198708-198808

8-LEAF

main48110-3B580iRU85..GEN198708-198808

8-LEAF

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-23037iYU6#,71,81198708-198808

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-25010iYU6#,71198708-198808

main48191-35020iRU85,WU9#198708-198808

main48191-36110iYU81198708-198808

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36110iWU9#198708-198808

main48304-36150iRU85,YU6#,71,81198708-198808

48346STOPPER, BUMPER, FRONT

main48346-36040iYU62,71,81198708-198808

main48346-36050iYU63198708-198808

48401ABRACKET SUB-ASSY, SPRING, NO.1

main48411-36120iYU62,71,81198708-198808

RH

main48411-36130iRU85198708-198808

RH

main48411-36140iWU9#198708-198808

RH

main48411-36150iYU63198708-198808

RH

main48412-36120iYU62,71,81198708-198808

LH

main48412-36130iRU85198708-198808

LH

main48412-36140iWU9#198708-198808

LH

main48412-36150iYU63198708-198808

LH

48412BBRACKET, SPRING, NO.2 RH

main48413-36050iYU62,71,81198708-198808

main48413-36060iYU63198708-198808

main48433-36060iRU85,WU9#198708-198808

48413BBRACKET, SPRING, NO.2 LH

main48413-36050iYU62,71,81198708-198808

main48413-36060iYU63198708-198808

main48434-36060iRU85198708-198808

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iWU9#..ARL,GEN;RU85,YU6#,71,81198708-198808

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-16015iWU9#..ARL,GEN198708-198808

L=135

sub90117-16033

main90117-16016iWU9#..SA198708-198808

L=145

main90117-16017iRU85198708-198808

L=130

main90117-16020iYU6#,71,81198708-198808

L=95

main90117-16093iYU6#,71,81198708-198808

L=105

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39495iRU85198708-198808

MARK 48511-36090

sub48511-39496

main48511-39505iYU6#,71,81198708-198808

MARK 48511-36150

sub48511-39506

main48511-39525iWU9#198708-198808

MARK 48511-36140

sub48511-39526

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iRU85,WU9#,YU6#,71,81198708-198808

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iRU85,WU9#,YU6#,71,81198708-198808

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iRU85,WU9#,YU6#,71,81198708-198808

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03007iRU85,WU9#,YU6#,71,81198708-198808

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iRU85,WU9#,YU6#,71,81198708-198808

48510FCUSHION, SHOCK ABSORBER

main90385-16009iRU85,WU9#,YU6#,71,81198708-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39495iRU85198708-198808

MARK 48511-36090

sub48511-39496

main48511-39505iYU6#,71,81198708-198808

MARK 48511-36150

sub48511-39506

main48511-39525iWU9#198708-198808

MARK 48511-36140

sub48511-39526

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iRU85,WU9#,YU6#,71,81198708-198808

48543REINFORCEMENT, FRONT ABSORBER BRACKET, RH

main48543-36010iYU63198708-198808

48544REINFORCEMENT, FRONT ABSORBER BRACKET, LH

main48544-36010iYU63198708-198808

9017016139

main90170-16139

9161160825

main91611-60825

9161161020

main91611-61020

9411041000

main94110-41000

9411541600

main94115-41600

9411571600

main94115-71600

9412041000

main94120-41000

9451201600

main94512-01600

9462111600

main94621-11600

32 parts on this diagram · 6 diagrams in section
