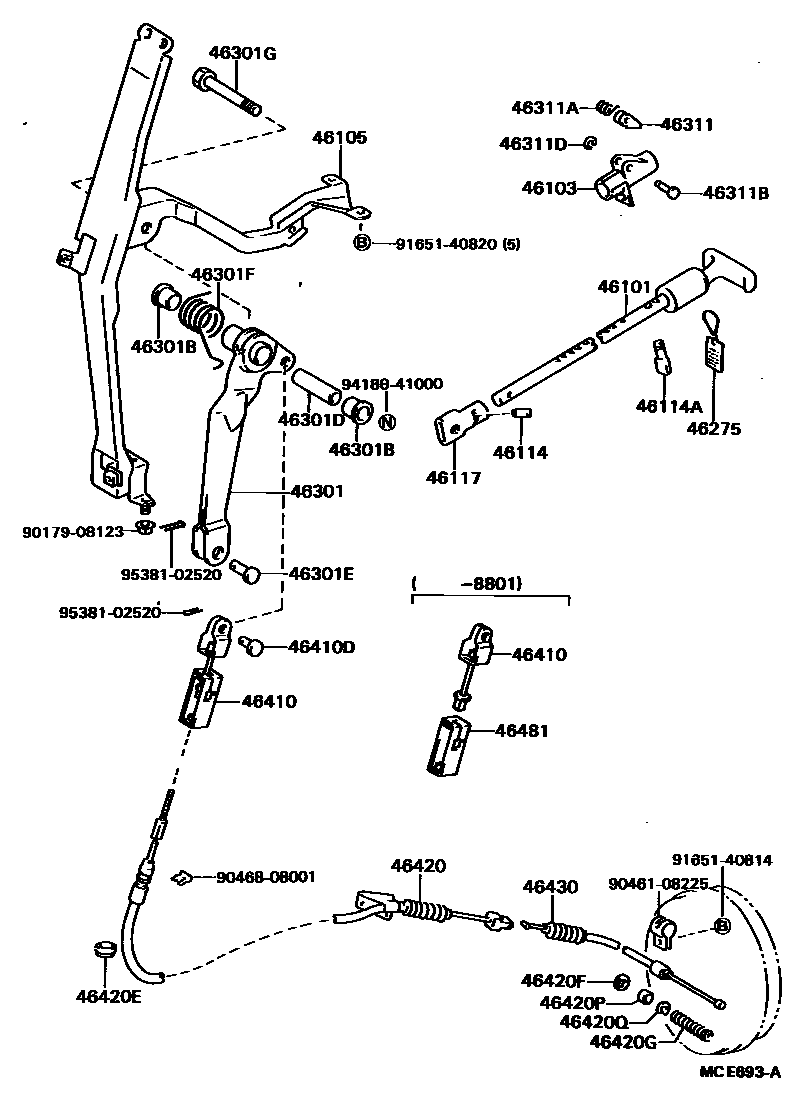

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-36180-01iRU85,WU9#,YU62,81..RHD198708-198808

BLACK,TRIM4#

sub46101-36180

main46101-36190-01iRU85,WU9#,YU6#,71,81..LHD198708-198808

BLACK,TRIM4#

sub46101-36190

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-36140iRU85,WU9#,YU62,81..RHD198708-198808

main46103-36150iRU85,WU9#,YU6#,71,81..LHD198708-198808

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-25010iRU85,WU9#,YU62,81..RHD198708-198808

sub46105-25011

main46105-25020iYU6#,71,81..LHD198708-198808

sub46105-25021

main46105-36040iRU85,WU9#..LHD198708-198808

sub46105-36041

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iRU85,WU9#..LHD198708-198808

46114APIN, PARKING BRAKE PLUNGER

main46114-20010iRU85,WU9#,YU6#,71,81198708-198808

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iRU85,WU9#,YU62,81..RHD198708-198808

main46117-30020iRU85,WU9#,YU6#,71,81..LHD198708-198808

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iRU85,WU9#,YU6#,71,81198708-198808

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36070iWU9#..ARL,GEN;RU85,YU6#,71,81198708-198808

main46301-36080iWU9#..SA198708-198808

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-13007iRU85,WU9#,YU6#,71,81198708-198808

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10004iRU85,WU9#,YU6#,71,81198708-198808

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iRU85,WU9#,YU6#,71,81198708-198808

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35024iRU85,WU9#,YU6#,71,81198708-198808

46301GBOLT(FOR INTERMEDIATE LEVER)

main91111-71070iRU85,WU9#,YU6#,71,81198708-198808

46311PAWL, PARKING BRAKE

main46311-26010iRU85,WU9#,YU6#,71,81198708-198808

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iRU85,WU9#,YU6#,71,81198708-198808

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iRU85,WU9#,YU6#,71,81198708-198808

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iRU85,WU9#,YU6#,71,81198708-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36121iRU85,WU9#,YU6#,71,81198708-198801

sub46410-36350

main46410-36350iRU85,WU9#,YU6#,71,81198801-198808

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iRU85,WU9#,YU6#,71,81198708-198808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-36240iYU62,81..RHD198708-198808

main46420-36260iYU62,71,81..LHD198708-198808

main46420-36281iYU63198708-198808

main46420-36290iRU85,WU9#..RHD198708-198808

main46420-36301iRU85,WU9#..LHD198708-198808

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-25026iRU85,WU9#,YU6#,71,81198708-198808

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iYU81;RU85,YU6#,71..ARL,GEN198708-198808

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iYU81..SA;RU85..GEN198708-198808

main90501-14021iYU6#,71,81..ARL,GEN198708-198808

46420PSPACER, PARKING BRAKE

main90560-08002iYU81;RU85,YU6#,71..ARL,GEN198708-198808

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iYU81;RU85,YU6#,71..ARL,GEN198708-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-36011iYU62,71,81..ARL,GEN198709-198808

main46430-36021iYU63198709-198808

main46430-36081iYU81..SA198709-198808

main46430-36091iRU85..GEN198709-198808

main46430-36140iWU90..ARL198708-198808

main46430-36150iWU9#..SA198708-198808

main46430-36160iRU85..SA;WU9#..GEN198708-198808

46481CONNECTOR, PARKING CABLE

main46481-36012iRU85,WU9#,YU6#,71,81198708-198801

9017908123

main90179-08123

9046108225

main90461-08225

9046808001

main90468-08001

9165140814

main91651-40814

9165140820

main91651-40820

9418041000

main94180-41000

9538102520

main95381-02520

34 parts on this diagram · 6 diagrams in section
