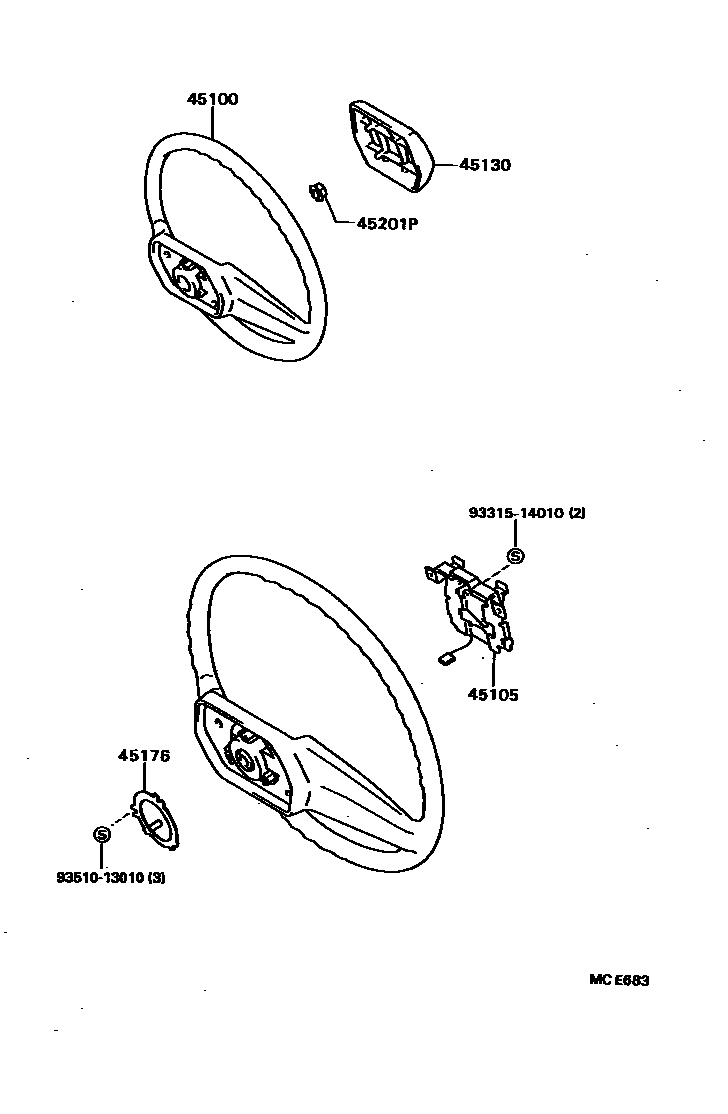

STEERING WHEEL

0001 1 0002 12-SPOKE URETHANE 0003 1

45100WHEEL ASSY, STEERING

main45100-36090iWU9#..GEN,SA198708-198808

sub45100-36091

main45100-36110-06iWU90..ARL;YU81..GEN;RU85,YU6#,71198708-198808

2SPOKE,POLYPROPYLENE,BROWN,TRIM4#

sub45100-36110

main45100-36110-06iWU9#..GEN198708-198808

2SPOKE,POLYPROPYLENE,W(2-SPOKE),BROWN,TRIM4#

sub45100-36110

main45100-36120-06iRU85,WU9#,YU6#,71,81..ARL,GEN198708-198808

W(2-SPOKE URETHANE),BROWN,TRIM4#

sub45100-36120

main45100-36120-06iYU81..SA198708-198711

BROWN,TRIM4#

sub45100-36120

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-36010iWU9#..GEN198708-198808

45130BUTTON ASSY, HORN

main45130-36070iWU9#..GEN,SA198708-198808

main45130-36100-06iWU90..ARL;RU85,YU6#,71,81198708-198808

BROWN,TRIM4#

sub45130-36100

sub45130-36090

45176RING, HORN CONTACT

main45176-36010iWU9#..GEN198708-198808

45201PNUT, STEERING WHEEL SET

main90179-12086iRU85,WU9#,YU6#,71,81198708-198808

9331514010

main93315-14010

9351013010

main93510-13010

7 parts on this diagram · 3 diagrams in section
