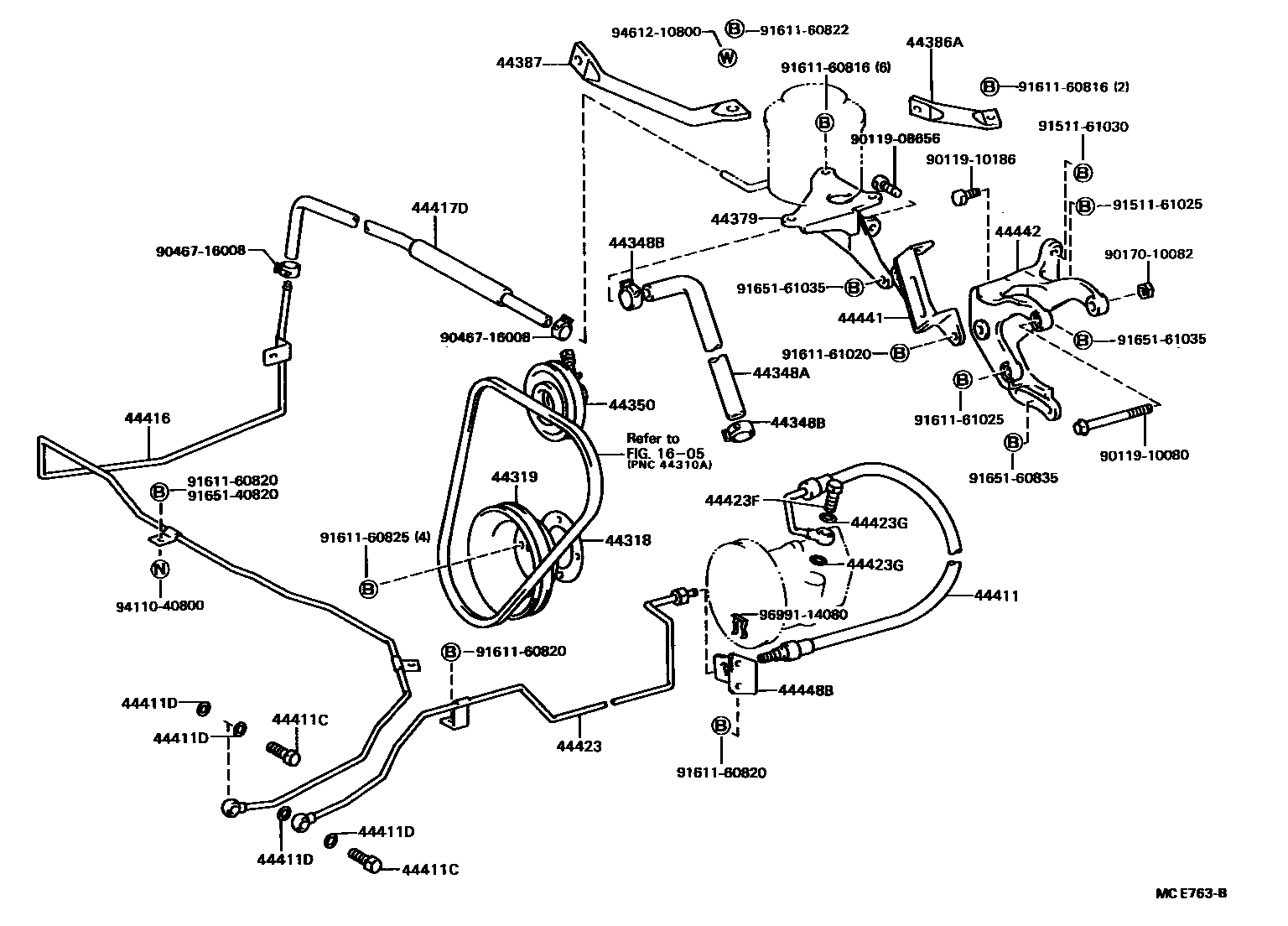

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main44318-36010iRU85..GEN198708-198808

44319PULLEY, VANE PUMP DRIVE

main13477-38010iRU85..GEN198708-198808

main44319-28013iYU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36080iWU90..ARL198708-198807

sub44348-36081

main44348-36081iWU90..ARL198808-198808

main44348-36120iRU85..GEN198708-198808

sub44348-36180

main44348-36130iYU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198807

sub44348-36131

main44348-36131iYU6#,81..(L1,L2,T3)..(ARL,GEN)198808-198808

main44348-36180iRU85..GEN198808-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iRU85,WU9#..GEN198708-198808

main90467-21005iYU6#,81..(L1,L2,T3)..(ARL,GEN)198808-198808

sub90467-21010

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main44350-36021iRU85..GEN198708-198808

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36100iWU90..ARL198708-198808

main44379-36111iYU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main44379-36130iRU85..GEN198708-198808

44386ASUPPORT, OIL RESERVOIR

main44386-36070iWU90..ARL198708-198808

main44386-36080iRU85..GEN198708-198808

44387SUPPORT, OIL RESERVOIR, NO.2

main44387-36010iRU85..GEN198708-198808

44411HOSE, PRESSURE FEED

main44411-36130iRU85..GEN198708-198808

main44411-36151iWU9#..LHD198708-198808

sub44411-36152

main44411-36200iYU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main44411-36280iWU90..ARL198708-198808

sub44411-36440

sub44413-36090

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-14003iWU90..ARL198708-198808

W(POWER STEERING)

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-14235iWU90..ARL198708-198808

W(POWER STEERING)

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36130iYU62,81..RHD..(ARL,GEN)198708-198808

main44416-36180iWU90..ARL198708-198808

main44416-36190iWU9#..LHD198708-198808

main44416-36200iRU85..GEN198708-198808

44417TUBE, RETURN, NO.2

main44417-36070iWU90..ARL198708-198808

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18131iWU90..ARL198708-198808

main90447-18024iRU85..GEN198708-198808

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36150iWU90..ARL198708-198808

main44423-36170iRU85..GEN198708-198808

44423FBOLT, UNION

main90401-14003iWU90..ARL198708-198808

main90401-16004iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

sub90401-16027

44423GGASKET, UNION BOLT

main90430-14235iWU90..ARL198708-198808

T=1.0,OD=20

main90430-16168iWU90..ARL198708-198808

T=1.6,OD=22

44441BRACKET, PUMP, FRONT

main44441-36080iRU85..GEN198708-198808

44442BRACKET, PUMP, REAR

main44442-36080iRU85..GEN198708-198808

44448BBRACKET, HOSE SUPPORT, NO.2

main44448-36020iRU85..GEN198708-198808

9011908656

main90119-08656

9011910080

main90119-10080

9011910186

main90119-10186

9017010082

main90170-10082

9046716008

main90467-16008

9151161025

main91511-61025

9151161030

main91511-61030

9161160816

main91611-60816

9161160820

main91611-60820

9161160822

main91611-60822

9161160825

main91611-60825

9161161020

main91611-61020

9161161025

main91611-61025

9165140820

main91651-40820

9165160835

main91651-60835

9165161035

main91651-61035

9411040800

main94110-40800

9461210800

main94612-10800

9699114080

main96991-14080

40 parts on this diagram · 5 diagrams in section
