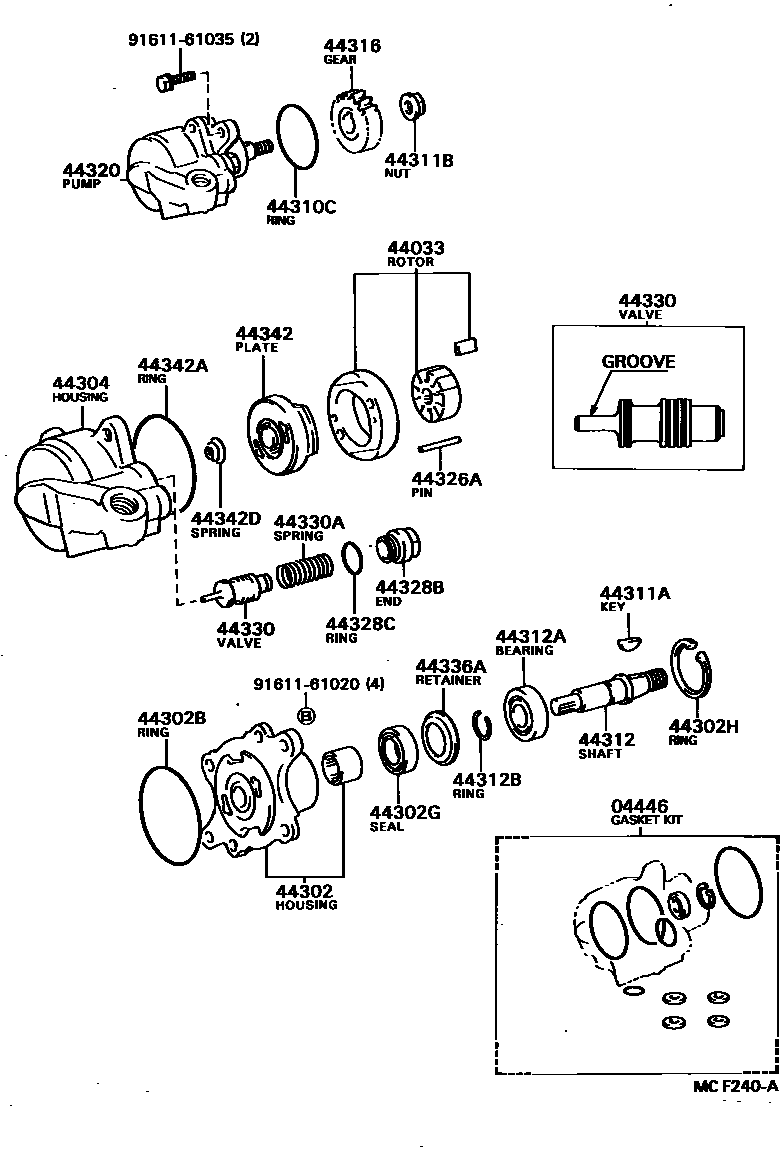

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36030iWU90..ARL198708-198808

sub04446-36070

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iRU85..GEN198708-198808

sub44033-36060

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36170iRU85..GEN198708-198808

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21004iWU90..ARL198708-198808

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iWU90..ARL198708-198808

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36170iRU85..GEN198708-198808

44310CRING, O(FOR VANE PUMP)

44311PULLEY, VANE PUMP

main44311-36030iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

44311AKEY, VANE PUMP PULLEY

main90029-18001iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main90029-18002iWU90..ARL198708-198808

44311BNUT(FOR VANE PUMP PULLEY)

main90029-07001iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main90179-14009iWU90..ARL198708-198808

44312SHAFT, VANE PUMP

main44312-36100iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main44312-89101iWU90..ARL198708-198808

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iWU90..ARL198708-198808

main90029-36004iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iWU90..ARL198708-198808

44316GEAR, VANE PUMP

main44316-89101iWU90..ARL198708-198808

subS4435-11110

44320PUMP ASSY, VANE

main44320-36150iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

main44320-89103iWU90..ARL198708-198808

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iWU90..ARL198708-198808

L=29.1

44328BEND, VANE PUMP HOUSING

main44328-89101iWU90..ARL198708-198808

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main96711-19020iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

44330VALVE ASSY, FLOW CONTROL

main44330-36080iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

TWO GROOVE

main44330-36090iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

ONE GROOVE

main44330-36100iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

NO GROOVE

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iWU90..ARL198708-198808

44336ARETAINER, VANE PUMP OIL SEAL

main44336-89101iWU90..ARL198708-198808

44342PLATE, VANE PUMP SIDE, REAR

main44342-89102iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iRU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)198708-198808

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iWU90..ARL198708-198808

9161161020

main91611-61020

9161161035

main91611-61035

27 parts on this diagram · 4 diagrams in section
