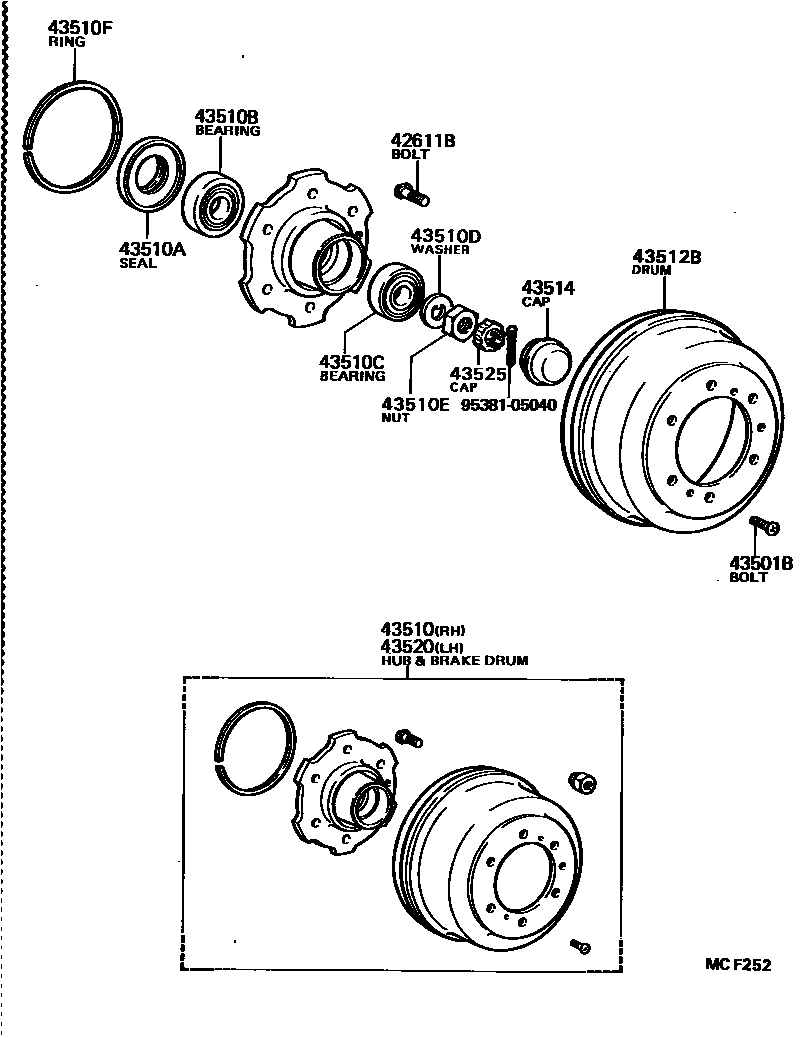

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024iYU62,71..ST198708-198808

RH

main90942-02025iYU62,71..ST198708-198808

LH

main90942-02045iRU85,YU6#,81..WT198708-198808

RH

main90942-02046iRU85,YU6#,81..WT198708-198808

LH

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iYU62,71..ST198708-198808

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36110iYU62,71..ST198708-198808

main43510-36131iRU85,YU6#,81..WT198708-198808

main43510-36140iWU9#198708-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001iWU9#198708-198808

main90311-68001iRU85,YU6#,71,81198708-198808

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iRU85,YU6#,71,81198708-198808

main90368-50001iWU9#198708-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iRU85,YU6#,71,81198708-198808

main90368-35001iWU9#198708-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iRU85,YU6#,71,81198708-198808

main90214-33001iWU9#198708-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iRU85,YU6#,71,81198708-198808

main90171-33001iWU9#198708-198808

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065iYU62,71..ST198708-198808

T=1.60

43512DISC, FRONT

main43512-36070iRU85,YU62,81..WT..(ARL,GEN)198708-198808

43512BDRUM, BRAKE

main43512-36060iYU62,71..ST198708-198808

main43512-36101iRU85,YU6#,81..WT198708-198808

main43512-36110iWU9#198708-198808

43514CAP, FRONT HUB GREASE

main43514-36030iRU85,YU6#,71,81198708-198808

main43514-37020iWU9#198708-198808

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36110iYU62,71..ST198708-198808

main43520-36131iRU85,YU6#,81..WT198708-198808

main43520-36140iWU9#198708-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iRU85,YU6#,71,81198708-198808

9538105040

main95381-05040

15 parts on this diagram · 4 diagrams in section
