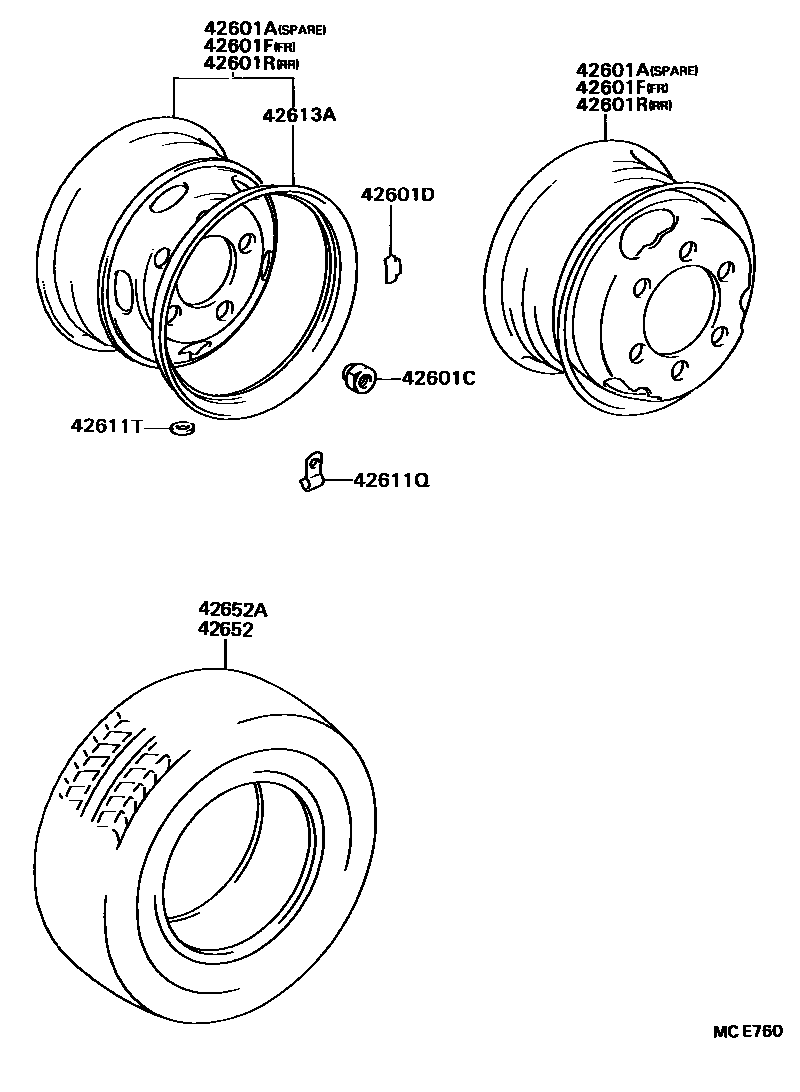

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
5.50F-15
AFJ 16X5.50F
AFJ 16X5.50F,HEAVY DUTY SPEC
6.00GS-15,GRAY,048 ,391 ,541 ,6A9 ,8E5 ,045 ,26H ,27H
sub42610-36290
5.50F-16,GRAY,048 ,391 ,541 ,6A9 ,8E5 ,045 ,26H ,27H
sub42610-36350
AFKG 16X5.50F
42601CNUT, HUB (FOR AXLE)
RR,RH
RR,LH
RR,RH
FR,RH
RR,LH
FR,LH
FR,RH
FR,LH
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G
30G
40G
50G
60G
70G
80G
90G
100G
110G
120G
130G
140G
150G
42601FWHEEL, DISC (FOR FRONT)
5.50F-15
AFJ 16X5.50F
AFJ 16X5.50F,HEAVY DUTY SPEC
5.50F-16,GRAY,048 ,391 ,541 ,6A9 ,8E5 ,045 ,26H ,27H
sub42610-36350
AFKG 16X5.50F
42601RWHEEL, DISC (FOR REAR)
AFJ 16X5.50F
AFJ 16X5.50F,HEAVY DUTY SPEC
6.00GS-15,GRAY,048 ,391 ,541 ,6A9 ,8E5 ,045 ,26H ,27H
sub42610-36290
5.50F-16,GRAY,048 ,391 ,541 ,6A9 ,8E5 ,045 ,26H ,27H
sub42610-36350
AFKG 16X5.50F
42611QCLIP (FOR TUBE)
42611TWASHER (FOR TUBE)
42613ARING, DISC WHEEL SIDE
TOPY,5.50FX15
TOPY,6.00GSX15
42652TIRE
7.50-15-12,LUG,CHINA SPEC
7.00R15-8,RIB
6.50-16-8,LUG
7.00-15-8,LUG,CHINA SPEC
6.50-16-10,LUG
6.50R16-10
7.50-16-12
7.50-16-10,RIB
7.50-16-12,RIB
7.00-16-12,LUG,HEAVY DUTY SPEC
7.00-16-12,LUG
7.00R15-12,RIB
7.00R16-10,RIB
7.50R16-10
6.50-16-8,LUG
6.50-16-10
7.00-15-6,RIB
7.00-16-12,RIB
7.50-15-10,RIB
7.50-15-12,RIB
7.50-15-14,RIB
7.50-16-12,LUG
7.00-15-8,RIB
6.50-16-8,RIB
6.50-16-10,RIB
7.00-16-10,RIB
7.00-16-10,RIB,HEAVY DUTY SPEC
7.00-16-12,RIB
7.00-16-12,RIB,HEAVY DUTY SPEC
6.50-16-8,SNOW
6.50-16-10,SNOW
42652ATIRE (FOR SPARE)
7.50-15-12,LUG,HEAVY DUTY SPEC
6.50-16-8,LUG
6.50-16-10,LUG
6.50R16-10
7.50-16-12
7.50-16-10,RIB
7.50-16-12,RIB
7.00-16-12,LUG,HEAVY DUTY SPEC
7.00-16-12,LUG
7.00R15-12,RIB
7.00R16-10,RIB
7.50R16-10
6.50-16-8,LUG
6.50-16-10
6.50-16-10,HEAVY DUTY SPEC
7.00-16-12,RIB
7.50-15-10,RIB
7.50-15-12,RIB
7.50-15-14,RIB
7.50-16-12,LUG
6.50-16-8,RIB
6.50-16-10,RIB
7.00-16-10,RIB,HEAVY DUTY SPEC
7.00-16-10,RIB
7.00-16-12,RIB
7.00-16-12,RIB,HEAVY DUTY SPEC
6.50-16-8,SNOW
6.50-16-10,SNOW
10 parts on this diagram · 1 diagram in section
