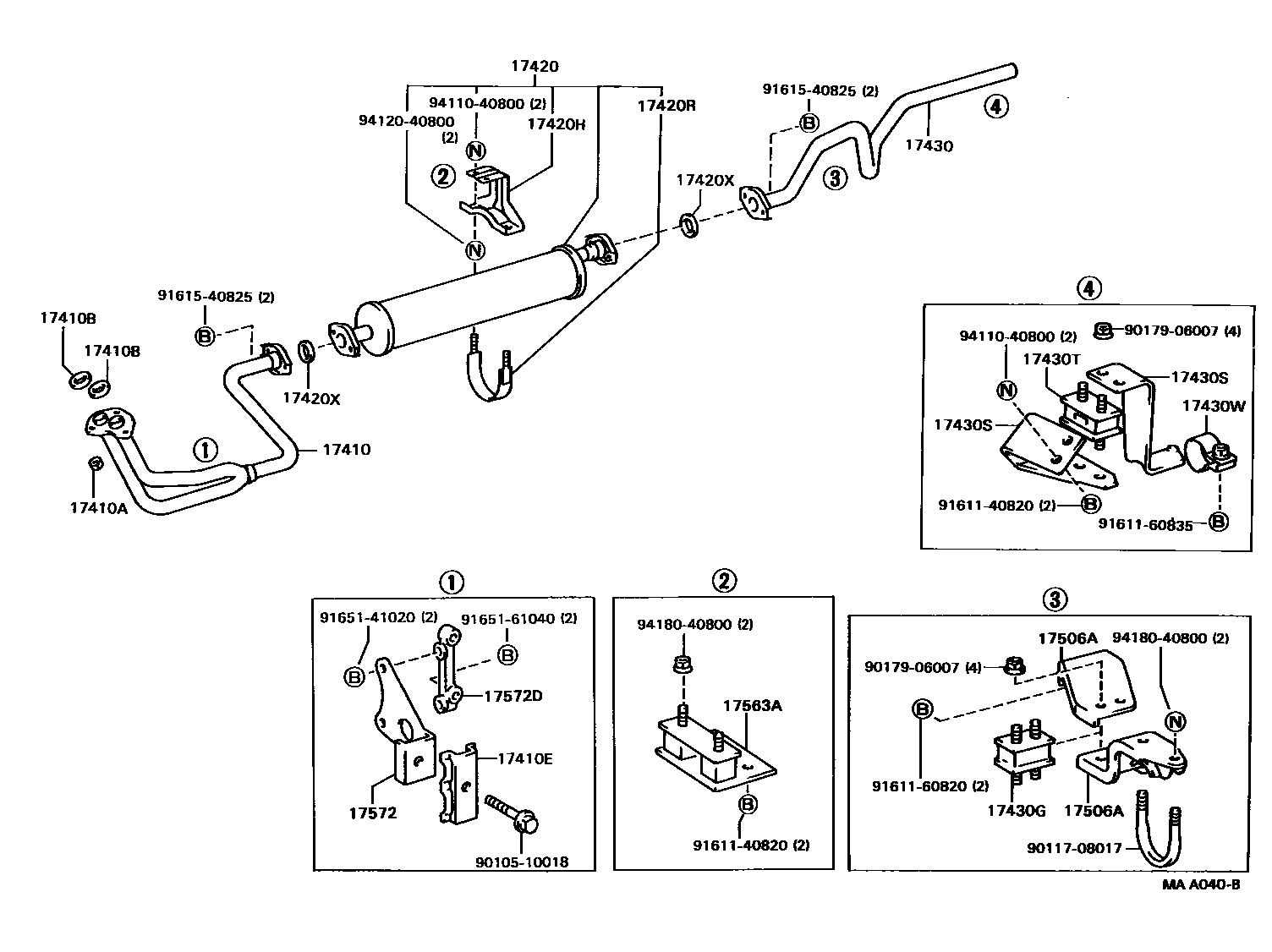

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-35050i22R..RU85198708-198808

main17401-78020i1W..WU90..ARL198708-198808

sub17401-78021

main17401-78030i1W..WU9#..GEN,SA198708-198808

sub17401-78021

main17410-73090i4Y..YU62,71,81198708-198808

sub17410-73091

main17410-73100i4Y..YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

sub17410-73091

main17410-73110i4Y..YU63198708-198808

sub17410-73111

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i22R,1W,4Y..RU85,WU9#,YU6#,71,81198708-198808

17410BGASKET, EXHAUST PIPE

main90917-06001i22R,4Y..RU85,YU6#,71,81198708-198808

sub90917-06038

main90917-06005i1W..WU9#198708-198808

sub90917-06042

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17589-27010i22R,4Y..RU85,YU6#,71,81198708-198808

17420PIPE ASSY, EXHAUST, CENTER

main17403-56290i1W..WU90..GEN198708-198808

sub17403-56280

main17403-56310i1W..WU95..GEN198708-198808

sub17403-56300

main17420-36011i1W..WU90..SA198708-198808

main17420-36021i1W..WU95..SA198708-198808

main17420-56161i22R..RU85198708-198808

main17420-56191i1W..WU90..ARL198708-198808

main17420-58080i4Y..YU63;4Y..YU62,71..ST198708-198808

main17420-58110i4Y..YU62..WT198708-198808

main17420-73030i4Y..YU81198708-198808

main17420-73040i4Y..YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER

main17576-56020i4Y..YU6#,71,81198708-198808

main17576-56040i22R,1W..RU85,WU9#198708-198808

17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER

main17504-56010i4Y..YU6#,71,81198708-198808

main17504-56020i22R,1W..RU85,WU9#198708-198808

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06008i22R..RU85198708-198808

CENTER TO TAIL

sub90917-06047

main90917-06012i22R..RU85198708-198808

FRONT TO CENTER

sub90917-06045

17430PIPE ASSY, EXHAUST, TAIL

main17405-58210i22R,1W..RU85,WU9#..GEN,SA198708-198808

main17430-58060i4Y..YU71198708-198808

main17430-58070i4Y..YU62..ST198708-198808

main17430-58080i4Y..YU62..WT198708-198808

main17430-58120i4Y..YU63198708-198808

main17430-58130i4Y..YU81198708-198808

main17430-58161i1W..WU90..ARL198708-198808

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main17567-61030i4Y..YU81;1W..WU90..ARL;4Y..YU62,71..ST198708-198808

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17561-47010i22R,1W..RU85,WU9#..GEN,SA198708-198808

PIPE SIDE

main17561-56010i4Y..YU63198708-198808

PIPE SIDE

main17574-58040i4Y..YU62..WT;22R,1W,4Y..RU85,WU9#,YU81..GEN,SA198708-198808

BODY SIDE

main17574-58050i4Y..YU62,71..ST198708-198808

BODY SIDE

main17574-58090i1W..WU90..ARL198708-198808

BODY SIDE

main17575-73040i4Y..YU81198708-198808

BODY SIDE

main17575-73050i4Y..YU62,71..ST198708-198808

BODY SIDE

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030i22R,1W,4Y..RU85,WU9#,YU6#,71,81198708-198808

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-32005i4Y..YU6#,71,81198708-198808

main90461-32007i22R,1W..RU85,WU9#..GEN,SA198708-198808

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-73050i4Y..YU81;4Y..YU62,71..ST198708-198808

17563ASUPPORT, EXHAUST PIPE, NO.3

main17563-58010i4Y..YU6#,71,81198708-198808

sub17563-58041

main17567-58010i22R,1W..RU85,WU9#198708-198808

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-58060i1W..WU9#..ARL,SA198708-198808

main17571-58080i1W..WU9#..GEN198708-198808

main17571-73090i22R,4Y..RU85,YU6#,71,81198708-198808

17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17579-73010i22R,4Y..RU85,YU6#,71,81198708-198808

9010510018

main90105-10018

9011708017

main90117-08017

9017906007

main90179-06007

9161140820

main91611-40820

9161160820

main91611-60820

9161160835

main91611-60835

9161540825

main91615-40825

9165141020

main91651-41020

9165161040

main91651-61040

9411040800

main94110-40800

9412040800

main94120-40800

9418040800

main94180-40800

29 parts on this diagram · 7 diagrams in section
