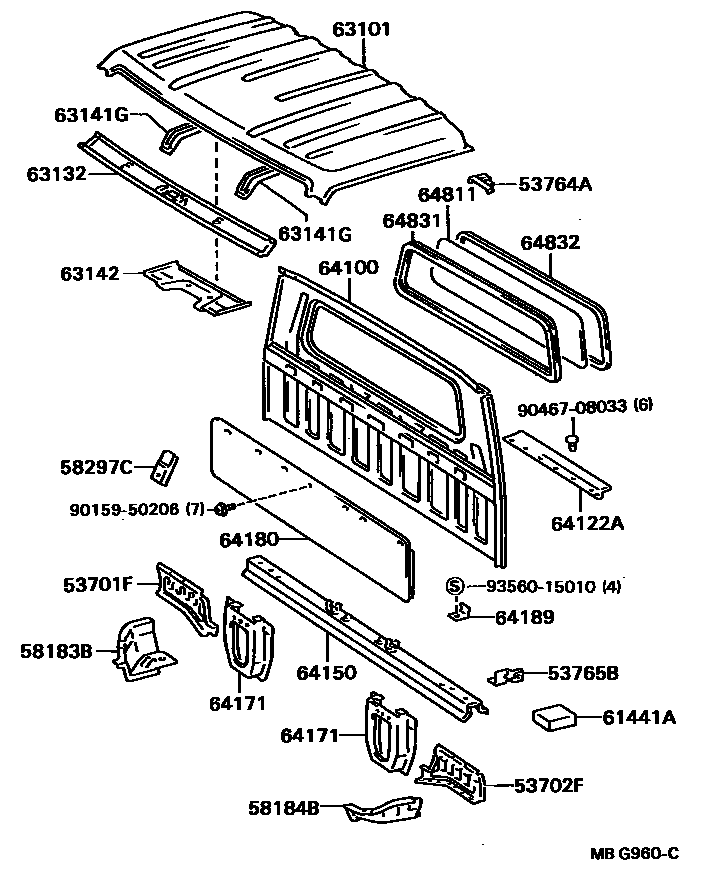

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701FAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53701-95407iYU6#,8#..L1,L2,T1,T3198409-198708

main53703-92604iYU7#;YU60,62..TW1198409-198708

main53717-95410iRU75,85,WU9#198409-198708

53702FAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53702-95412iYU6#,8#..L1,L2,T1,T3198409-198708

main53704-92604iYU7#;YU60,62..TW1198409-198708

main53718-95411iRU75,85,WU9#198409-198708

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-95400iYU60,62,8#..T3198409-198708

main53764-95403iRU75,85,WU9#198409-198508

main53764-95404iRU75,85,WU9#198508-198708

53765BBRACKET, AIR CLEANER INLET, NO.2

main53067-95400iYU60,62,8#..T3198409-198708

main53765-95401iRU75,85,WU9#198409-198508

main53765-95402iRU75,85,WU9#198508-198708

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95402iYU6#,7#,8#198409-198708

sub58183-95405

main58183-95403iRU75,85,WU9#,YU6#,8#..L1,L2,T1,T3198409-198708

W/TILT CAB

sub58183-95404

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95401iYU6#,7#,8#198409-198708

sub58184-95404

main58184-95402iRU75,85,WU9#,YU6#,8#..L1,L2,T1,T3198409-198708

W/TILT CAB

sub58184-95403

58297CREINFORCEMENT, SEAT BELT ANCHOR

main58297-95401iRU75,85,WU9#,YU6#,8#..L1,L2,T1,T3198409-198708

61441ASILENCER, REAR PILLAR

main61441-95010iRU75,85,WU9#198409-198708

sub61824-12090

63101PANEL SUB-ASSY, ROOF

main63111-95409iYU6#,8#..L1,L2,T1,T3198409-198708

sub63111-37010

sub63141-37010

main63111-95410iYU6#,8#..(L1,L2,T1,T3)..(ARL,GEN,SA)198409-198708

W/*RV

sub63111-37020

sub63141-37010

main63111-95411iRU75,85,WU9#198409-198708

main63111-95412iRU75,85,WU9#198409-198708

W/*RV

main63115-92603iYU60,62..TW1198409-198708

main63115-92604iYU60,62..TW1198409-198708

W/*RV

63132PANEL, WINDSHIELD HEADER, INNER

main63102-95401iRU75,85,WU9#198603-198708

main63102-95401iRU75,85,WU9#198409-198603

W/SUN VISOR=ASSISTANT

main63102-95402iWU9#..RHD..(GEN,SA)198409-198603

sub63102-95401

sub90950-06047

main63132-95417iYU60,80..RHD..(GEN,SA)198409-198603

sub63132-95418

sub90950-06047

main63132-95418iYU6#,70,80..DMP,TR,V198409-198603

W/SUN VISOR=ASSISTANT

sub63132-37010

main63132-95418iYU6#,7#,8#..DMP,TR,V198603-198708

sub63132-37010

main63132-95419iYU60,80..RHD..(GEN,SA)198409-198603

W/*RV

sub63132-95420

sub90950-06047

main63132-95420iYU6#,70,80..BUS,DMP,TR198409-198603

W/SUN VISOR=ASSISTANT & *RV

sub63132-37010

main63132-95420iYU6#,7#,8#..BUS,DMP,TR198603-198708

W/*RV

sub63132-37010

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-95403iRU75,85,WU9#198409-198708

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iYU6#,8#..(L1,L2,T1,T3)..(ARL,GEN,SA)198409-198708

64100PANEL ASSY, BACK, OUTER

main64100-95433iYU60,62,8#..RHD198409-198708

W/HEADREST=ASSISTANT

main64100-95434iYU6#,8#..LHD..(L1,L2,T1,T3)198409-198708

W/HEADREST=ASSISTANT

main64100-95435iYU6#,8#..LHD..(L1,L2,T1,T3)..GEN198409-198708

main64100-95436iYU60,62,8#..RHD..(GEN,SA)198409-198708

main64100-95437iRU85,WU9#..RHD198409-198708

sub64100-3V020

main64100-95438iRU75,85,WU9#..LHD198409-198708

sub64100-3V030

main64101-95402iYU60,62..TW1198409-198708

64122ABAFFLE, DUST REAR BODY

main64122-95403iYU60..TW1198409-198509

main64122-95405iYU60,62,8#..T3198409-198708

main64122-95406iRU75,85,WU9#198409-198708

main64122-95407iYU60..T1198409-198608

main64122-95A06iYU60,62..TW1198509-198708

64150FRAME ASSY, BACK

main64107-92604iYU7#..V198508-198708

main64107-92606iYU7#..BUS;YU60,62..TW1198508-198708

main64107-92610iYU70..BUS;YU60..TW1198409-198508

main64107-92613iYU70..BUS;YU60..TW1198508-198510

*SAA & OMAN SPEC

main64107-92614iYU7#..V198510-198708

*SAA & *47

main64107-92614iYU70..V198508-198510

OMAN SPEC

main64107-92616iYU70..V198409-198508

main64107-92618iYU70..BUS;YU60..TW1198409-198508

*SAA & OMAN SPEC

main64107-92620iYU70..V198409-198508

OMAN SPEC

main64107-95411iYU60,62,8#..RHD198409-198708

main64107-95412iYU60,62,8#..LHD..(T1,T3)198409-198708

main64107-95414iRU85,WU9#..RHD..(GEN,SA)198409-198708

main64107-95415iRU75,85,WU9#..LHD198409-198708

main64107-95417iWU9#..LHD..IV3198702-198708

TAIWAN SPEC

main64107-95418iWU90..ARL198605-198708

64171BRACKET, CAB REAR MOUNTING

main64025-95400iRU75,85,WU9#198409-198708

RH

sub64025-37030

main64025-95400iRU75,85,WU9#198409-198708

W/TILT CAB

sub64025-37030

main64026-95400iRU75,85,WU9#198409-198708

LH

main64171-95408iYU6#,8#..(L1,L2,T1,T3)..(GEN,SA)198409-198708

main64171-95410iYU7#;YU60,62..TW1198409-198708

64180SILENCER ASSY, BACK PANEL

main64190-95400iYU60,62..ARL,EUR198409-198708

main64190-95400iYU81..LHD..IV3198608-198708

SWITZERLAND SPAC

main64190-95401iWU90..ARL198409-198708

64189CLAMP, BACK PANEL SILENCER

main64189-95400iWU90,YU60,62..ARL,EUR198409-198708

main64189-95400iYU81..LHD..IV3198608-198708

SWITZERLAND SPEC

64811GLASS, BACK WINDOW

main64811-95409iYU6#,8#..L1,L2,T1,T3198409-198708

*TEM,T=3.5,*TEM,T=3.5

main64811-95410iRU75,85,WU9#198409-198708

*TEM,T=3.5,*TEM,T=3.5

sub64811-37080

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iYU6#,8#..L1,L2,T1,T3198409-198708

main64831-95016iRU75,85,WU9#198409-198708

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iYU6#,8#..L1,L2,T1,T3198409-198708

sub64832-95013

main64832-95013iRU75,85,WU9#198409-198708

sub64832-37040

9015950206

main90159-50206

9046708033

main90467-08033

9356015010

main93560-15010

24 parts on this diagram · 3 diagrams in section
